Adapters for system mount Ø 19.5mm

for incorporation into the multicube™ system

Schäfter+Kirchhoff offers numerous adapters and flanges suitable for incorporation into the multicube™ system. All standard adapters and flanges have Ø 19.5 mm system mount with a 19.5 mm tightly fitting cylinder. Some can be mounted using flange mounting.

Adapter 12AM19.5

W0.8-19.5

Adapter with external RMS thread (Whitworth thread W 0,8" × 1/36") (for e.g. a microscope lens) to system mount Ø 19.5 mm

System Mount Ø 19.5 mm
RMS, thread, external
Clear aperture Ø 15 mm

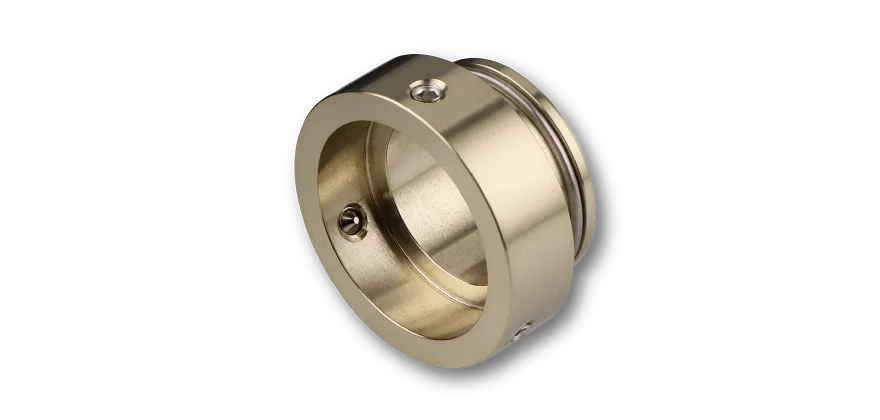

AC19.5/19.5-S

The adapter AC19.5/19.5-S is an extension for the system mount Ø 19.5 mm.

System mount Ø 19.5 mm
Fitting bore for system mount Ø 19.5 mm
Clear aperture Ø 15.3 mm
Nickel silver

SM1-IG-AC19.5

With the adapter SM1-IG-AC19.5 you can adapt mounted optics with SM1 external thread to, e.g. fiber collimators of series 60FC-L or 60FC-T with an outer diameter Ø 25 mm. The optical axis is inclined by 3 °.

SM1 thread, internal, inclined 3°
System mount Ø 19.5 mm
Clear aperture

8AC19.5-19.5

Adapter to integrate attachment optics with system mount Ø 8 mm to the Schäfter+Kirchhoff multicube™ system and to fiber collimators series 60FC-L and 60FC-T with an outer diameter Ø 25 mm.

Fitting bore Ø 8 mm for components with system mount Ø 8 mm
System mount Ø 19.5 mm
Front end for system mount Ø 19.5 mm
Nickel silver

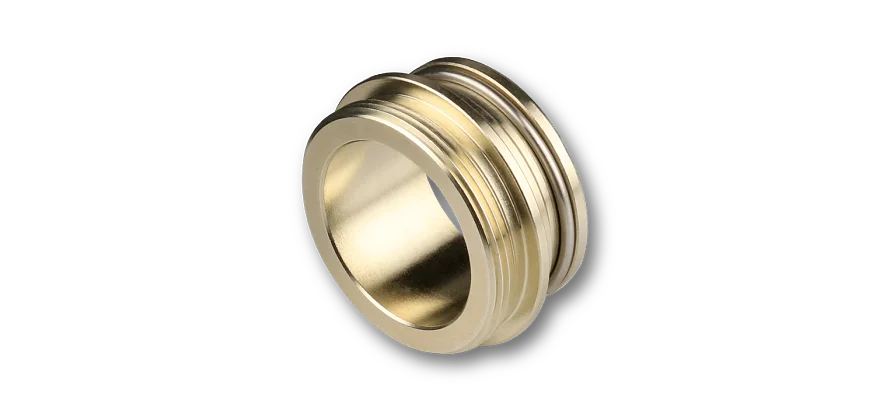

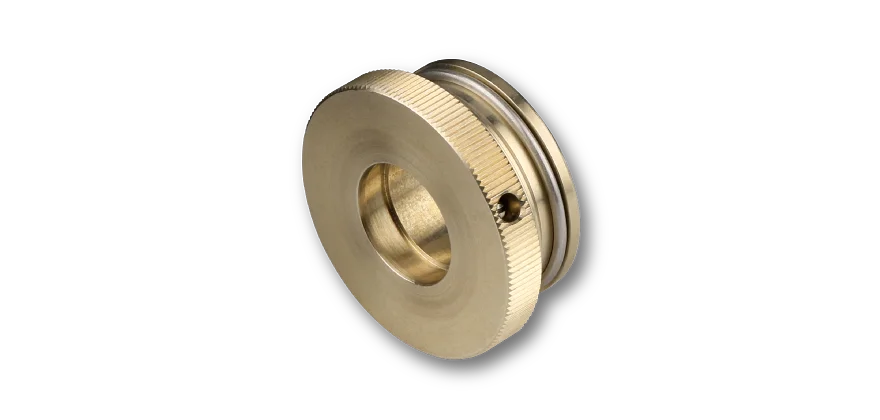

12AC19.5

The adapter 12AC19.5 is an adapter from system mount Ø 19.5 mm to a fitting bore Ø 12 mm.

System mount Ø 19.5 mm
Fitting bore Ø 12 mm
Clear aperture Ø 12 mm
Nickel silver

10AC19.5

The adapter 10AC19.5 is an adapter from system mount Ø 19.5 mm to a fitting bore Ø 10 mm.

System mount Ø 19.5 mm
Fitting bore Ø 10 mm
Clear aperture Ø 10 mm
Nickel silver

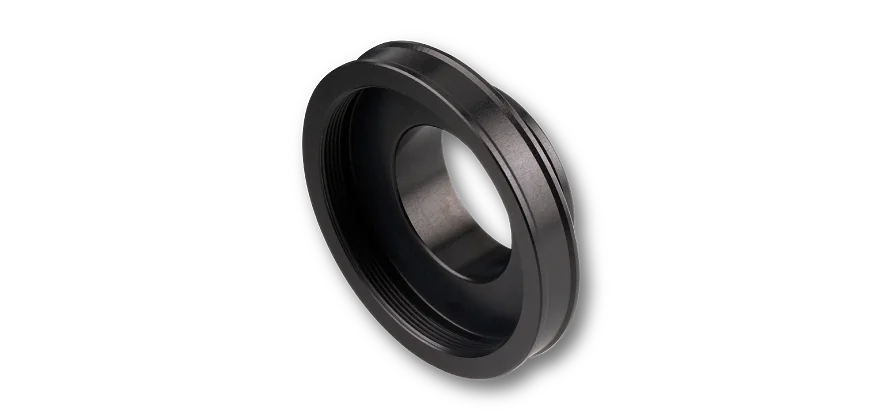

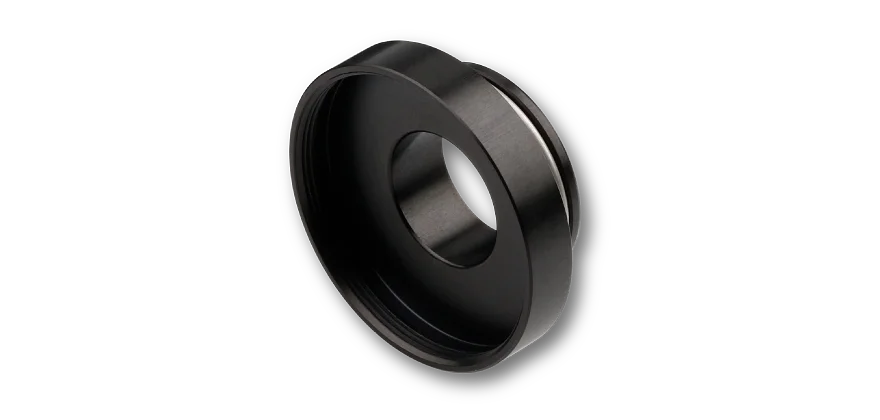

AC19.5-M27x0.5

The adapter AC19.5-M27x0.5 is an adapter from system mount Ø 19.5 mm to an internal thread M27x 0.5 mm. With this adapter you can attach the series 25 attachment optics to the fiber collimators series 60FC-L and 60FC-T with an outer diameter Ø 25 mm

System mount Ø 19.5 mm
Internal thread M27x 0.5 mm
Clear aperture Ø 12 mm
Black anodized aluminum

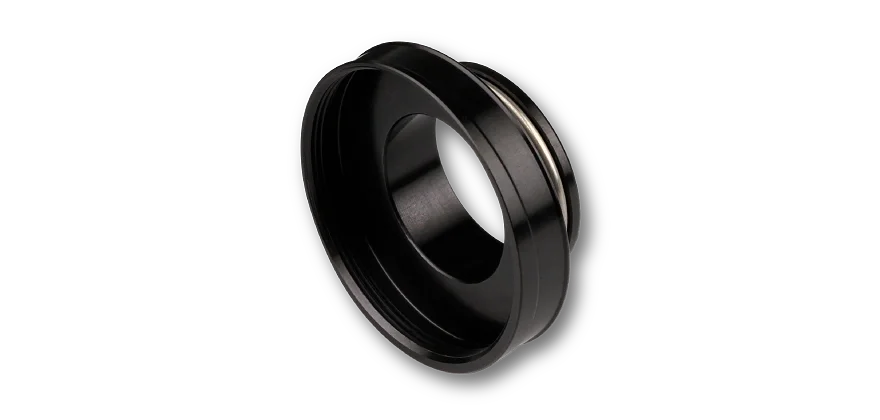

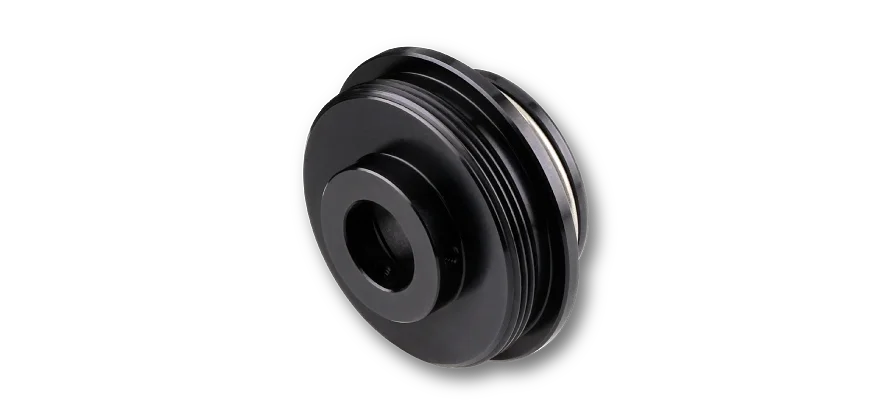

C-Mount-19.5AC

The adapter C-Mount-AC19.5 is an adapter from system mount Ø 19.5 mm to an external C-mount thread. With this adapter you can attach e.g. C-mount cameras to the multicube system

System mount Ø 19.5 mm
C-mount, external
Clear aperture Ø 14 mm
Black anodized aluminum

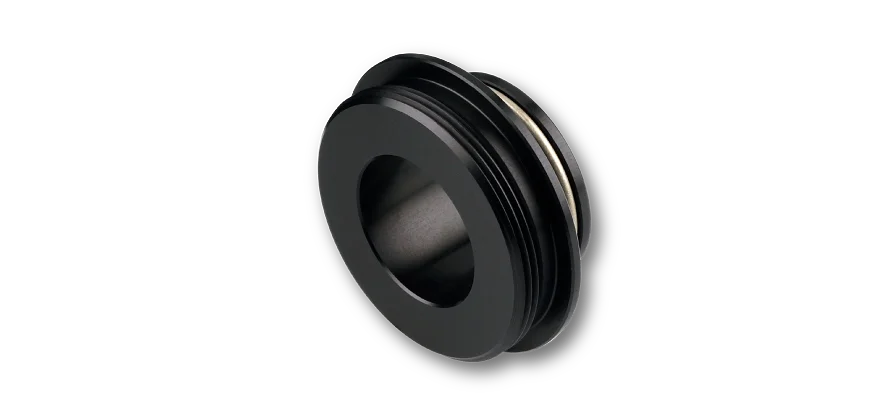

C-Mount-19.5AC-BL

The adapter C-Mount-AC19.5-BL is an adapter from system mount Ø 19.5 mm to an external C-mount thread. With this adapter you can attach e.g. C-mount cameras to the multicube system.

Additionally you can attach a series 5 attachment optics (with Ø 8 mm) such as an aperture.

System mount Ø 19.5 mm
C-mount, external
Additional fitting bore Ø 8 mm
Clear aperture Ø 8 mm
Black anodized aluminum

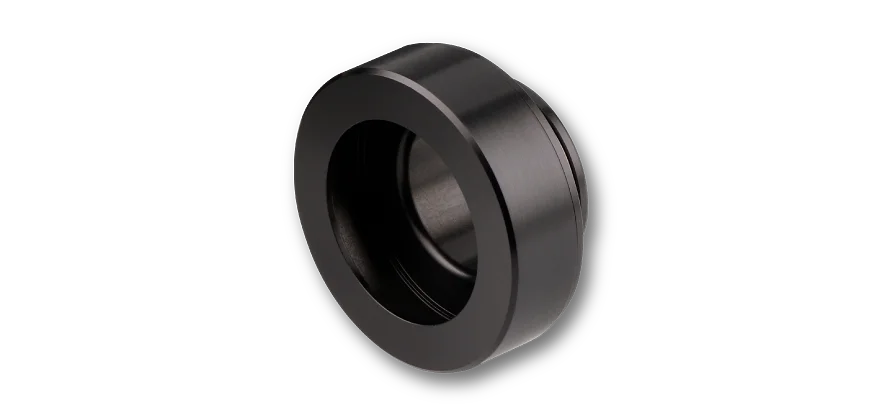

19.5AF25.4-S

The adapter 19.5AF25.4-S allows to attach Ø 25.4 mm or Ø 25 mm mounted optics to fiber collimators of series 60FC-L or 60FC-T with an outer diameter Ø 25 mm

System mount Ø 19.5 mm
Fitting bore Ø 25.4 mm that holds Ø 25.4 mm or Ø 25 mm mounted optics
Clear aperture Ø 15 mm
Black anodized aluminum

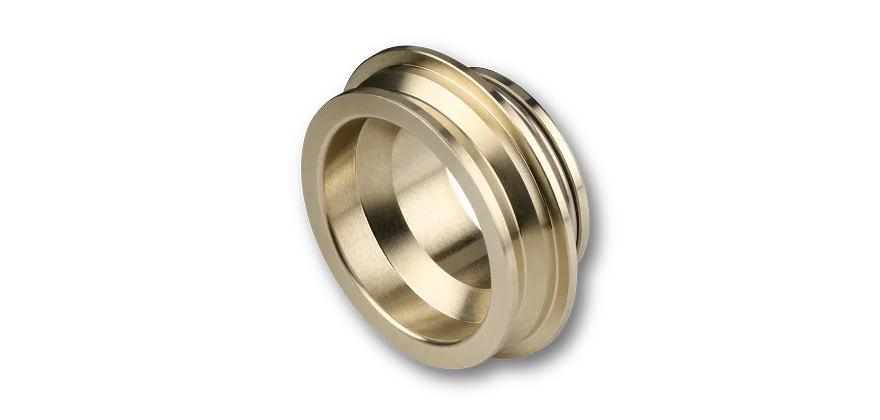

19.5AC-25

Adapter from system mount Ø 19.5 mm to system mount Ø 25 mm

System mount Ø 19.5 mm
System mount Ø 25 mm
Clear aperture Ø 15 mm
Nickel silver

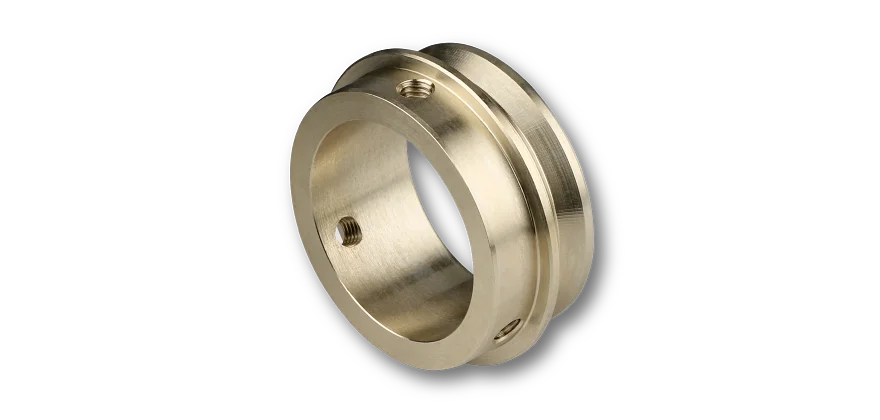

AM19.5/AC25

Adapter system mount Ø 25 mm for components with system mount Ø 19.5 mm

Fitting bore Ø 19.5 mm
System mount Ø 25 mm
Clear aperture Ø 19.5 mm
Nickel silver

W0.8-I-19.5

Adapter internal RMS thread (Whitworth thread W 0,8" × 1/36") to system mount Ø 19.5 mm, e.g. for microscope lenses

System Mount Ø 19.5 mm
RMS thread, internal
Clear aperture Ø 15 mm

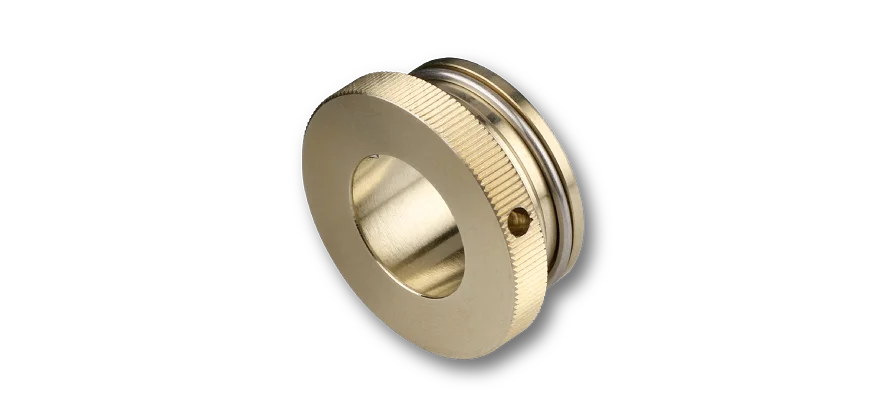

8AM-19.5

The adapter 8AM-19.5 is an adapter from system mount Ø 19.5 mm to a fitting bore Ø 8 mm.

System mount Ø 19.5 mm
Fitting bore Ø 8 mm for optics with system mount Ø 8 mm
Clear aperture Ø 8 mm
Nickel silver

SM1-IG-AC19.5-0

With the adapter SM1-IG-AC19.5-0 you can adapt mounted optics with SM1 external thread to, e.g. fiber collimators of series 60FC-L or 60FC-T with an outer diameter Ø 25 mm.

SM1 thread, internal
System mount Ø 19.5 mm
Clear aperture Ø 12 mm

If you need an adapter with an inclined coupling axis, please refer to SM1-IG-AC19.5.

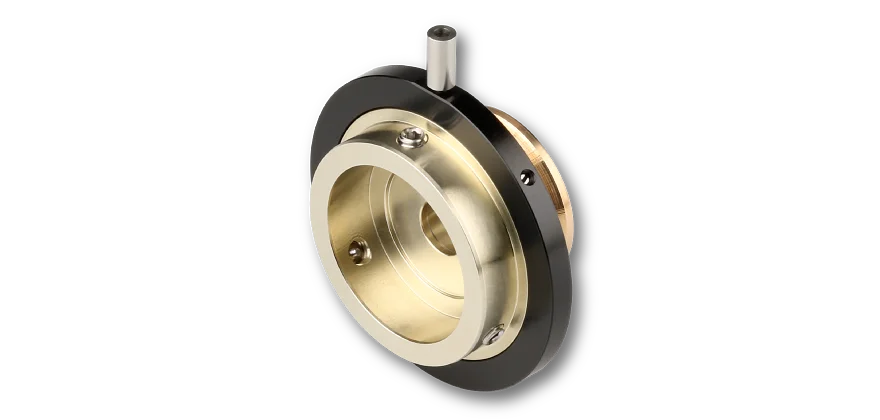

19.5AC-19.5-ROT

The rotary adapter 19.5AC-19.5-ROT is an adapter from system mount Ø 19.5 mm male to to system mount Ø 19.5 mm female. With this adapter you can attach e.g. a 60SMF laser beam coupler rotatably for an in an easy-to handle fine adjustment in order to adjust for the polarization axis of the fiber with respect to the polarization axis laser.

Rotary adjustable mount with self-locking tubular axis (0 - 360°)
Easy-to-handle fine adjustment
System mount Ø 19.5 mm male/female
Clear aperture Ø 5 mm
Lever for an easy and precise adjustment

48WP-M25.4

The rotary adapter type 48WP-M25.4 is designed for Ø 25.4 mm or Ø 25 mm mounted wave plates. It has a system mount Ø 19.5 mm male and is designed to be integrated into the multicube system.

Holds Ø 25.4 mm or Ø 25 mm mounted wave plates
Rotary adjustable mount with self-locking tubular axis (0 - 360°)
Easy-to-handle fine adjustment
System mount Ø 19.5 mm male
Clear aperture Ø 5 mm
Lever for an easy and precise adjustment

19.5AM25

Adapter for 60SMS Laser Beam Couplers

Outer diameter Ø 25/28 mm
Fitting bore Ø 19.5 mm: accepts system mount Ø 19.5 mm
Short version

19.5AM25-L

Adapter for 60SMS Laser Beam Couplers

Outer diameter Ø 25/28 mm
Fitting bore Ø 19.5 mm: accepts system mount Ø 19.5 mm
Long version e.g. to use with ananorphic beam shaping optics

12AM19.5

Adapter for fiber collimators type 60FC / 60FC-F with diameter Ø 12 mm. Indirect clamping of the collimators.
With system mount Ø 19.5 mm e.g. for integration into the multicube™ system.

System Mount Ø 19.5 mm
Fitting bore Ø 12 mm
Clear aperture Ø 19.5 mm

19.5AC19.5

Adapter for the Schäfter+Kirchhoff multicube™ system.
Both ends system mount Ø 19.5 mm
