19.5AC19.5

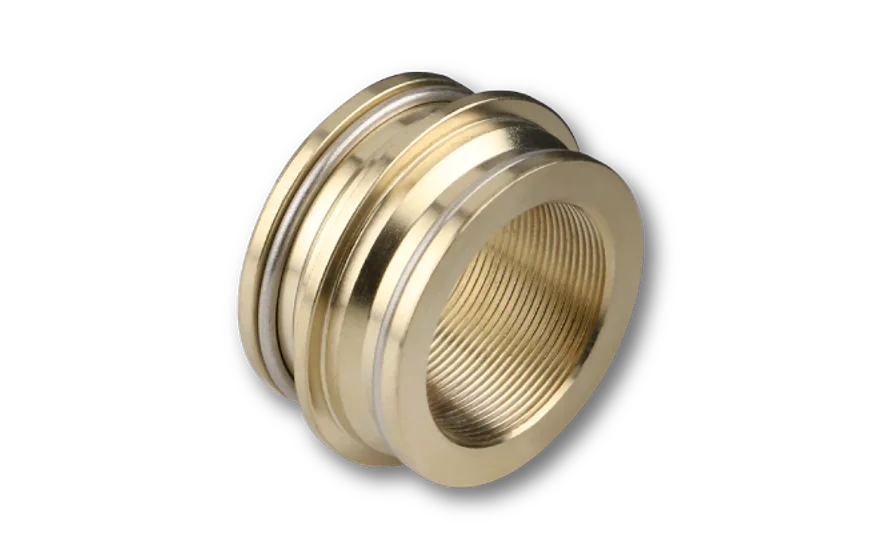

Adapter with system mount Ø 19.5 mm on both ends

19.5AC19.5
19.5AC19.5
19.5AC19.5
19.5AC19.5

Features

Adapter for the Schäfter+Kirchhoff multicube™ system.
Both ends system mount Ø 19.5 mm

Technical data

19.5AC19.5

Order Code
19.5AC19.5
Adapter
System mount
System mount

Ø 19.5 mm
Ø 19.5 mm

Steel ring
Steel ring
Clear aperture
Ø 14 mm
Material
Nickel silver / steel
Weight
13 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

19.5AC-19.5

Downloads

930730070200.pdf (Dimensional drawing)
930730070200.stp (STEP model)
