12AM19.5

Adapter Ø 12 mm to system mount Ø 19.5 mm

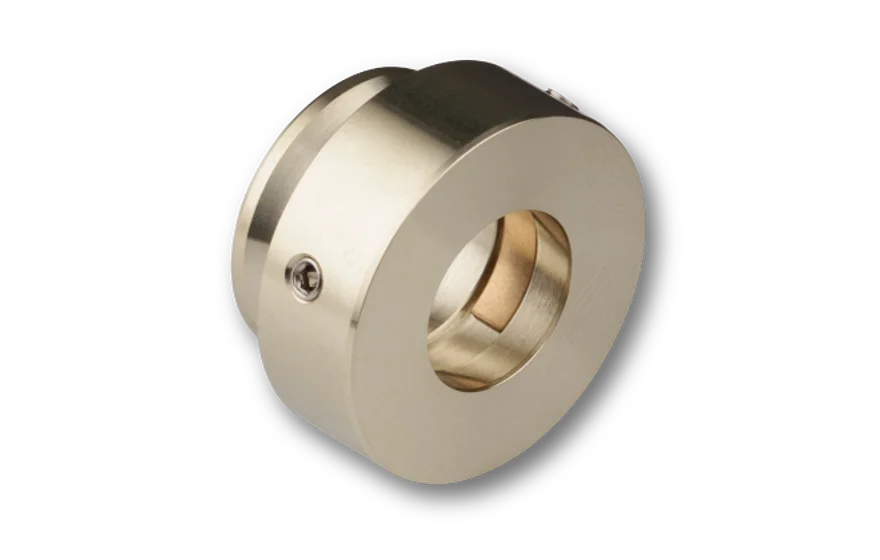

Adapter 12AM19.5

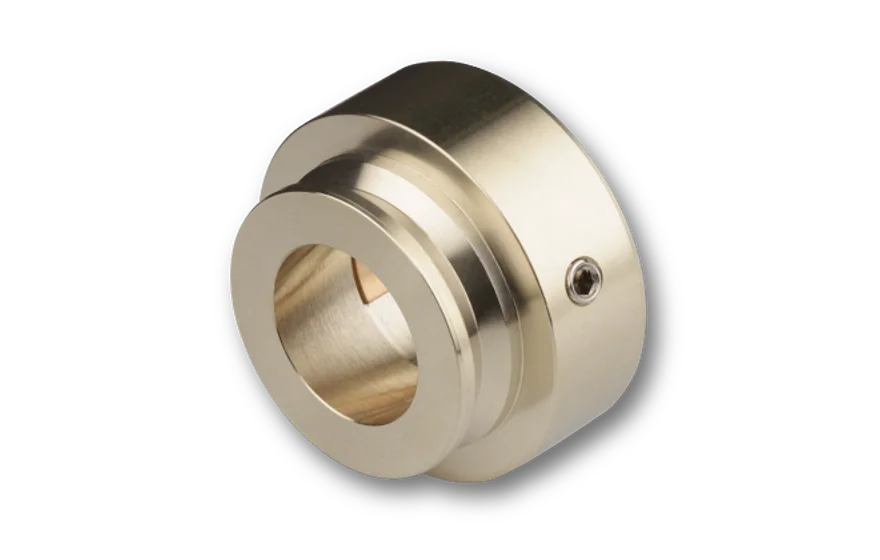

Adapter 12AM19.5

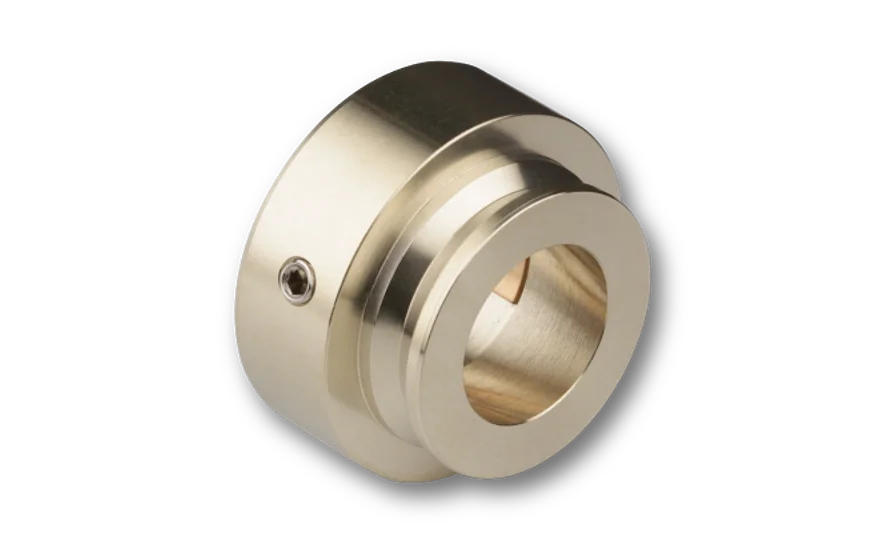

Adapter 12AM19.5

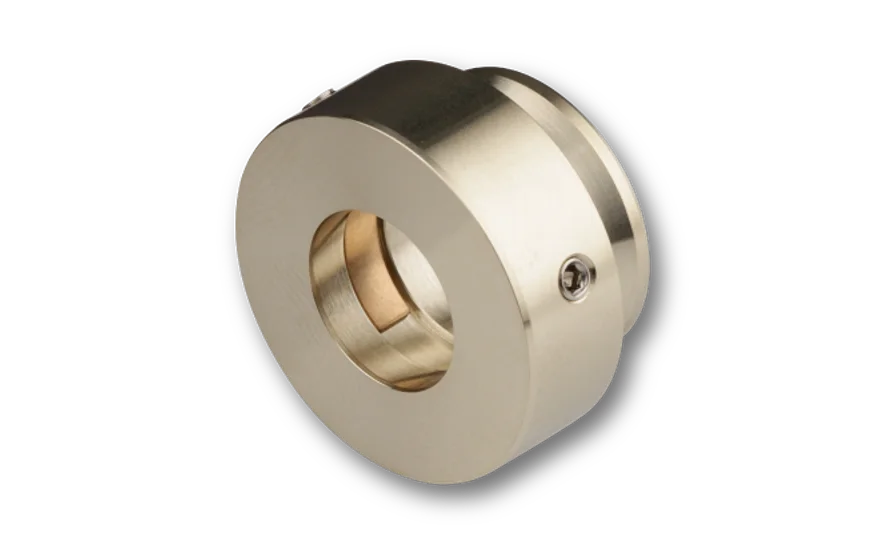

Adapter 12AM19.5
Adapter 12AM19.5
Adapter 12AM19.5
Adapter 12AM19.5
Adapter 12AM19.5

Features

Adapter for fiber collimators type 60FC / 60FC-F with diameter Ø 12 mm. Indirect clamping of the collimators.
With system mount Ø 19.5 mm e.g. for integration into the multicube™ system.
  • System Mount Ø 19.5 mm
  • Fitting bore Ø 12 mm
  • Clear aperture Ø 19.5 mm

Technical data

12AM19.5

Order Code
12AM19.5
Adapter
Fitting bore
System mount

Ø 12 mm
Ø 19.5 mm


Indirect
clamping


Clear aperture
Ø 12 mm
Material
Nickel silver
Weight
34 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

12AM19.5

Downloads

Dimensional drawing
930410830300.pdf (Dimensional drawing)
STEP model
930410830300.stp (STEP model)
STEP model
930410830300.stp (STEP model, for registered users only)
