Features

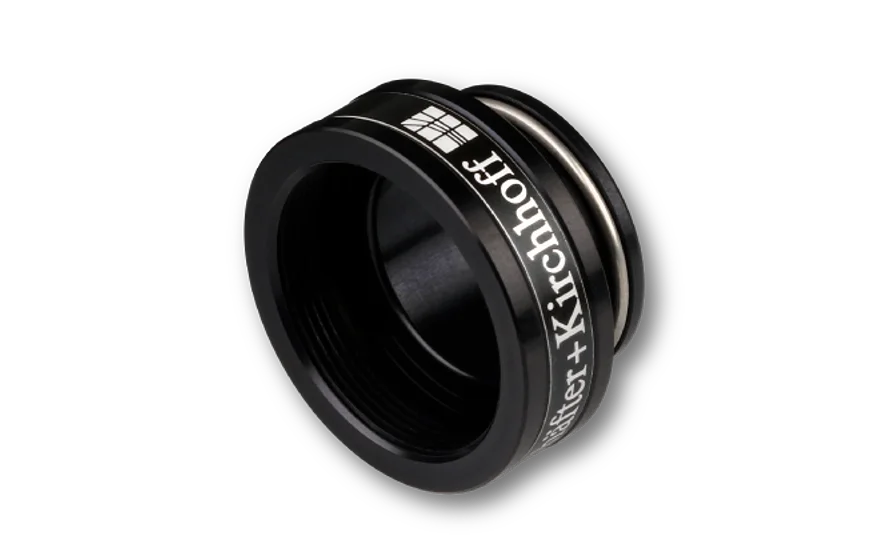

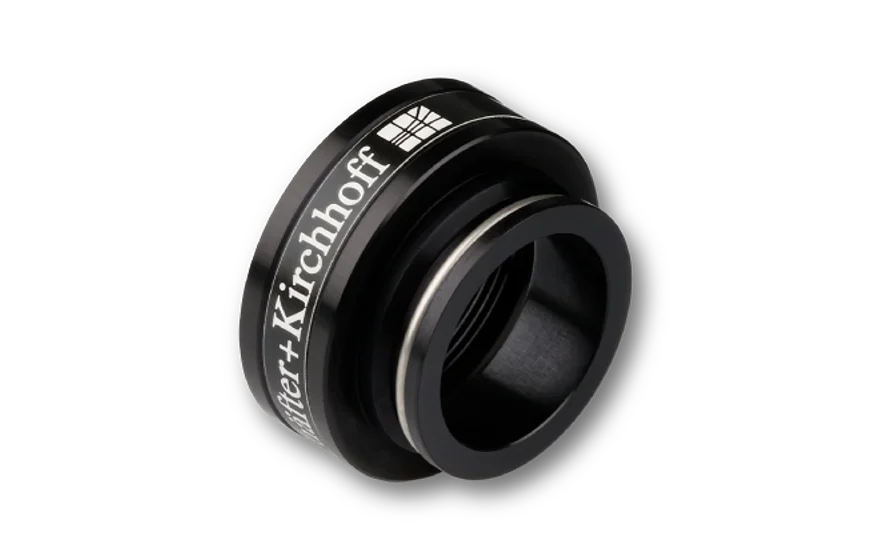

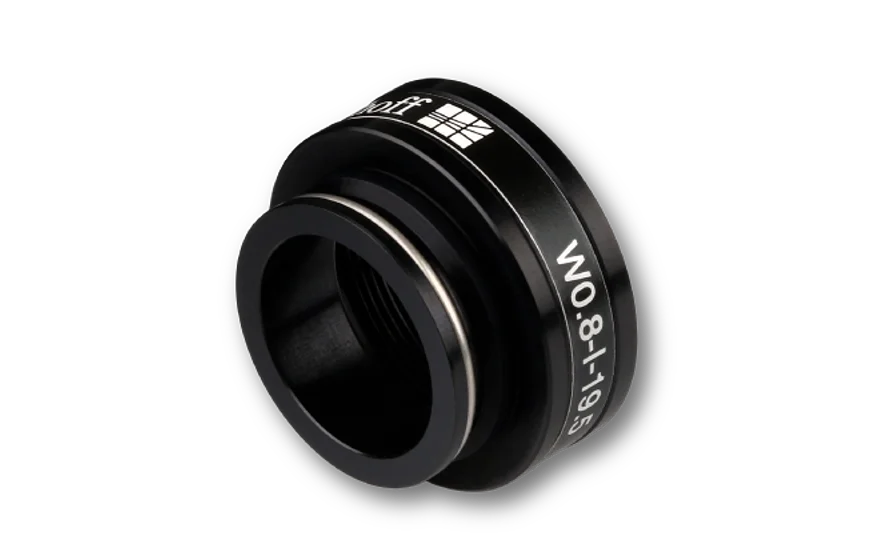

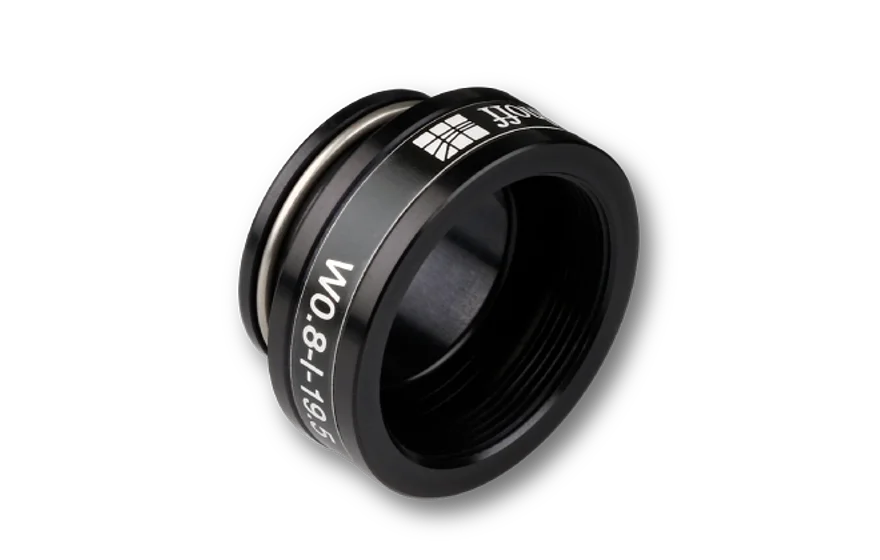

Adapter internal RMS thread (Whitworth thread W 0,8" × 1/36") to system mount Ø 19.5 mm, e.g. for microscope lenses
- System Mount Ø 19.5 mm
- RMS thread, internal
- Clear aperture Ø 15 mm
Technical data
W0.8-I-19.5
Order Code
W0.8-I-19.5
Adapter
System mount
Internal thread
Ø 19.5 mm
W 0.8" × 1/36
Steel ring
Clear aperture
Ø 15 mm
Material
Black anodized aluminum / steel
Weight
6 g
Dimensions (for a complete dimensional drawing please refer to the downloads section)
