19.5AM25-L

Adapter for 60SMS Laser Beam Couplers Outer diameter Ø 25/28 mm

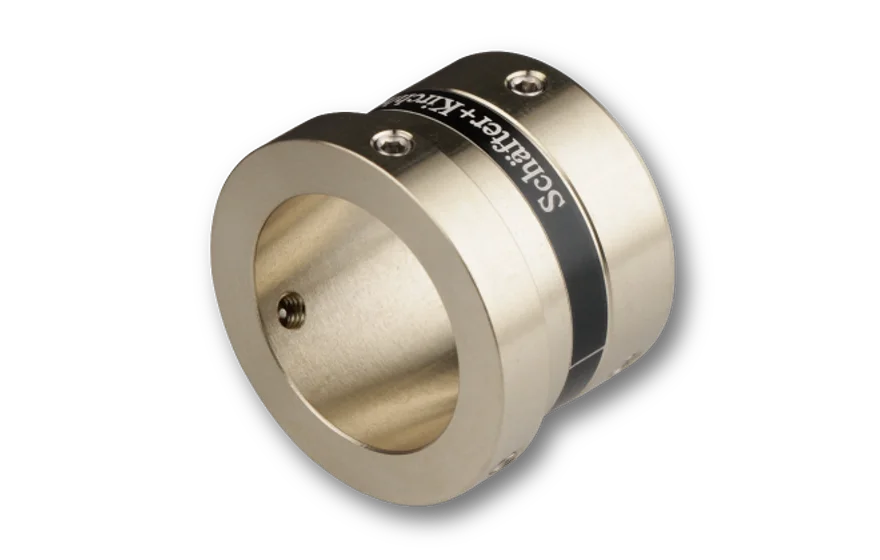

Adapter 19.5AM25-L

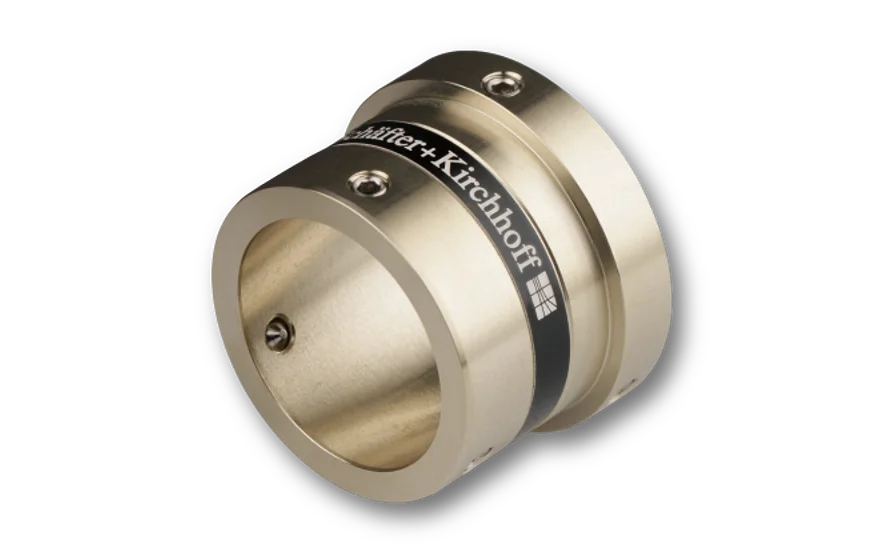

Adapter 19.5AM25-L

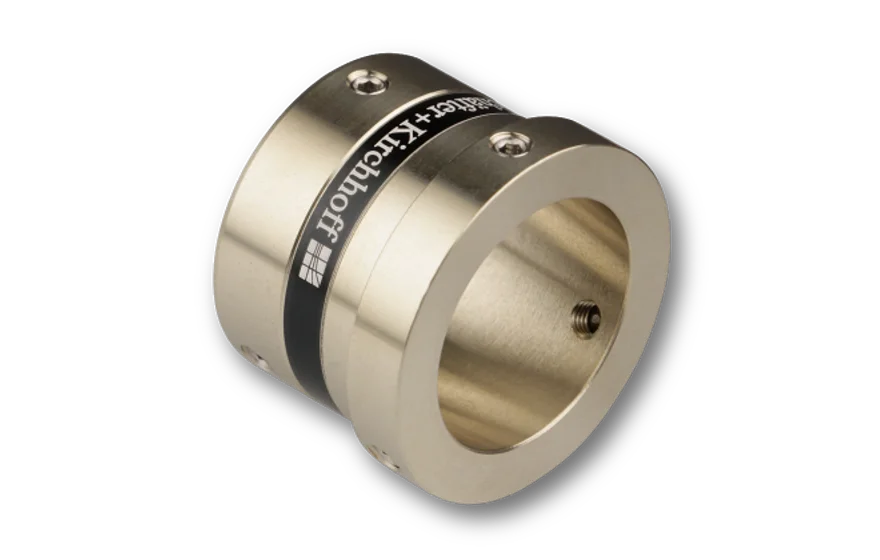

Adapter 19.5AM25-L

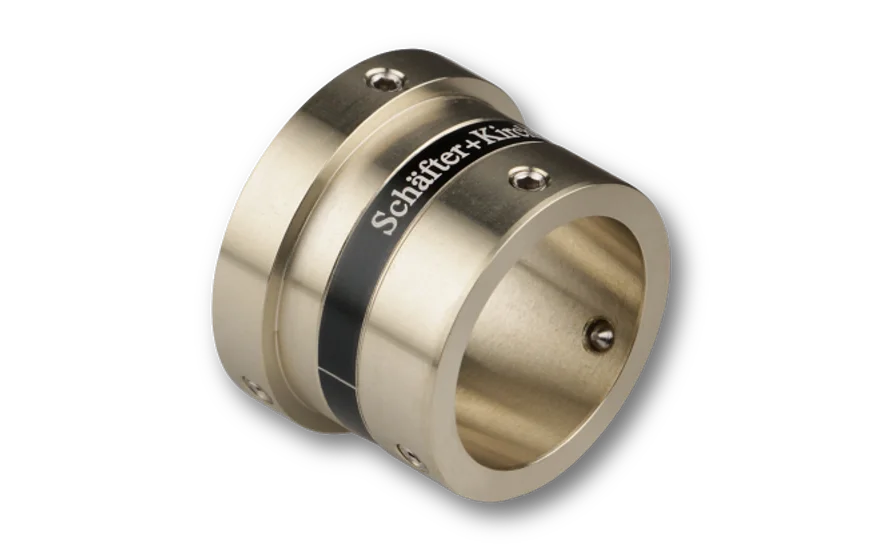

Adapter 19.5AM25-L

Features

Adapter for 60SMS Laser Beam Couplers

Technical data

19.5AM25-L

Order Code
19.5AM25-L
Adapter
Fitting bore
Fitting bore

Ø 19.5 mm
Ø 19.5 mm
Clear aperture
Ø 19.5 mm
Outer diameter
Ø 25/28 mm
Total length
20 mm
Material
Nickel silver
Weight
36 g

Downloads

930732000200.pdf (Dimensional drawing)
930732000200.stp (STEP model)
930732000200.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

Hex key WS 1.5
