Adapters for 60SMS, 60SMF, and 60FC-A19.5

with system mount Ø 19.5 mm

Adapters of different lengths and sizes for system mount  ­ Ø 19.5 mm. For use with Laser Beam Couplers of series 60SMS, 60SMF, and 60FC-A19.5
  • Flange mount, system mount Ø 19.5 mm, or as mounting plate
  • Option: Integrated shutter
  • Option: Integrated attenuator
Adapter 60A19.5-F
Adapter 60A19.5-F
48MC-MP-19.5
Mounting plate for the Schäfter+Kirchhoff multicube™ system.
For integration of components with Ø 19.5 mm system mount such as 60SMS Laser Beam Couplers.
Direct attachment to post mounts using the M4 thread.
48MB-19.5-60-M6
Mounting console for the Schäfter+Kirchhoff multicube™ system.
For breadboard mount.
For integration of components with Ø 19.5 mm system mount such as 60SMS Laser Beam Couplers.
48MC-SM-19.5
Mounting cube for the Schäfter+Kirchhoff multicube™ system.
For integration of components with Ø 19.5 mm system mount such as 60SMS Laser Beam Couplers.
Single cube with through-holes for linear arrangements, short design
19.5AM25
Adapter for 60SMS Laser Beam Couplers
  • Outer diameter Ø 25/28 mm
  • Fitting bore Ø 19.5 mm: accepts system mount Ø 19.5 mm
  • Short version
19.5AM25-L
Adapter for 60SMS Laser Beam Couplers

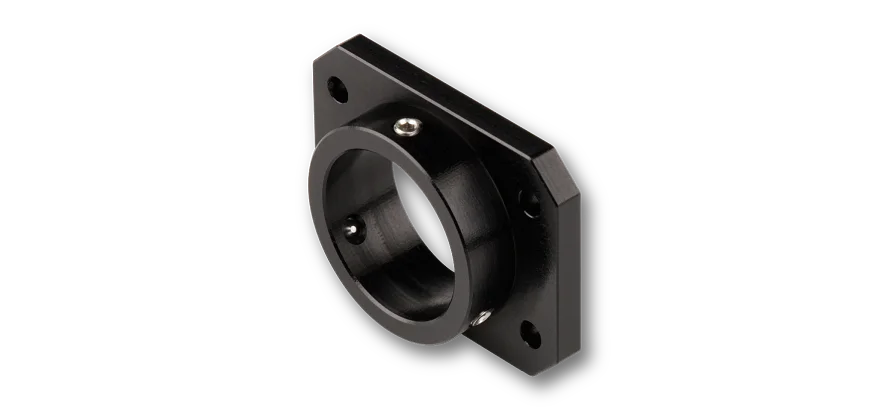

60A19.5-F
Adapter for flange mount of the 60SMS Laser Beam Couplers to laser systems with a standard drilling pattern 1"x1"
  • System mount Ø 19.5 mm
  • Flange mount 1"x1"

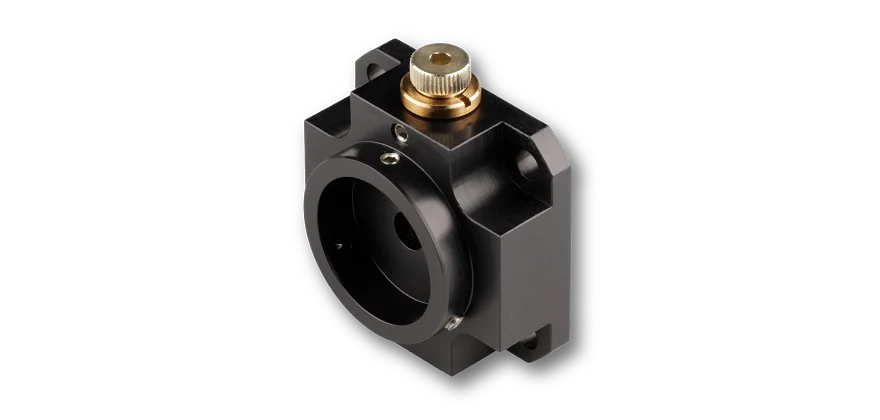

60A19.5-F-AT
Adapter for flange mount of the 60SMS Laser Beam Couplers to laser systems with a standard drilling pattern 1"x1"
  • Integrated attenuator
  • System mount Ø 19.5 mm
  • Flange mount 1"x1"

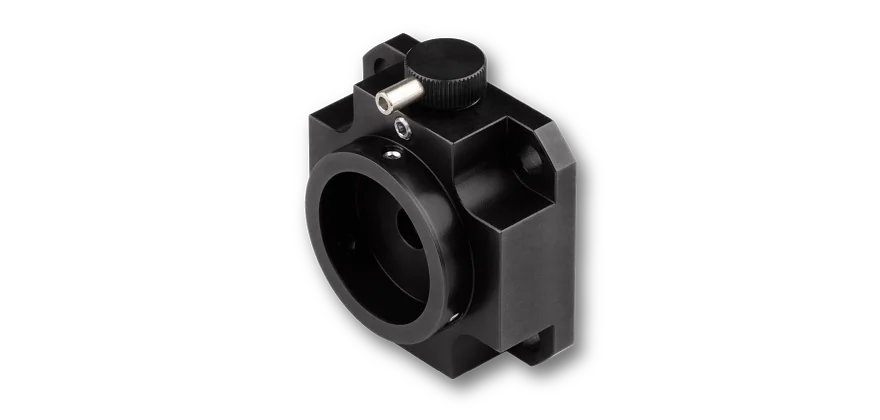

60A19.5-F-S
Adapter for flange mount of the 60SMS Laser Beam Couplers to laser systems with a standard drilling pattern 1"x1"
  • Integrated shutter
  • System mount Ø 19.5 mm
  • Flange mount 1"x1"
60A19.5-F-FB
Adapter for flange mount of the 60SMS Laser Beam Couplers to the fiber bench system
  • System mount Ø 19.5 mm
  • Flange mount 28.9 x 16.7 mm
60A19.5-F-MS
Mounting set for adapters type 60A19.5-F, 60A19.5-F-AT and 60A19.5-F-S
Includes:
  • 4 pcs. screws 4-40 x 3/8" (similar DIN 912)
  • 4 pcs. washers
  • Hex key 3/32
