48MC-SM-19.5

Mounting cube for the Schäfter+Kirchhoff multicube™ system

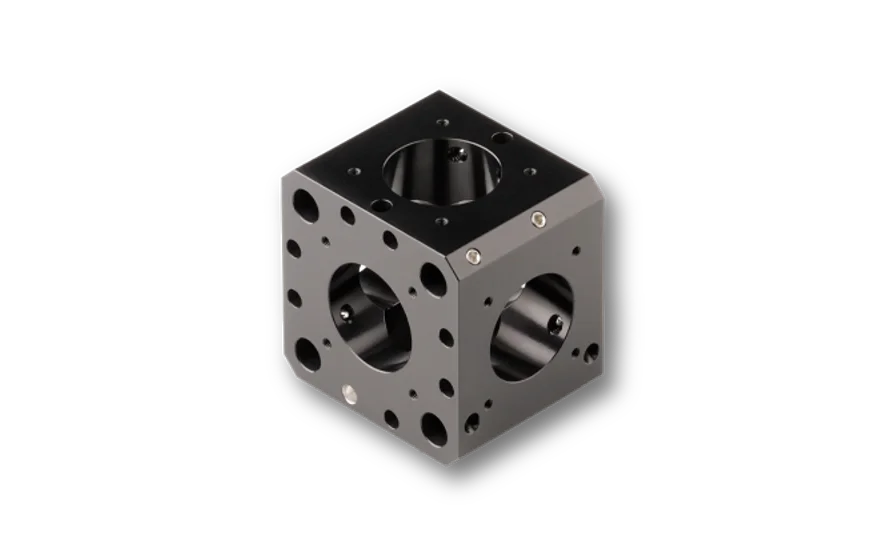

multicube 48MC-SM-19.5

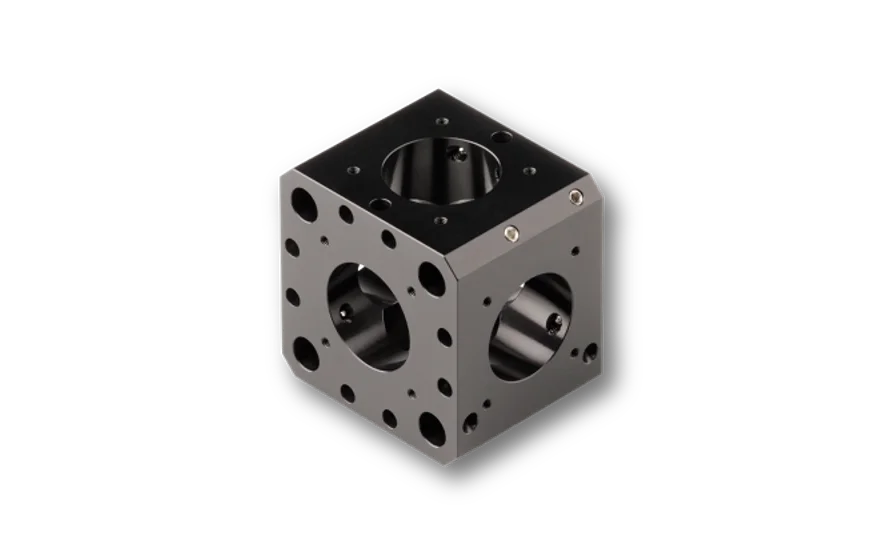

multicube 48MC-SM-19.5

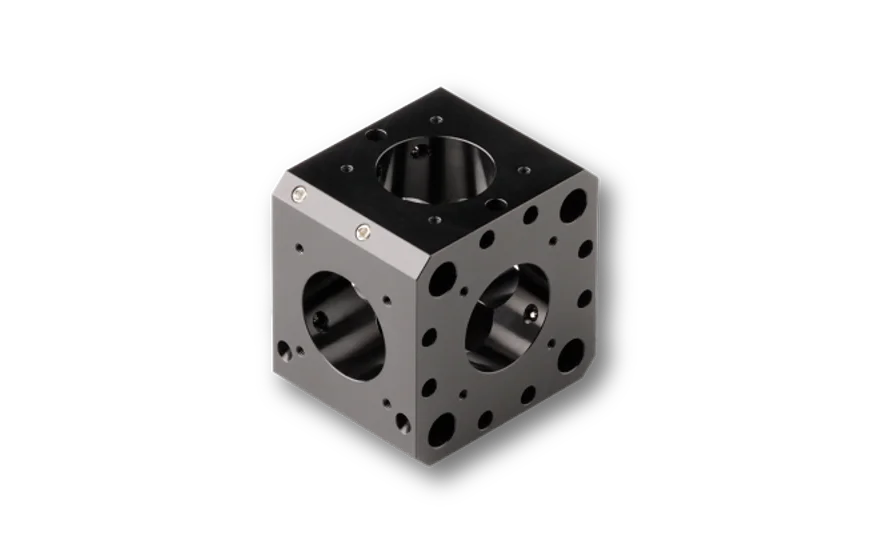

multicube 48MC-SM-19.5
multicube 48MC-SM-19.5
multicube 48MC-SM-19.5
multicube 48MC-SM-19.5
multicube 48MC-SM-19.5
multicube 48MC-SM-19.5

Features

Mounting cube for the Schäfter+Kirchhoff multicube™ system.
For integration of components with Ø 19.5 mm system mount such as 60SMS Laser Beam Couplers.
Single cube with through-holes for linear arrangements, short design

Technical data

48MC-SM-19.5

Order Code
48MC-SM-19.5
Type
Single cube

for linear configuration
Dimensions
42 x 42 x 34 mm
Fitting bore
Ø 19.5 mm
Material
Black anodized aluminum
Weight
78 g
RoHS compliant
Yes
