60A19.5-F-FB

Adapter for 60SMS Laser Beam Couplers Flange mount for the fiber bench system

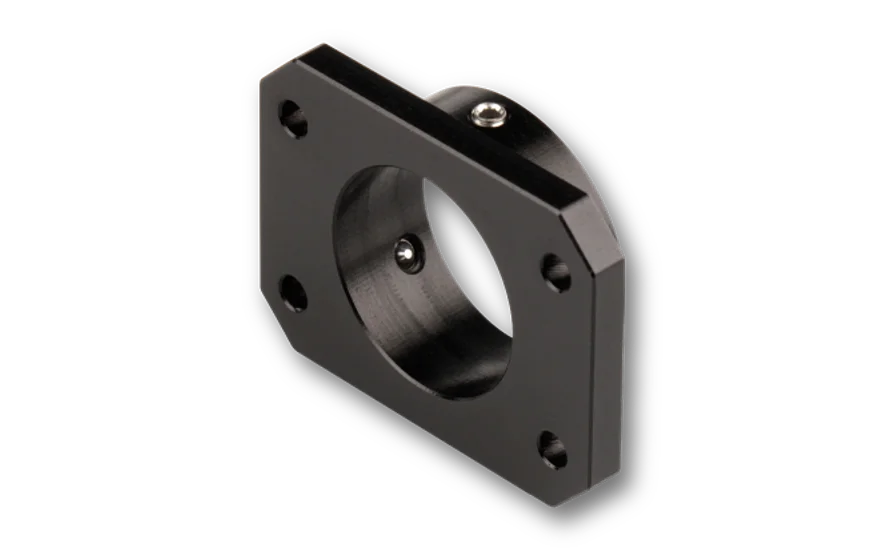

Adapter 60A19.5-F-FB

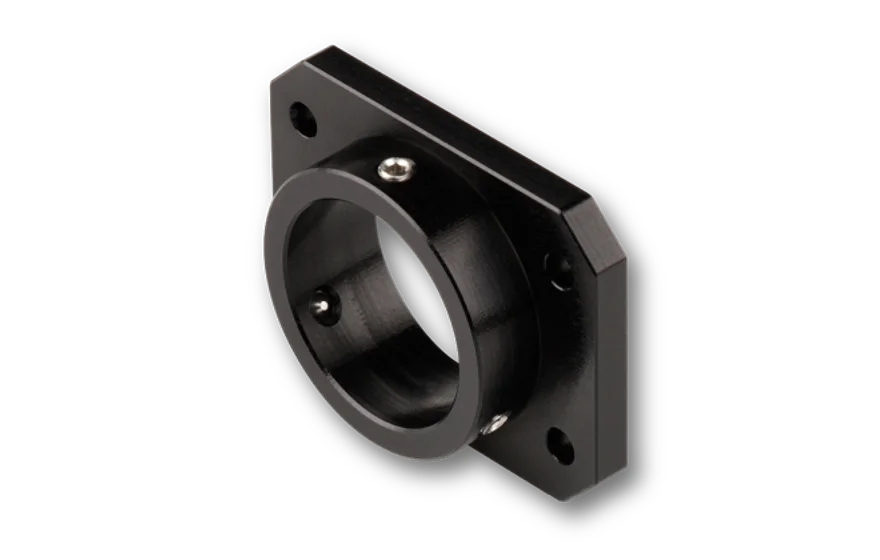

Adapter 60A19.5-F-FB

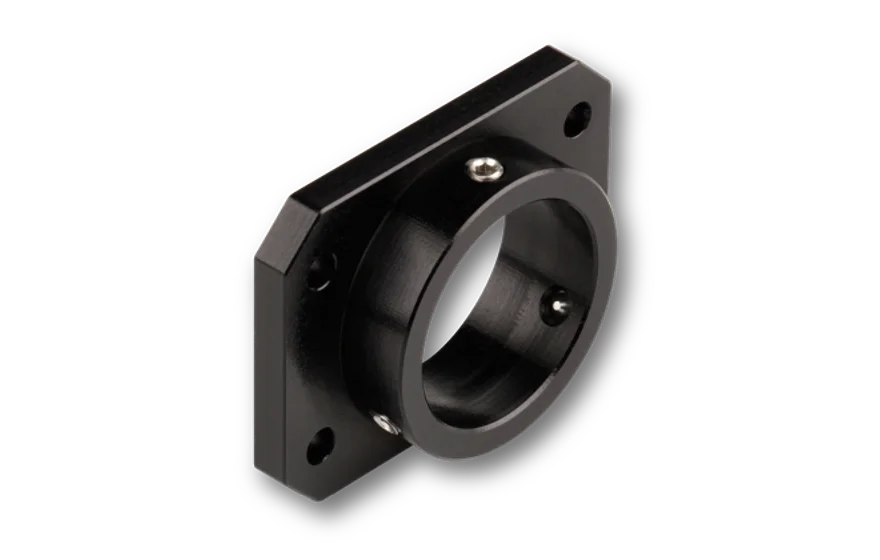

Adapter 60A19.5-F-FB

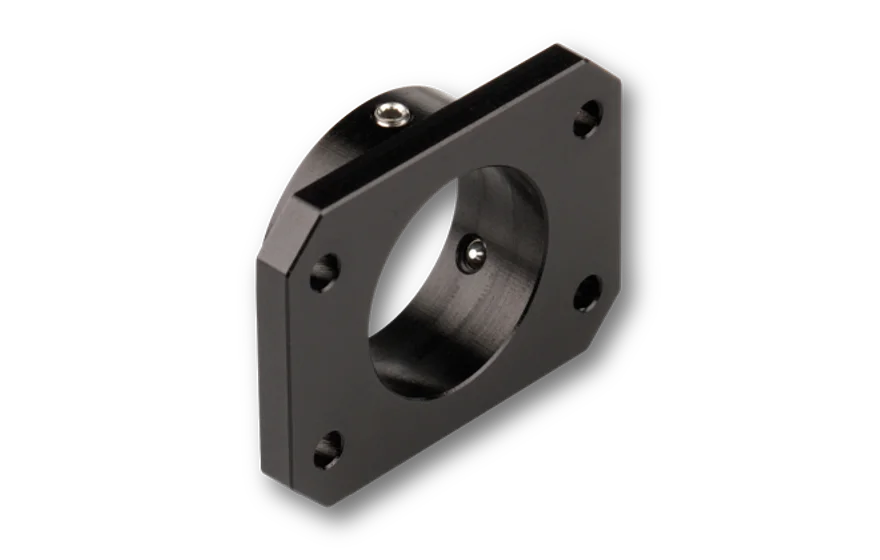

Adapter 60A19.5-F-FB

Features

Adapter for flange mount of the 60SMS Laser Beam Couplers to the fiber bench system
  • System mount Ø 19.5 mm
  • Flange mount 28.9 x 16.7 mm

Technical data

60A19.5-F-FB

Dimensions (for a complete dimensional drawing please refer to the downloads section)

60A19.5-F-FB

Downloads

930730070600.pdf (Dimensional drawing)
930730070600.stp (STEP model)
930730070600.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

Hex key WS 1.5
