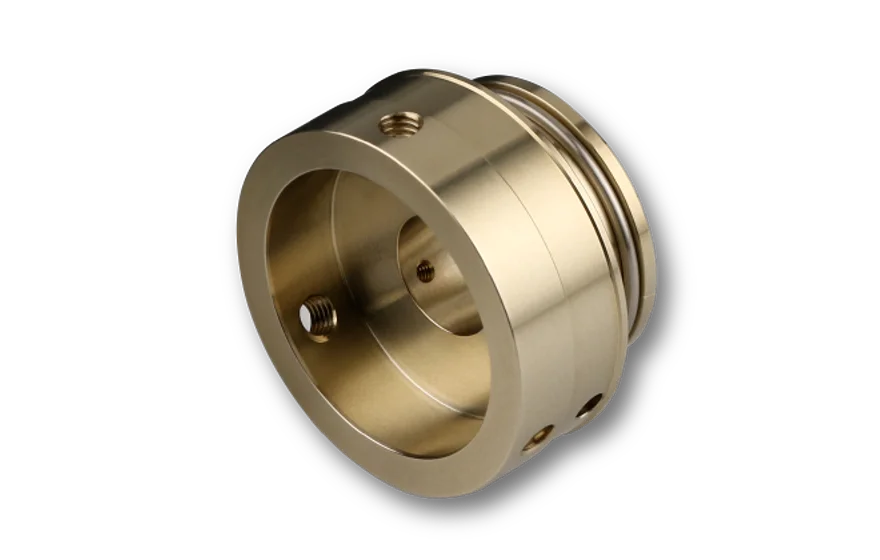

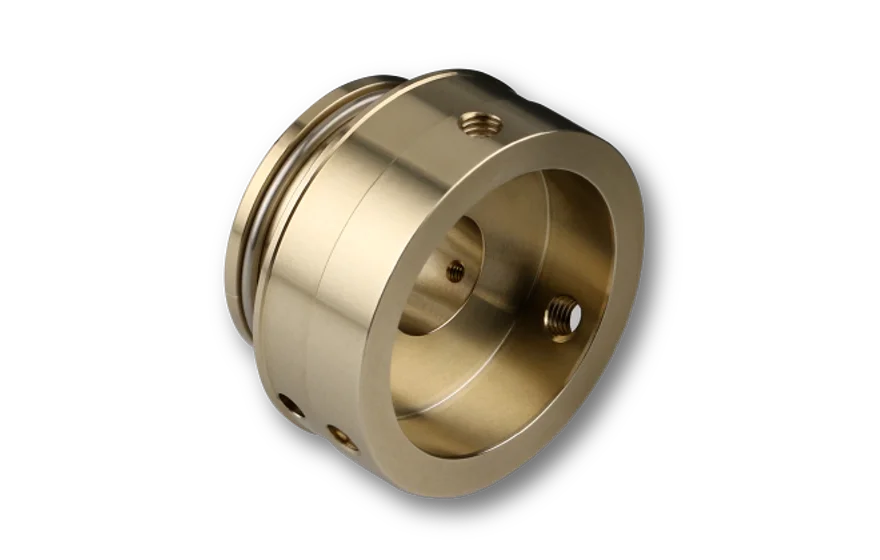

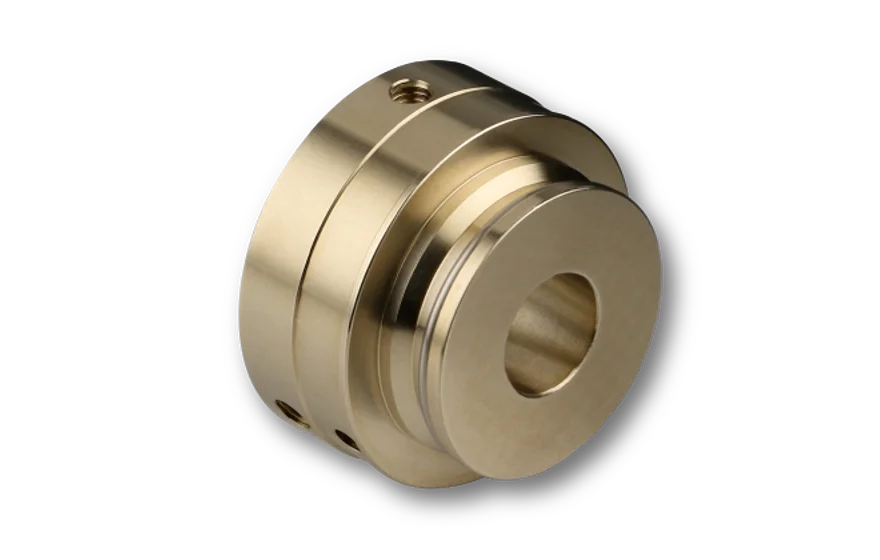

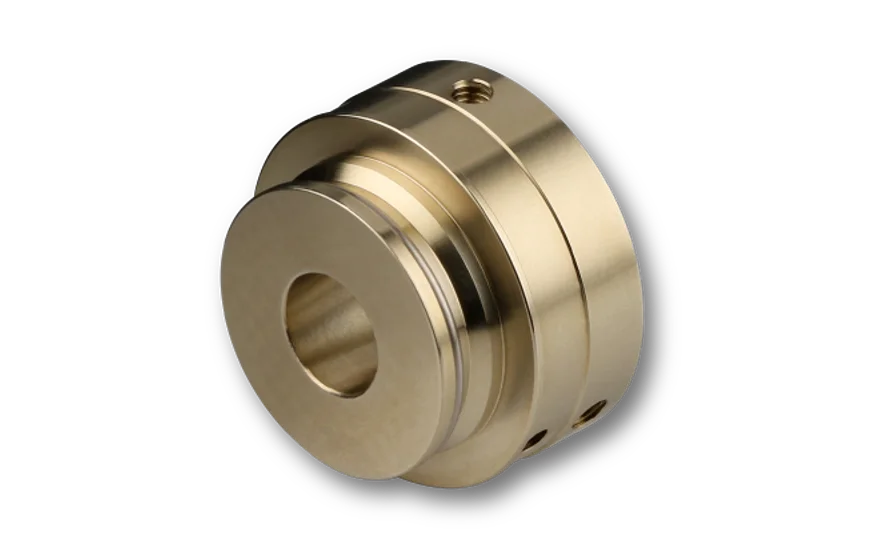

8AC19.5-19.5

Adapter Ø 8 mm to system mount Ø 19.5 mm

8AC19.5-19.5
8AC19.5-19.5
8AC19.5-19.5
8AC19.5-19.5

Features

Adapter to integrate attachment optics with system mount Ø 8 mm to the Schäfter+Kirchhoff multicube™ system and to fiber collimators series 60FC-L and 60FC-T with an outer diameter Ø 25 mm.
  • Fitting bore Ø 8 mm for components with system mount Ø 8 mm
  • System mount Ø 19.5 mm
  • Front end for system mount Ø 19.5 mm
  • Nickel silver

Technical data

8AC19.5-19.5

Order Code
8AC19.5-19.5
Adapter
Fitting bore
System mount

Ø 19.5 mm
Ø 19.5 mm


Steel ring
Additional
Fitting bore


Ø 8 mm

Clear aperture
Ø 8 mm
Material
Nickel silver / steel
Weight
32 g

Accessories

to attach in the front of collimators with system mount Ø 8 mm
