19.5AF25.4-S

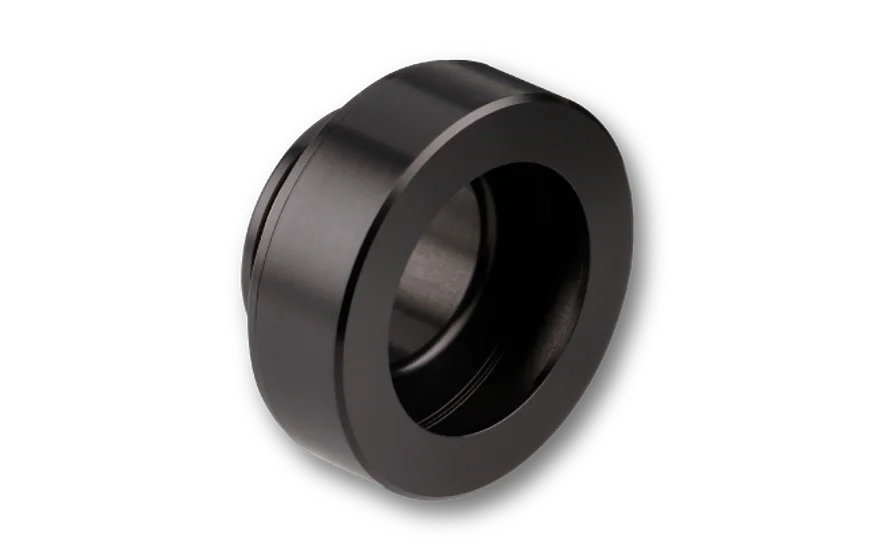

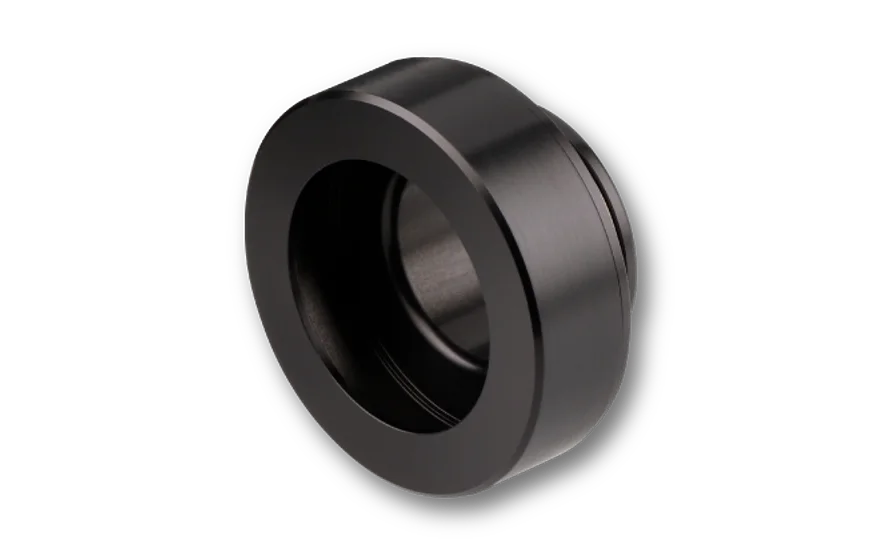

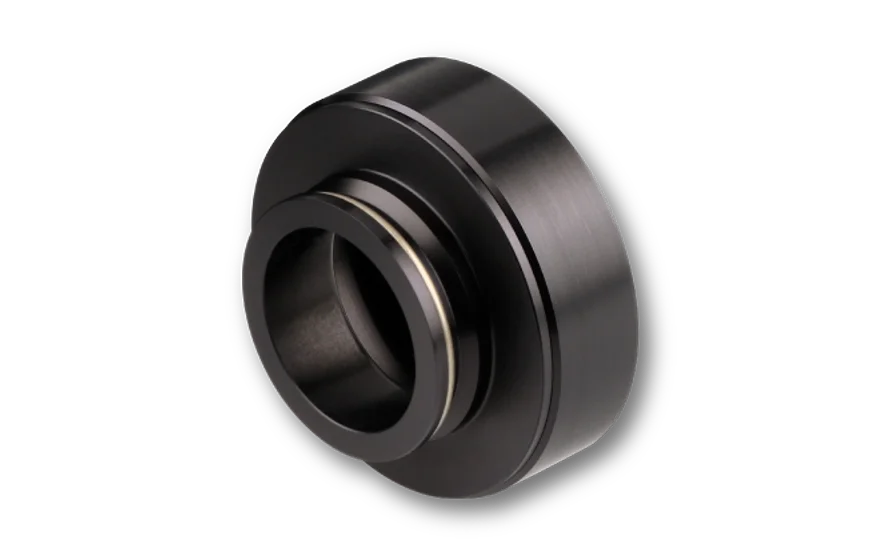

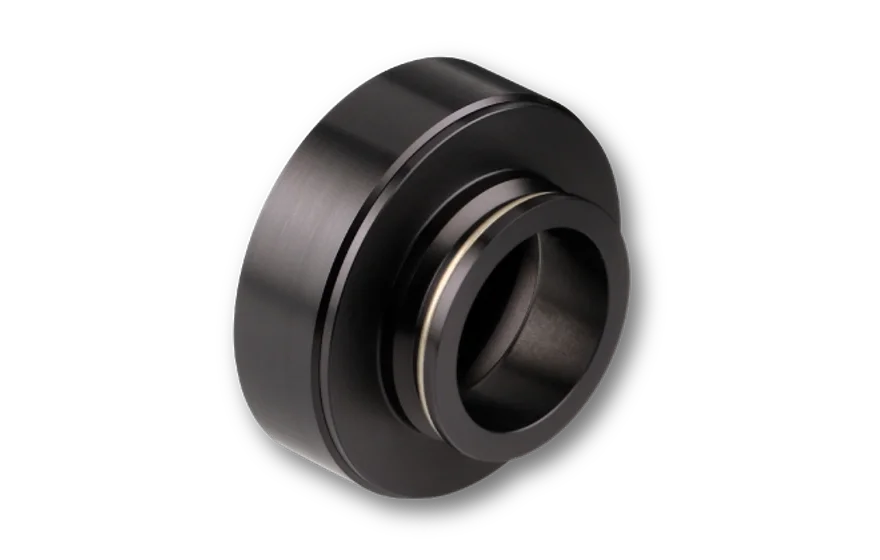

Adapter system mount Ø 19.5 mm to fitting bore Ø 25.4 mm

19.5AF25.4-S

Features

The adapter 19.5AF25.4-S allows to attach Ø 25.4 mm or Ø 25 mm mounted optics to fiber collimators of series 60FC-L or 60FC-T with an outer diameter Ø 25 mm

System mount Ø 19.5 mm
Fitting bore Ø 25.4 mm that holds Ø 25.4 mm or Ø 25 mm mounted optics
Clear aperture Ø 15 mm
Black anodized aluminum

Technical data

19.5AF25.4-S

Order Code

19.5AF25.4.S

Adapter

Fitting bore

System mount

Ø 25.4 mm
Ø 25 mm

Ø 19.5 mm

Threaded cap

Steel ring

Clear aperture

Ø 15 mm

Weight

8 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

Downloads

980210000602_2.pdf (Dimensional drawing)

980210000602_2.stp (STEP model)

980210000602_2.stp (STEP model, for registered users only)
