Fiber-coupled Lasers series 51nano-N

Low coherence laser source with single-mode fiber cable (OEM version)

51nano-N

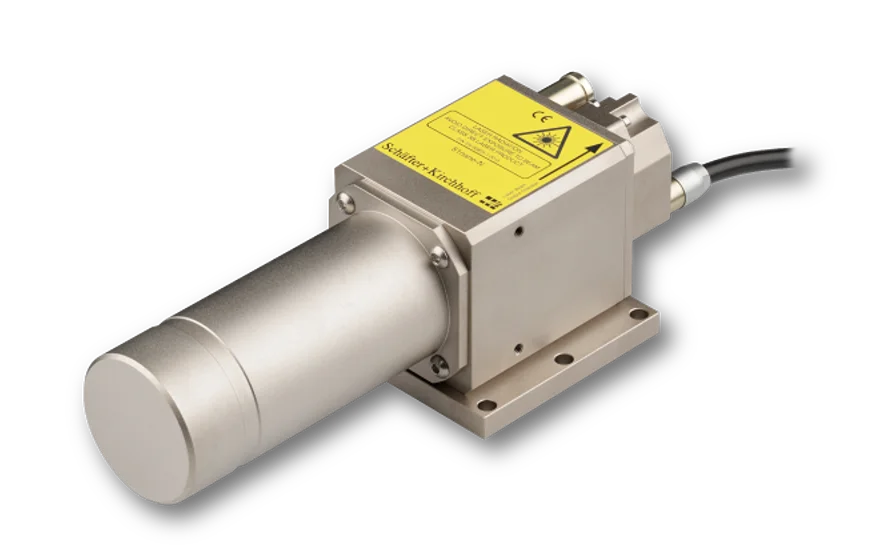

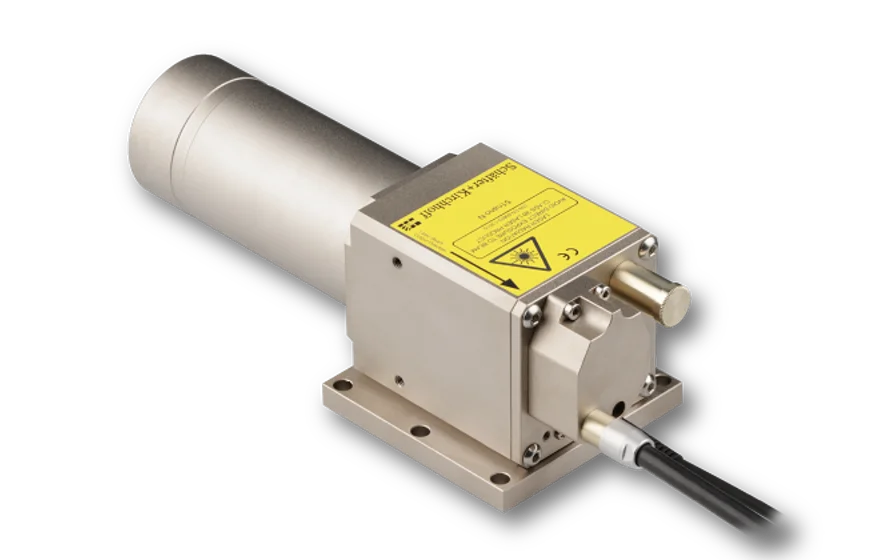

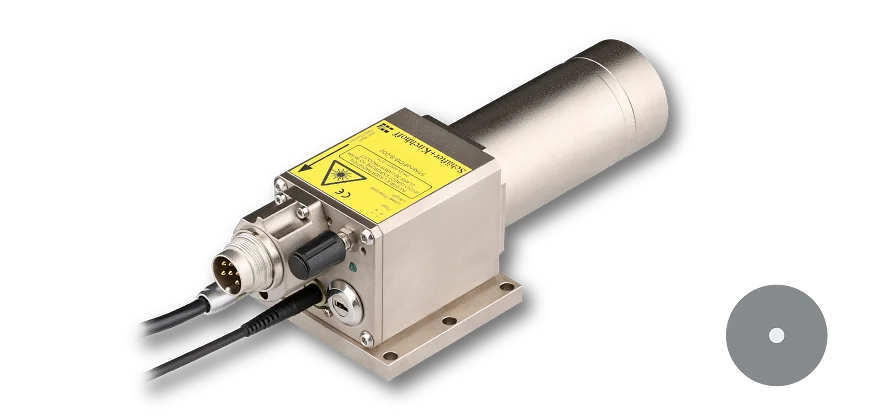

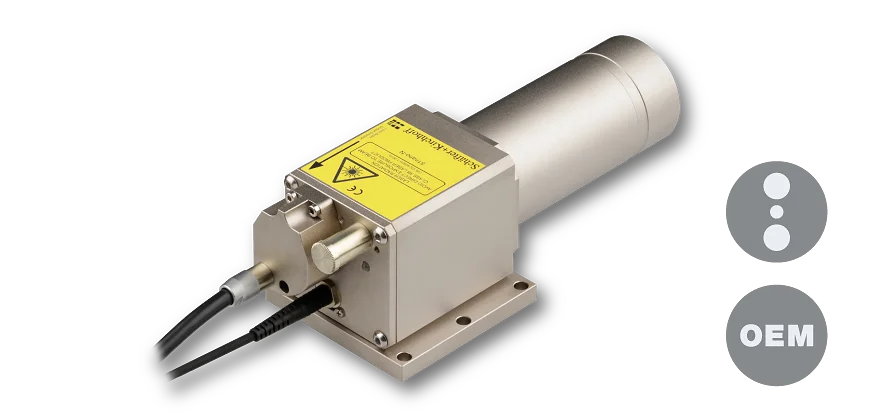

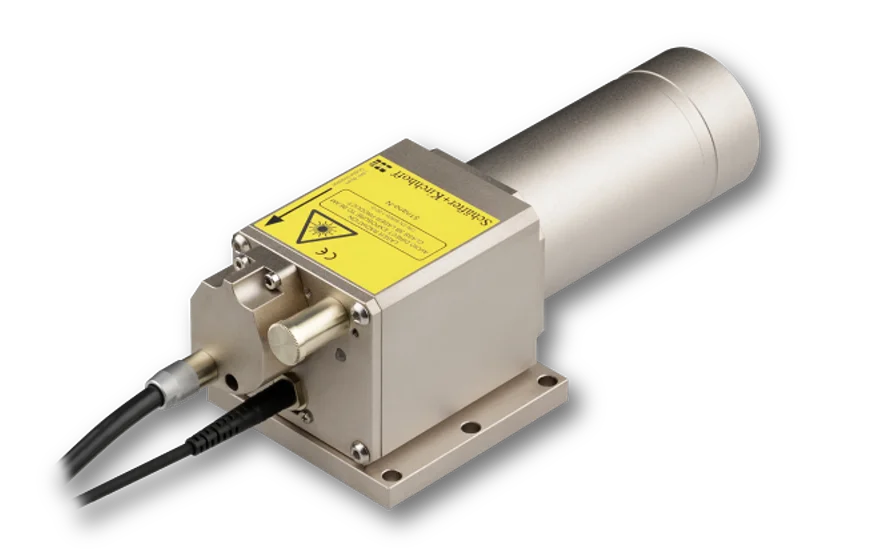

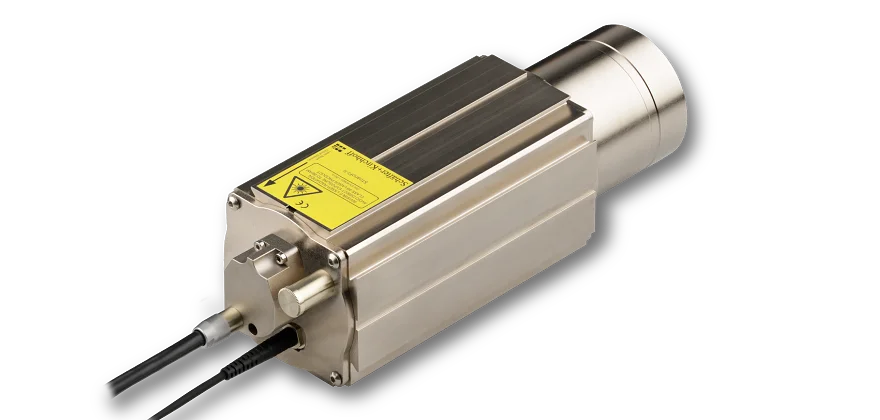

Representative product images. Individual product images are found on the individual product pages.

Features

Laser Diode Beam Sources of type 51nano-N have reduced power noise, reduced coherence length and a lowered speckle contrast.

OEM version without key switch nor interlock and not conforming to EN 60825-1
Reduced power noise: typ. < 0.15 % of P_o (RMS, Bandwidth < 1 MHz)
Reduced coherence length: Coherence length ≈ 300 µm
Reduced speckle contrast
Various wavelengths from 375 nm to 1550 nm
Laser output power up to 30 mW
Single-mode fiber cable
FC APC connector (8°-polish), optional DIN AVIO or E-2000, end caps for wavelengths < 635 nm
Modulation analog and TTL
Beam profile is rotationally symmetric with Gaussian intensity distribution

Alternative: Laser Diode Beam Source 51nano-S (with key switch and interlock) or with polarization maintaining fiber cable

Low noise, low coherence laser module (typ. < 0.15 % of P_o (RMS, Bandwidth < 1 MHz))
OEM Version

Description

The fiber-coupled Laser Diode Beam Sources of type 51nano-N (OEM version) have reduced power noise (typ. < 0.15 % of P_o (RMS, Bandwidth < 1 MHz)), reduced coherence length (≈ 300 µm) and a lowered speckle contrast.

Electrical features

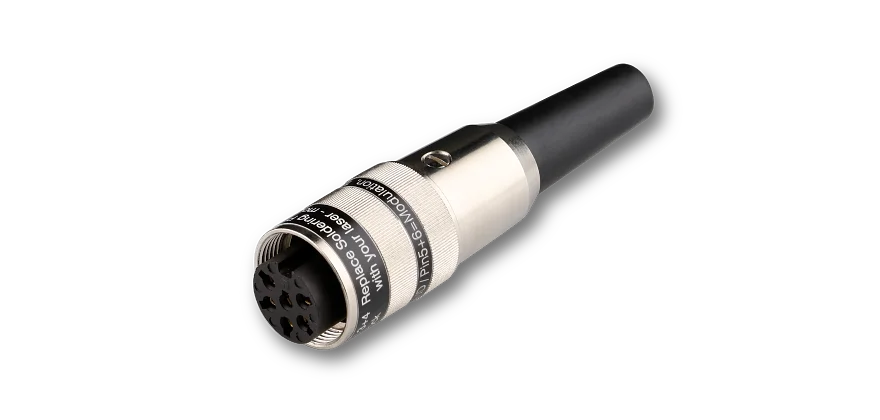

The output power is adjustable using a potentiometer (with protective cap) or using the two modulation inputs for analog and TTL. The electrical cable is 1.5 m long. There are two possible supply voltages 5 V or 12 V. Other electrical cables and connectors on request.

More details on electronics type: HP, H.

Fiber cable
The source is fiber-coupled to a single-mode fiber cable. As a result the beam profile is rotationally symmetric with Gaussian intensity distribution. The fiber cable is equipped with an FC APC connector (8°-polish). Fiber connectors with end caps are used for wavelengths < 635 nm. The fiber cables have strain-relief and protective sleeving (Ø 3 mm). Standard cable length is 150 cm.

Fiber Options:

Single-mode fibers with core-centered connector of type FC
Other connector types including DIN, AVIO, ST or E2000
Other fiber lengths
Incorporated vacuum feed-through

Laser safety
This OEM version has no key switch or interlock and is not conform to EN 60825-1.
It can be operated conform to EN 60825-1 by using a switchbox.
As an alternative, a version with key switch and with interlock (conform to EN 60825-1) is available
as type 51nano-S.

Technical data

Fiber-coupled Lasers series 51nano-N

Series

51nano-N (single-mode)

Wavelength

405 nm - 1550 nm

Power noise

typ. < 0.15 % of P_o (RMS, BW < 1 MHz)

Coherence length

≈ 300 µm

Fiber cable

single-mode

Fiber cable length

1.5 m (standard)

Fiber connector type

FC APC (standard)

Supply voltage

5 V or 12 V

Electr. cable length

1.5 m (standard)

Connector type (5V)

Lumberg SV30 IEC 61076-2-106

Connector type (12V)

Lumberg SV40 IEC 61076-2-106

Cable type

shielded 4 x 0.14 mm²

Modulation

analog and TTL

Operating temperature

15 - 35°C ± 0.5°C

Dimensions

50 x 58 x 166 mm

Weight

530 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

Low coherence fiber coupled laser 51nano-N

Order Options

Order Code	Wavelength	Typ.Output Power P_o	Supply Voltage	Fiber Type	Connector	End cap	Electronics Type	Laser Class
51nano-N-375-10-X23-P-12-4-18-0-150	375 nm	10 mW	12 V	Single-mode	FC APC	x	HP	3B
51nano-N-405-1-Y07-P-12-4-18-0-150	405 nm	0.9 mW	12 V	Single-mode	FC APC	x	HP	2
51nano-N-405-14-M29-P-12-4-18-0-150	405 nm	14 mW	12 V	Single-mode	FC APC	x	HP	3B
51nano-N-445-17-G02-P-12-4-18-0-150	445 nm	17 mW	12 V	Single-mode	FC APC	x	HP	3B
51nano-N-520-7-O11-P-12-4-18-0-150	520 nm	7 mW	12 V	Single-mode	FC APC		HP	3B
51nano-N-635-1-H10-P-5-2-18-0-150	635 nm	0.9 mW	5 V	Single-mode	FC APC		H	2
51nano-N-640-17-H21-P-5-2-18-0-150	640 nm	17 mW	5 V	Single-mode	FC APC		H	3B
51nano-N-660-1-M01-P-5-2-18-0-150	660 nm	0.9 mW	5 V	Single-mode	FC APC		H	2
51nano-N-660-28-H26-P-5-2-18-0-150	660 nm	28 mW	5 V	Single-mode	FC APC		H	3B
51nano-N-785-12-Q06-P-5-2-18-0-150	785 nm	12 mW	5 V	Single-mode	FC APC		H	3B
51nano-N-808-19-G15-P-5-2-18-0-150	808 nm	19 mW	5 V	Single-mode	FC APC		H	3B
51nano-N-830-11-H19-P-5-2-18-0-150	830 nm	11 mW	5 V	Single-mode	FC APC		H	3B
51nano-N-850-18-G17-P-5-2-18-0-150	850 nm	18 mW	5 V	Single-mode	FC APC		H	3B
51nano-N-905-18-Q13-P-5-2-18-0-150	905 nm	18 mW	5 V	Single-mode	FC APC		H	3B
51nano-N-940-15-C07-P-5-2-18-0-150	940 nm	15 mW	5 V	Single-mode	FC APC		H	3B
51nano-N-980-2.3-TH4-P-5-2-18-0-150	980 nm	2.3 mW	5 V	Single-mode	FC APC		H	3R
51nano-N-1064-10-Q05-P-5-2-18-0-150	1064 nm	10 mW	5 V	Single-mode	FC APC		H	3B
51nano-N-1310-2.5-M14-P-5-2-18-0-150	1310 nm	2.5 mW	5 V	Single-mode	FC APC		H	1
51nano-N-1550-4.5-Q04-P-5-2-18-0-150	1550 nm	4.5 mW	5 V	Single-mode	FC APC		H	1

Other types e.g. with different wavelengths are available.
Click here for sources with PM fiber cable.

Technotes

Downloads

000824000400.pdf (Dimensional drawing)

000829000900.stp (STEP model)

000829000900.stp (STEP model, for registered users only)

Article_51Nano.pdf (Technote)

Benefits of user registration include

Extended information for download including stepfiles, software or manuals
Direct download of user-specific downloads (e.g. user-specific software)
Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
Stored item list

Click here to register.

This downloads section only includes general downloads for the complete series.
Please access the individual product pages (using the product configurator, the product list, order options or the search button if you have a complete order code). Here you will find specific downloads including technical drawings or stepfiles.
