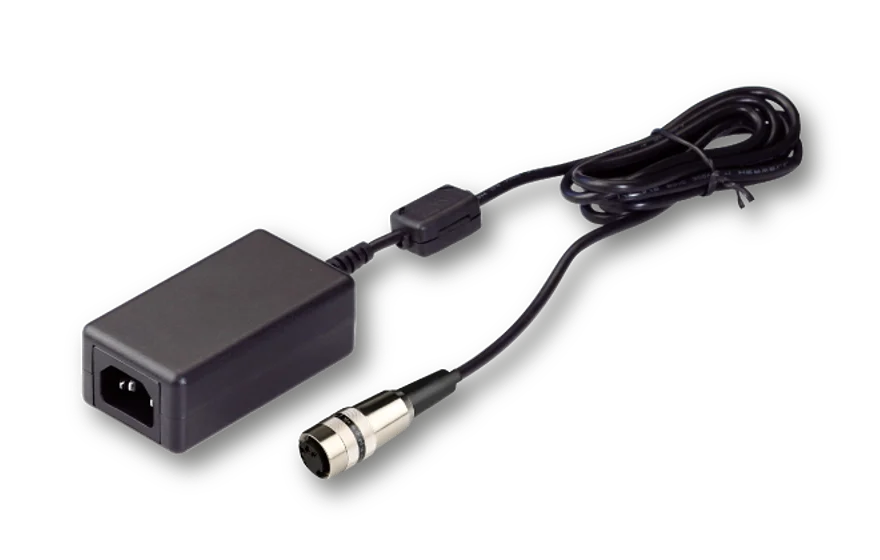

Switchbox PS051003E

Power Supply 5 V

PS051003E
PS051003E
PS051003E
PS051003E

Features

Power supply for all ­Laser Modules with 5 V supply voltage and w/o RS232 ­interface or for 5 V Line Scan Cameras.

Description

Power supply for all ­Laser Modules with 5 V supply voltage and w/o RS232 ­interface or for 5 V Line Scan Cameras.
The power supply is also suitable if the laser is ope­rated together with a switchbox.

Technical data

Switchbox PS051003E

Input
Input voltage
100 - 240 VAC
Input current
max. 0.5 A
Input frequency
50 - 60 Hz
Input connector
IEC320-C14
Output
Output power
13 W
Output voltage
5 VDC
Output current
2.6 A
Output connector

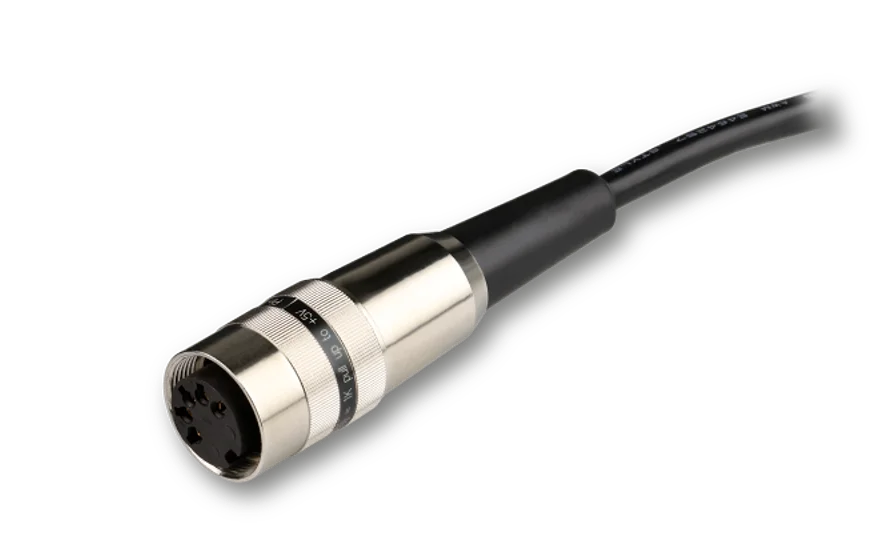

5-pin (female), IEC 61076-2-106
Output connector type
Lumberg KV50 (female)
Output connector compatibility
SV50, SV30 (male)
Cable type
1.8 m shielded
Dimensions
86.5 x 47.4 x 32 mm
Weight
223 g
RoHS compliant
yes

Accessories

PC150DE

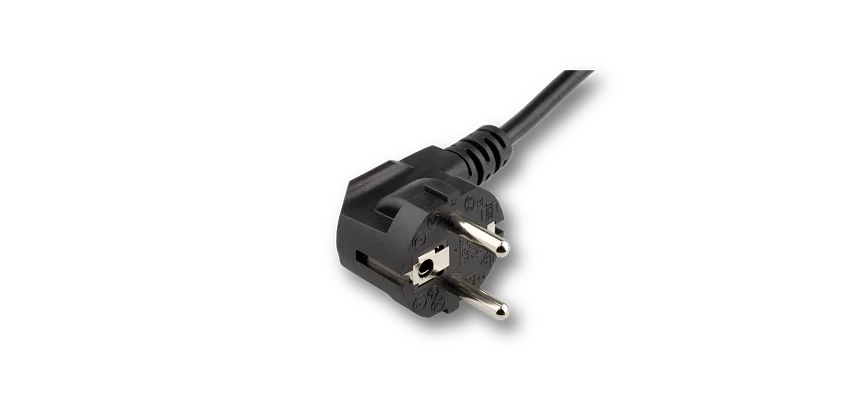

Power Cord, Europe
PC150US
Power Cord, US
PC150UK

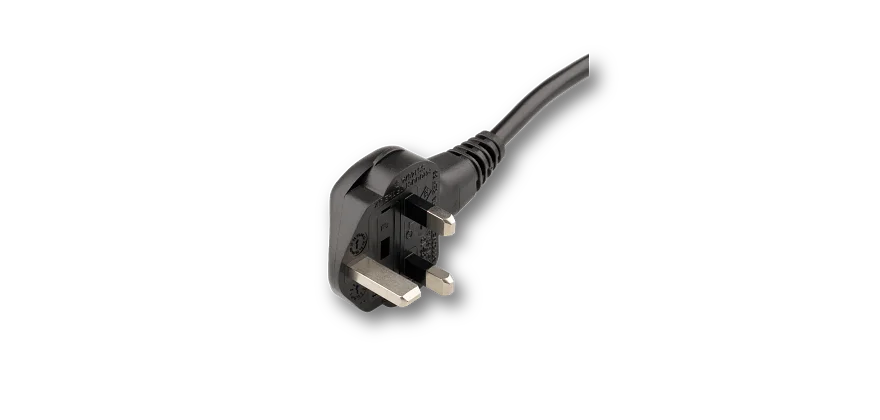

Power Cord, UK
