Polarization Filters 5PF

for attaching to 60FC Fiber Collimators

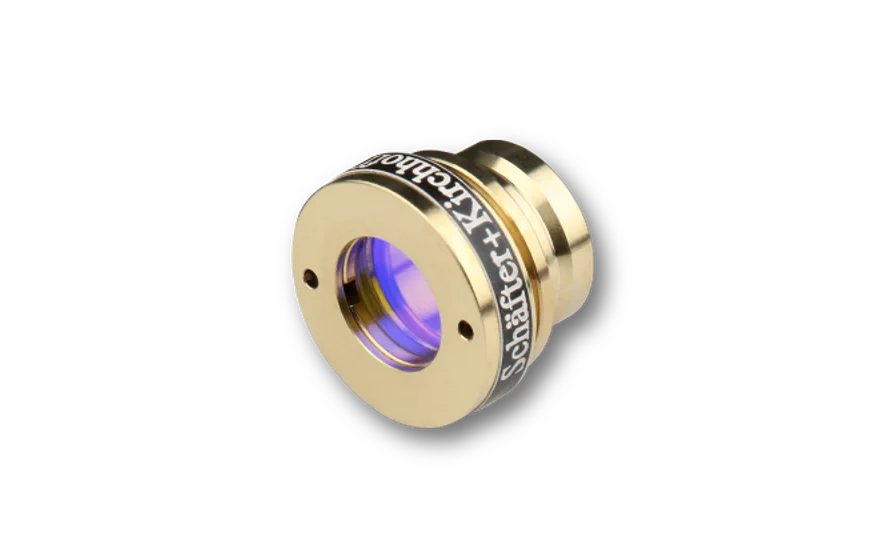

5PF-P-xxx-S
5PF-P-xxx-S

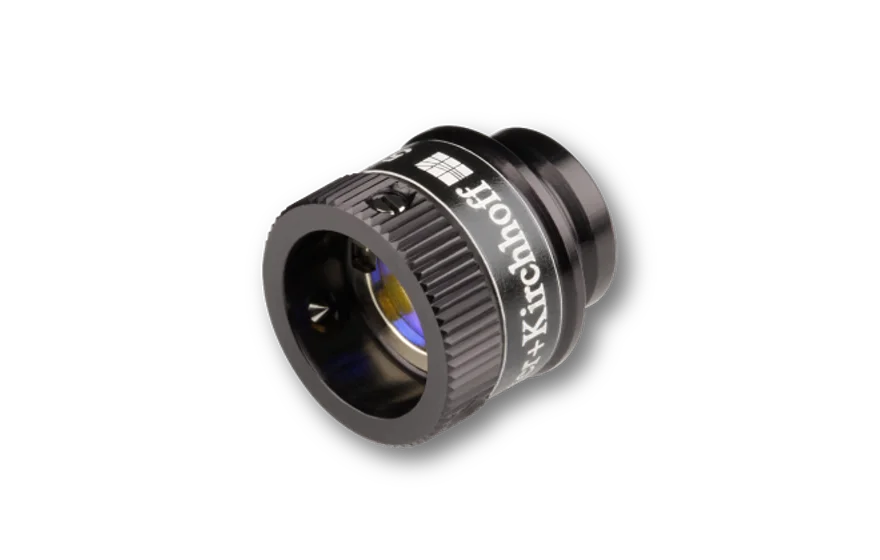

5PF-P-xxx-L
5PF-P-xxx-L

Features

Polarization filters with system mount Ø 8 mm for attaching to 60FC Fiber Collimators (with outer diameter Ø 12 mm).

These filters transmit only the linear polarized component of the radiation.

There are two series:

  • Polarization beam splitter cubes with deflection of the unwanted orthogonally polarized radiation
  • Dichroic polarization filter. The filter is laminated to a glass substrate with an 1.5° inclined mounting in oder to avoid direct back-reflections
  • Free rotation for best adjustment with positional locking using radially arranged screws.
  • Polarization extinction ratio 10.000:1
  • Surface deviation < λ/4
  • Wavelength range UV - IR
  • Broadband AR Coating
  • Optional long-form housing (-L) with system mount Ø 8 mm for adding additional attachment optics

Order options

Order CodeSeriesPolarizer TypeSpectral RangeExtinctionTransmissionClear ApertureSystem MountFront Fitting
5PF-P-600-S5PF-Pdichroic600 - 850 nm104 :1> 84 - 93 %5 mmØ 8 mm-
5PF-P-750-S5PF-Pdichroic750 - 1250 nm104 :1> 87 - 93 %5 mmØ 8 mm-
5PF-P-1300-S5PF-Pdichroic1280 - 1500 nm104 :1> 96 - 98 %5 mmØ 8 mm-
5PF-P-600-L5PF-Pdichroic600 - 850 nm104 :1> 84 - 93 %5 mmØ 8 mmØ 8 mm
5PF-P-750-L5PF-Pdichroic750 - 1250 nm104 :1> 87 - 93 %5 mmØ 8 mmØ 8 mm
5PF-P-1300-L5PF-Pdichroic1280 - 1500 nm104 :1> 96 - 98 %5 mmØ 8 mmØ 8 mm
5PF-C-400-S5PF-Ccube390 - 480 nm104 :1> 95 %4 mmØ 8 mm-
5PF-C-450-S5PF-Ccube450 - 700 nm104 :1> 95 %4 mmØ 8 mm-
5PF-C-750-S5PF-Ccube750 - 1100 nm104 :1> 95 %4 mmØ 8 mm-
5PF-C-1100-S5PF-Ccube1100 - 1700 nm104 :1> 98 %4 mmØ 8 mm-
5PF-C-400-L5PF-Ccube390 - 480 nm104 :1> 95 %4 mmØ 8 mmØ 8 mm
5PF-C-450-L5PF-Ccube450 - 700 nm104 :1> 95 %4 mmØ 8 mmØ 8 mm
5PF-C-750-L5PF-Ccube750 - 1100 nm104 :1> 95 %4 mmØ 8 mmØ 8 mm
5PF-C-1100-L5PF-Ccube1100 - 1700 nm104 :1> 98 %4 mmØ 8 mmØ 8 mm
