5PF-C-750-S

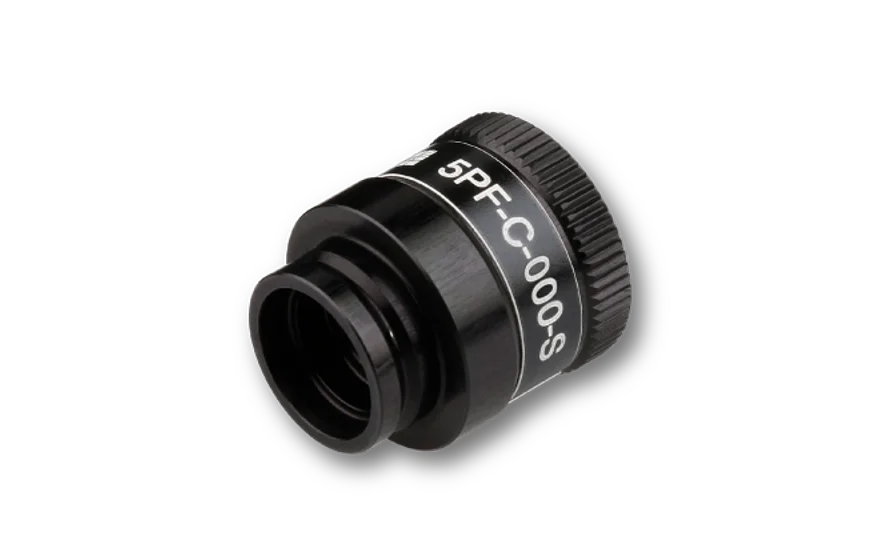

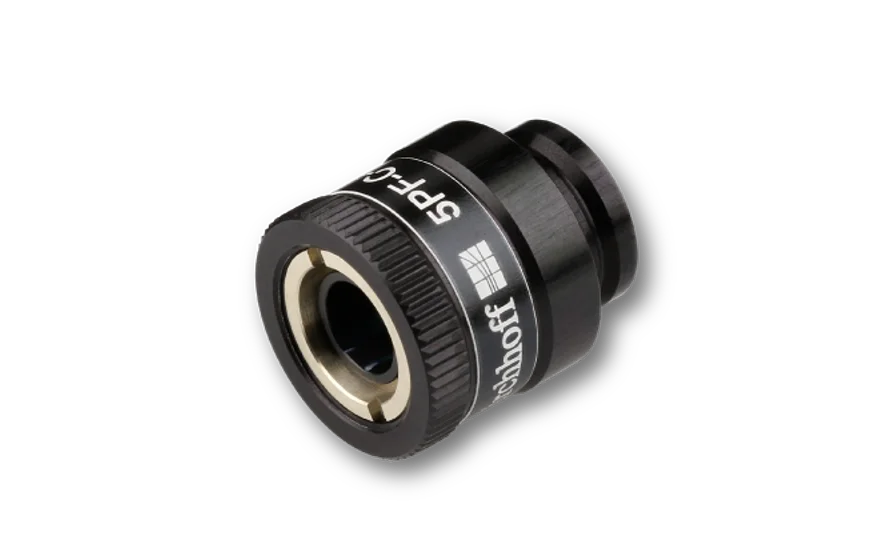

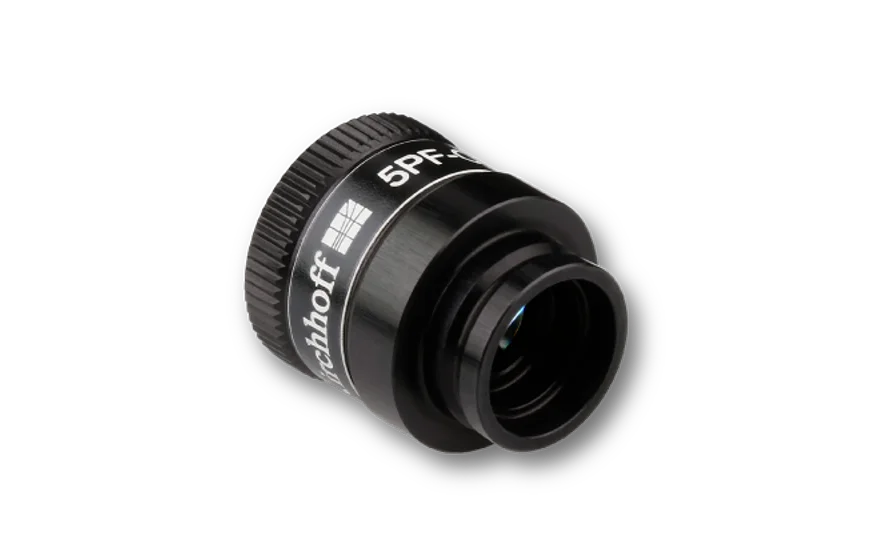

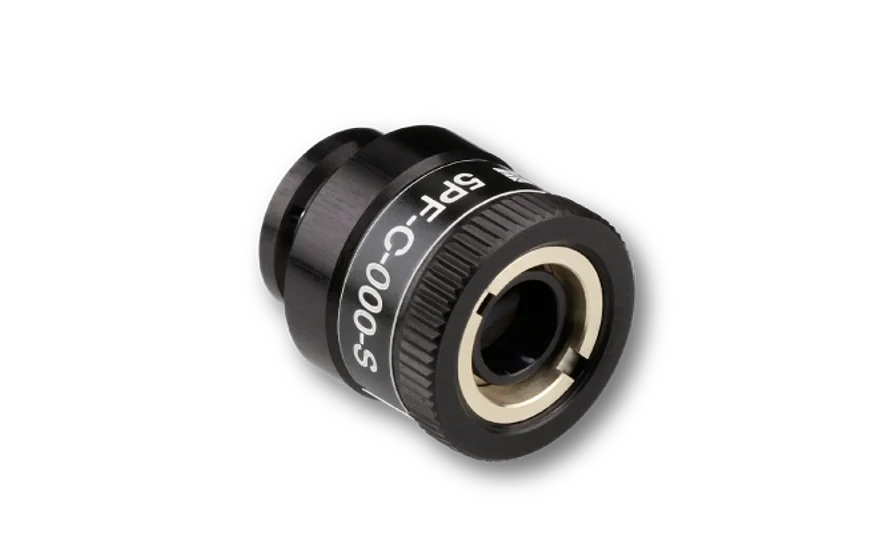

Polarization beam splitter cube (short version)

5PF-C-xxx-S
5PF-C-xxx-S
5PF-C-xxx-S
5PF-C-xxx-S

Features

Polarization filter with system mount Ø 8 mm for attaching to 60FC Fiber Collimators (with outer diameter Ø 12 mm).
This filter transmits only the linear polarized component of the radiation.
  • Polarization beam splitter cube with deflection of the unwanted orthogonally polarized radiation
  • Polarization extinction ratio 10.000:1
  • Surface deviation < λ/4
  • Clear aperture: 4 mm
  • System mount: Ø 8 mm
  • AR Coating: 750 - 1100 nm
  • Short Version without front fitting

Technical data

5PF-C-750-S

Order Code
5PF-C-750-S
Type
Polarizing cube beam splitter
Wavelength range
750 - 1100 nm (residual reflectivity < 1.5 %)
Extinction
10.000:1
Transmission
> 95 %
AR Coating
yes
Surface deviation
< λ/4
Clear aperture
4 mm
System mount
Ø 8 mm
Front fitting
-
Housing material
Black anodized aluminum
Weight
2 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

5PF-C-xxx-S

Downloads

921120280300.pdf (Dimensional drawing)
921120280300.stp (STEP model)
921120280300.stp (STEP model, for registered users only)
