Clamp Collars series CC

for all collimators with flange, different sizes

Clamp collars can be used to mount all collimators with flange to either another setup or to a customer-specific counterpart. Several sizes are available

Clamp collar CC-32

Products

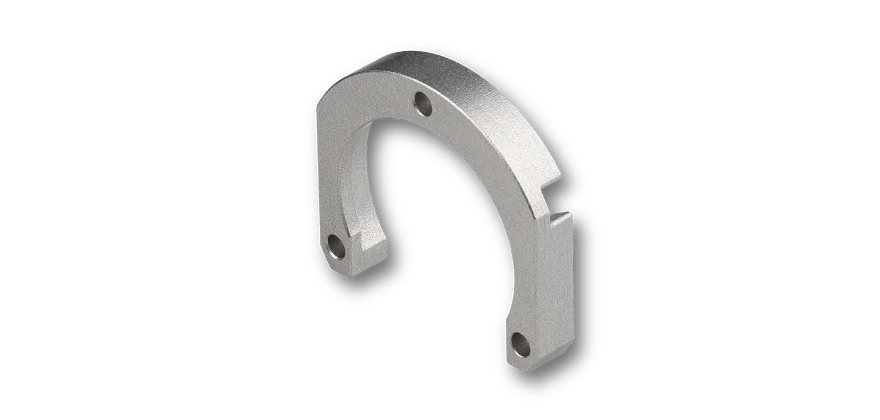

CC-25-4

Clamp Collar for fiber collimators series 60FC-L with diameter Ø 25/28 mm

and focal length f' 20 - 60 mm.

Suitable for integration into the multicube system

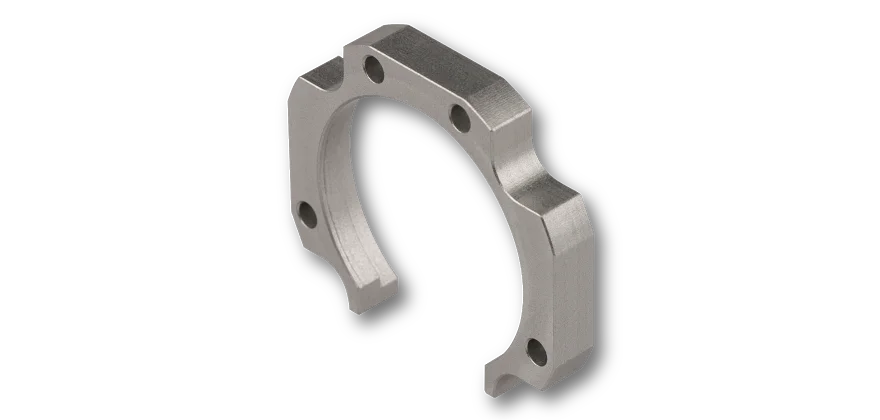

CC-25-3

Clamp Collar for fiber collimators series 60FC-L with diameter Ø 25/28 mm

and focal length f' 20 - 60 mm.

Suitable for the mounting plate 68MC-AP-25-30/60

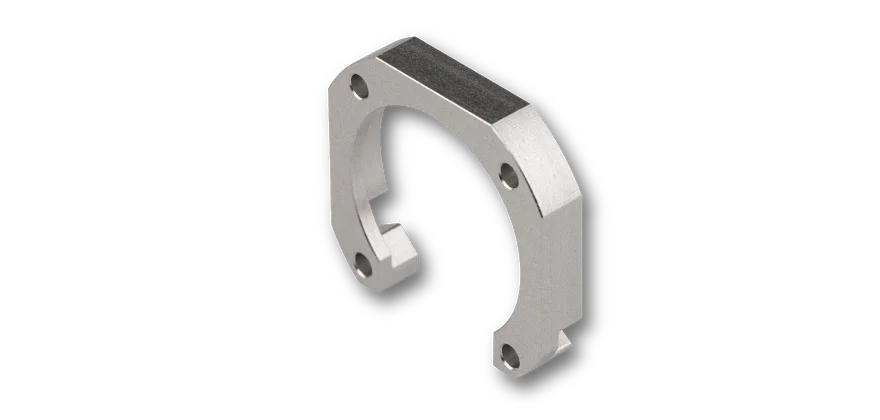

CC-32

Clamp Collar for fiber collimators series 60FC-L/T/Q with diameter Ø 32/34.5 mm

and focal length f' 40 - 100 mm.

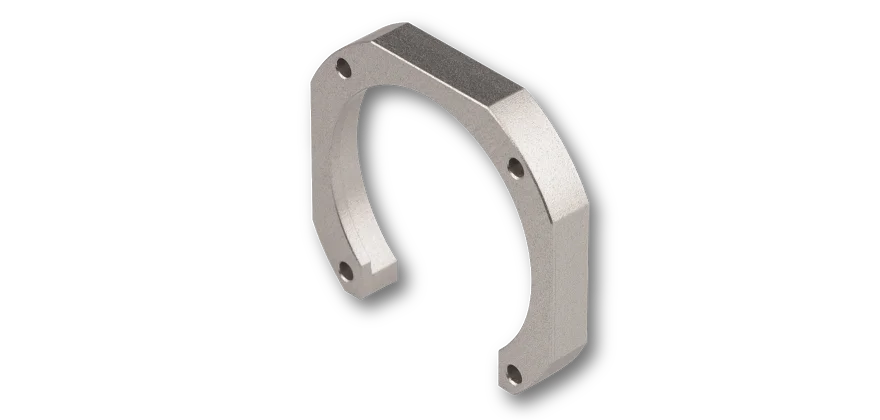

CC-32-MC

Clamp Collar for fiber collimators series 60FC-L/T/Q with diameter Ø 32/34.5 mm

and focal length f' 40 - 100 mm.

Suitable for integration into the multicube system

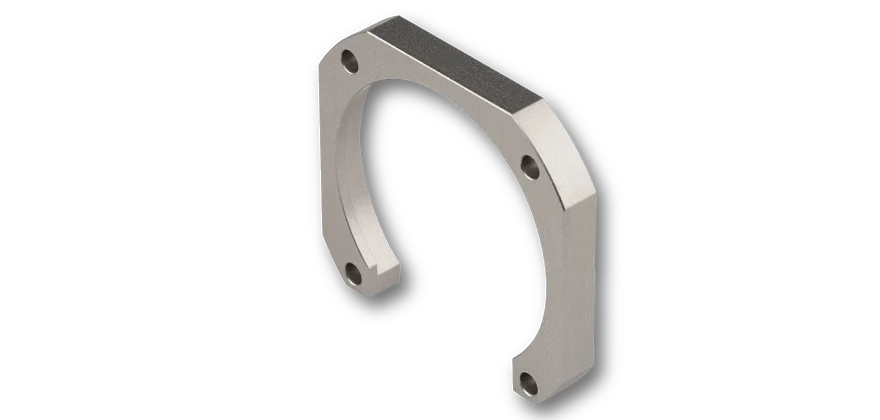

CC-45

Clamp Collar for fiber collimators series 60FC-L/T/Q with diameter Ø 45/49 mm

and focal length f' 125 mm.

CC-55

Clamp Collar for fiber collimators series 60FC-L/T/Q with diameter Ø 55/59 mm

and focal length f' 100 mm - 200 mm.

Order Options

Order COde	Series	For Diamter		Focal Length	Mounting Plate
CC-25-4	60FC-L	25/28 mm	AND	20 mm - 60 mm	48MC-MP-25
CC-32	60FC-L/T/Q	32/34.5 mm	AND	40 mm - 100 mm	-
CC-32-MC	60FC-L/T/Q	32/34.5 mm	AND	40 mm - 100 mm	48MC-MP-32
CC-45	60FC-L/T/Q	45/49 mm	AND	125 mm	68MC-MP-45
CC-55	60FC-L/T/Q	55/59 mm	AND	100 mm - 200 mm	68MC-MP-55
