CC-32

Clamp Collar for fiber collimators with diameter Ø 32/34.5 mm

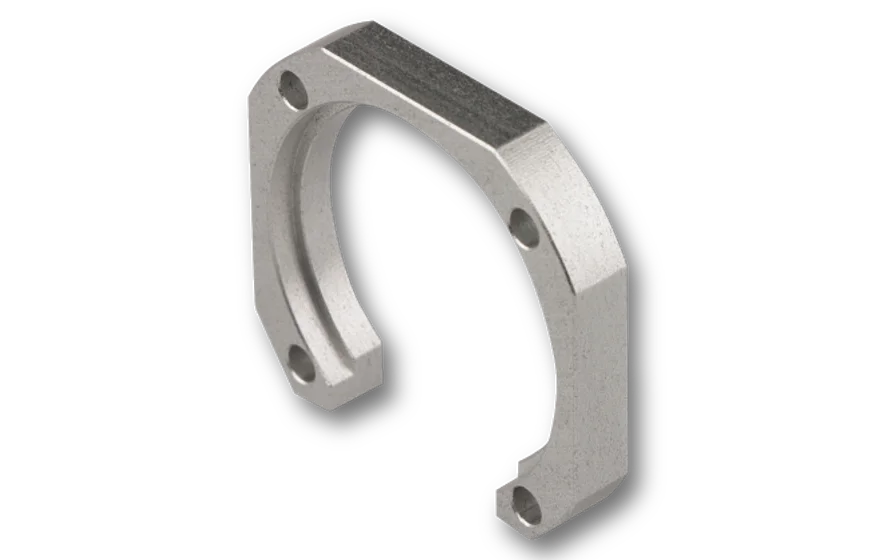

Clamp collar CC-32

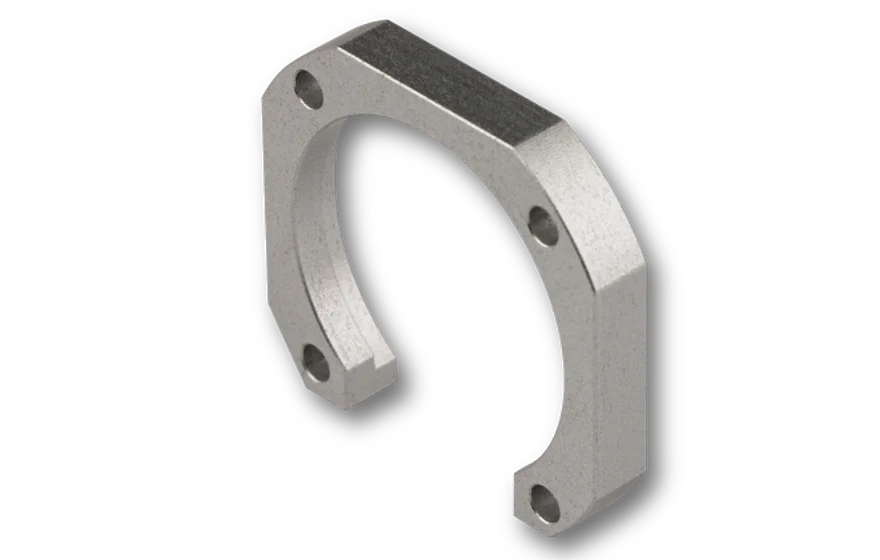

Clamp collar CC-32

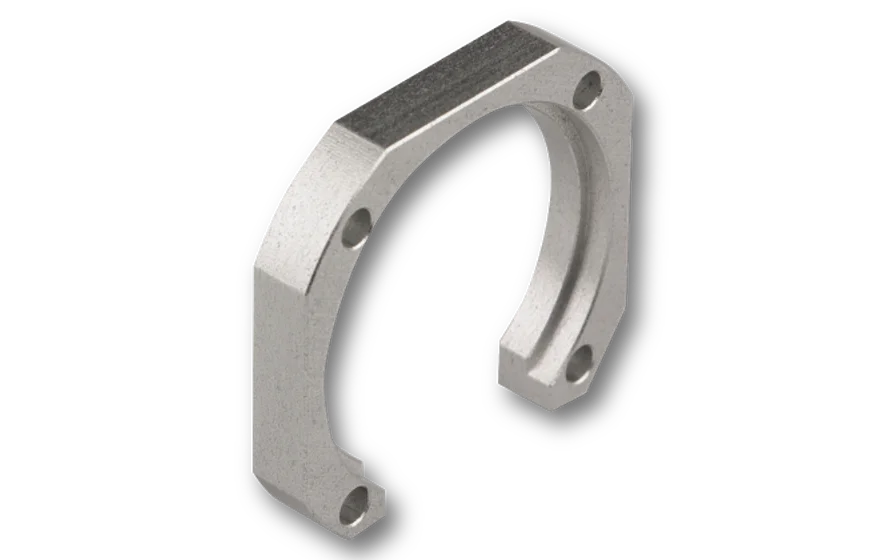

Clamp collar CC-32

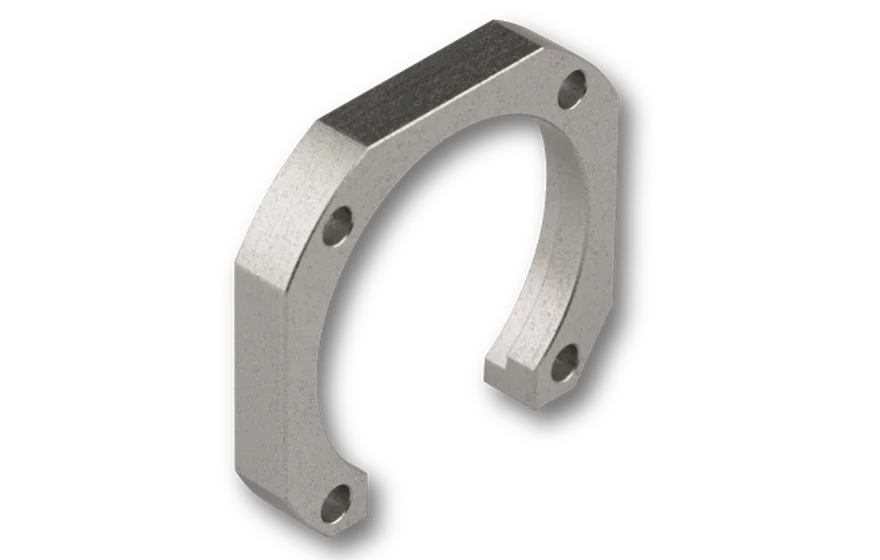

Clamp collar CC-32

Features

Clamp Collar for fiber collimators series 60FC-L/T/Q with diameter Ø 32/34.5 mm
and focal length f' 40 - 100 mm.

Description

Clamp Collar for fiber collimators series 60FC-L/T/Q with diameter Ø 32/34.5 mm and focal length f' 40 - 100 mm.

Technical data

CC-32

Nom. size
Ø 32 mm
Bore holes
4x Ø 3.2 mm
Pitch
Ø 39 mm
Material
Anodized Aluminum

Downloads

980241980400.pdf (Dimensional drawing)
980241980400.stp (STEP model)
980241980400.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

Mounting plate for Ø 32 mm.
