48MC-MP-25

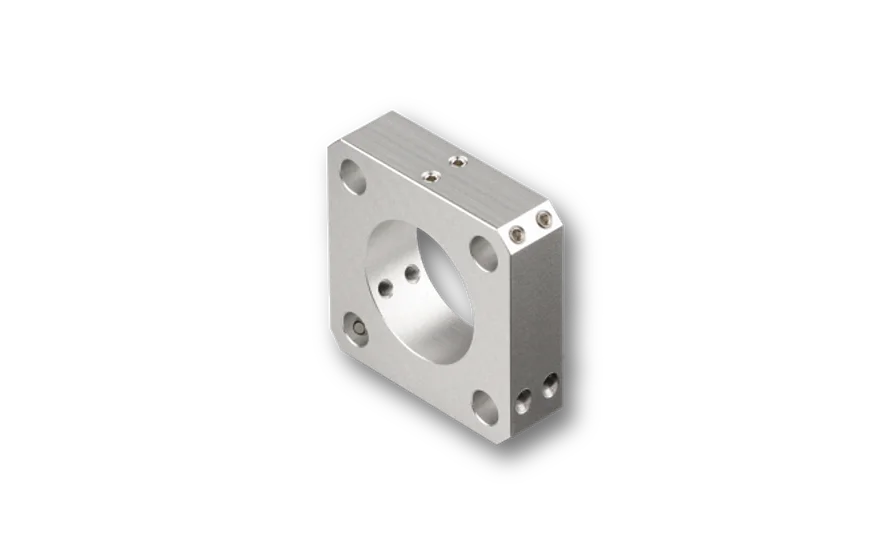

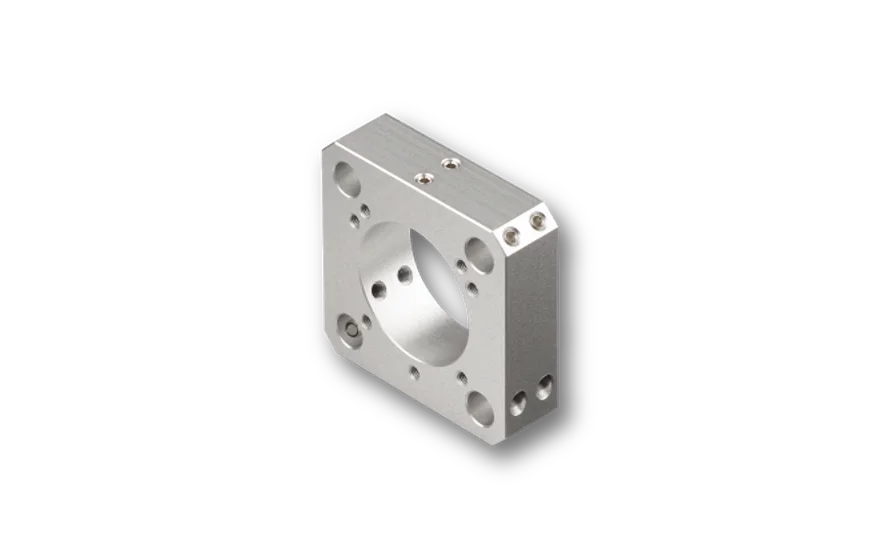

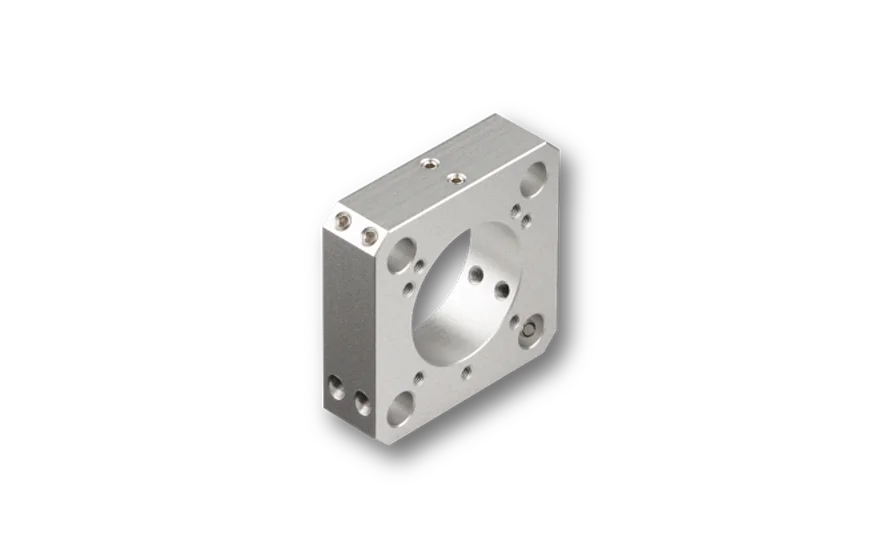

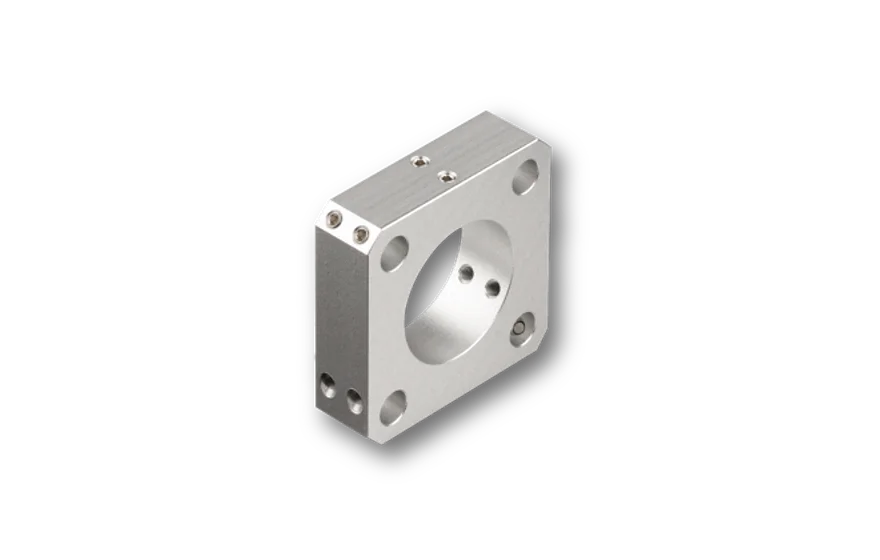

Mounting plate for the Schäfter+Kirchhoff multicube™ system

Mounting plate 48MC-MP-25
Mounting plate 48MC-MP-25
Mounting plate 48MC-MP-25
Mounting plate 48MC-MP-25
Mounting plate 48MC-MP-25
Mounting plate 48MC-MP-25
Mounting plate 48MC-MP-25
Mounting plate 48MC-MP-25

Features

Mounting plate for the Schäfter+Kirchhoff multicube™ system.
For integration of components with Ø 25 mm outer diameters such as fiber collimators.
Direct attachment to post mounts using the M4 thread.

Description

Mounting plate for the Schäfter+Kirchhoff multicube™ system.

For integration of components with Ø 25 mm outer diameters such as fiber collimators.

Direct attachment to post mounts using the M4 thread.

Technical data

48MC-MP-25

Order Code
48MC-MP-25
Dimensions
42 x 42 x 12 mm
Fitting bore
Ø 25 mm
Material
Black anodized aluminum
Weight
34.5 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

48MC-MP-25

FAQ

  • Compatability of the multicube system
    • Is my system compatible to established 30 mm cage systems or microbench systems?
      The multicube components of series 48 have a rod hole distance of 30 mm. You can attach systems based on those components easily to a 30 mm cage systems or microbench system. More informaion can be found here.

      If you are working with a system based on series 68, there are adapters available, so that they can be used with 30 mm cage systems as well.
    • Is my system compatible to established 60 mm cage systems?

      The multicube components of series 68 have a rod hole distance of 60 mm. You can attach systems based on those components easily to a 60 mm cage systems or microbench system. More informaion can be found here.

      If you are working with a system based on series 48, there are adapters available, so that they can be used with 60 mm cage systems as well.

Downloads

Dimensional drawing
980910330201_kuz.pdf (Dimensional drawing)
STEP model
980910330201.stp (STEP model)
STEP model
980910330201.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

CC-25-4
Clamp Collar for fiber collimators with diameter Ø 25/28 mm
