68MC-MP-55

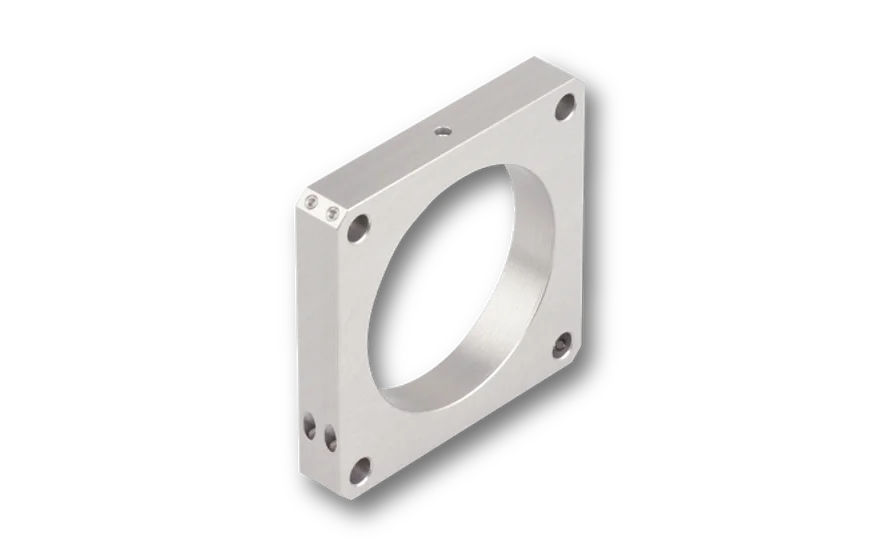

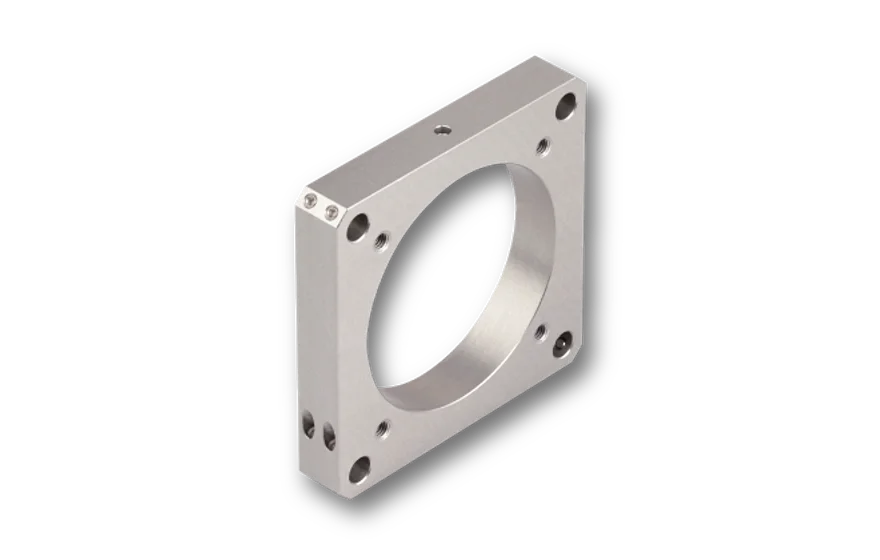

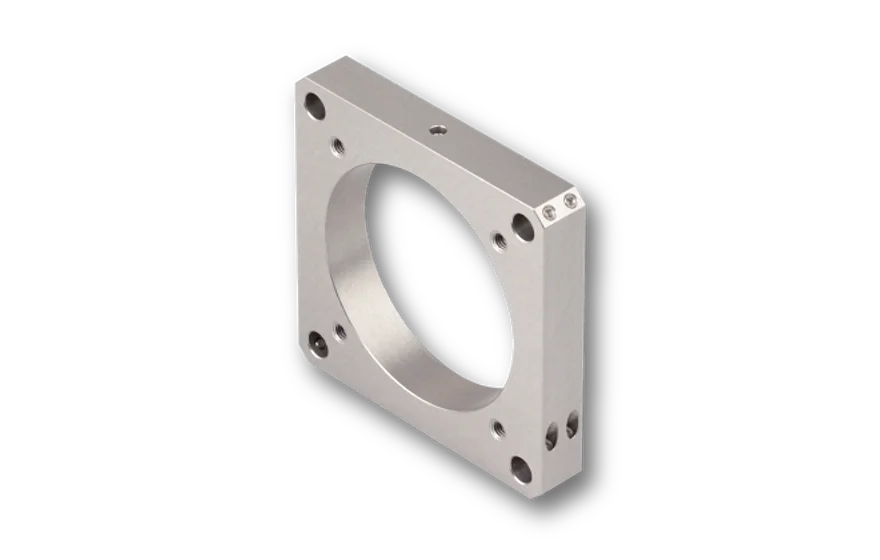

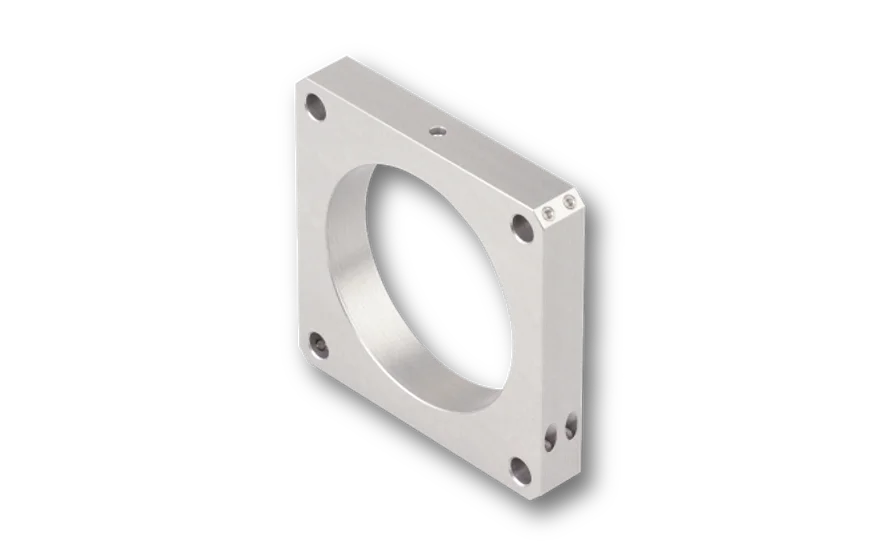

Mounting plate for Ø 55 mm.

68MC-MP-55
68MC-MP-55
68MC-MP-55
68MC-MP-55

Features

This mounting plates allows to hold fiber collimators with Ø 55 mm diameter and can be adapted to the Schäfter+Kirchhoff multicube™ system and the 30 mm cage system. It can be used with established* 60 mm cage systems directly.


*Schäfter+Kirchhoff has a high demand for quality and accuracy. The tight tolerances associated with this can in individual cases lead to discrepancies with the imperial dimensions of some cage systems. Please contact us if problems occur.

Technical data

68MC-MP-55

Dimensions (for a complete dimensional drawing please refer to the downloads section)

68MC-MP-55

FAQ

    • Is my system compatible to established 30 mm cage systems or microbench systems?
      The multicube components of series 48 have a rod hole distance of 30 mm. You can attach systems based on those components easily to a 30 mm cage systems or microbench system. More informaion can be found here.

      If you are working with a system based on series 68, there are adapters available, so that they can be used with 30 mm cage systems as well.
    • Is my system compatible to established 60 mm cage systems?

      The multicube components of series 68 have a rod hole distance of 60 mm. You can attach systems based on those components easily to a 60 mm cage systems or microbench system. More informaion can be found here.

      If you are working with a system based on series 48, there are adapters available, so that they can be used with 60 mm cage systems as well.

Downloads

980241900100.pdf (Dimensional drawing)
980241900100.stp (STEP model)
980241900100.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

Clamp Collar for fiber collimators with diameter Ø Ø 55/59 mm
