CC-32-MC

Clamp Collar for fiber collimators with diameter Ø 32/34.5 mm

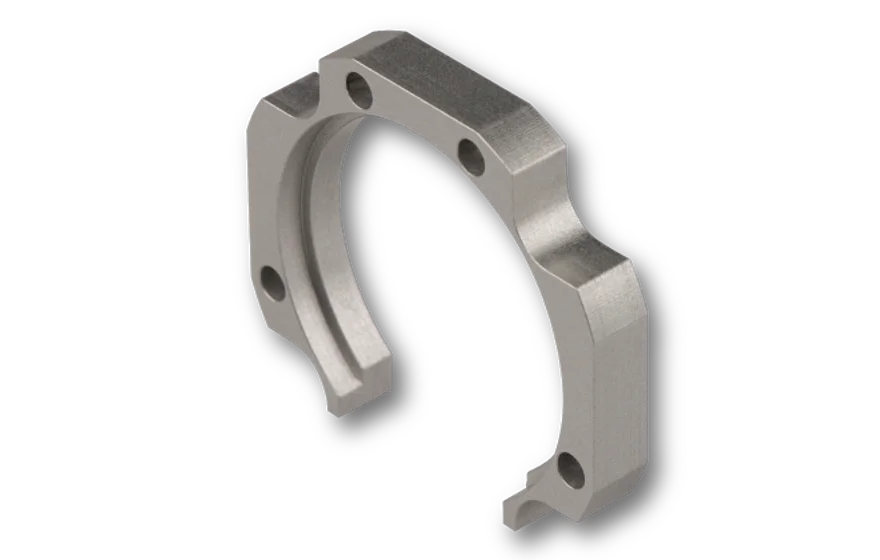

Clamp collar CC-32-MC

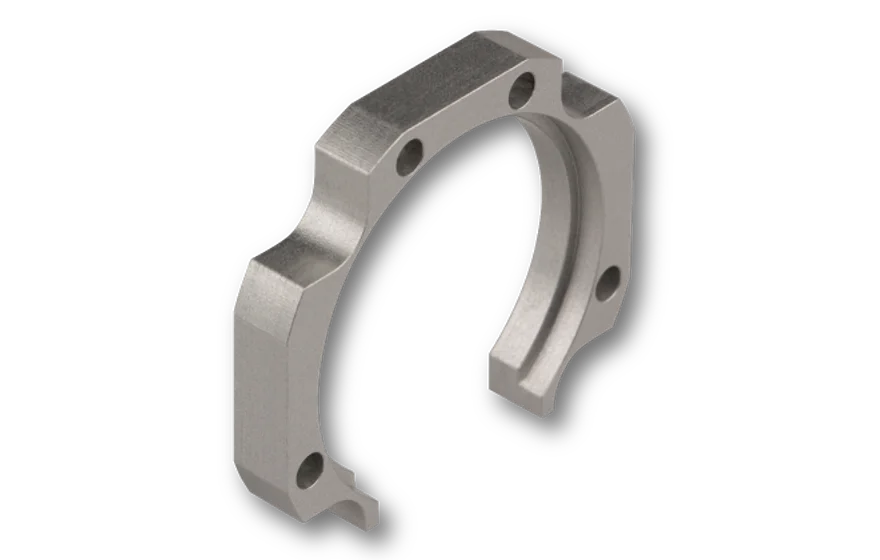

Clamp collar CC-32-MC

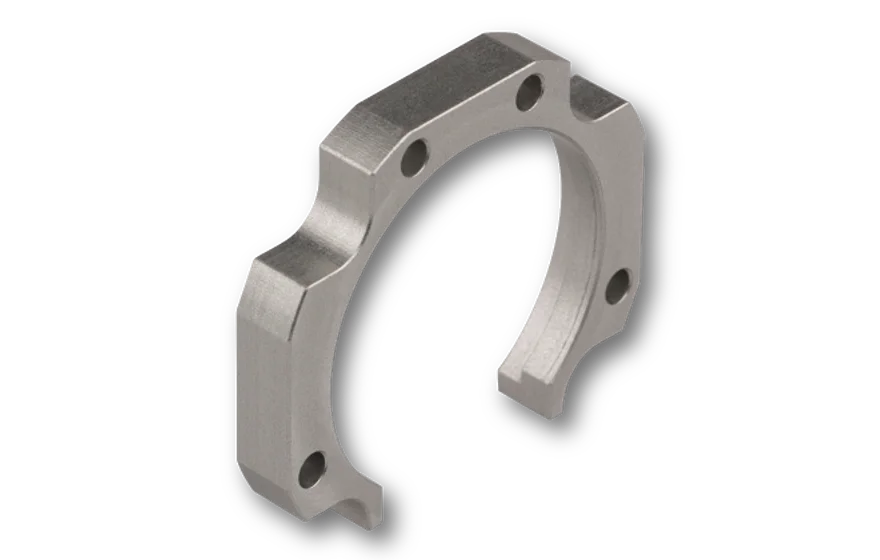

Clamp collar CC-32-MC

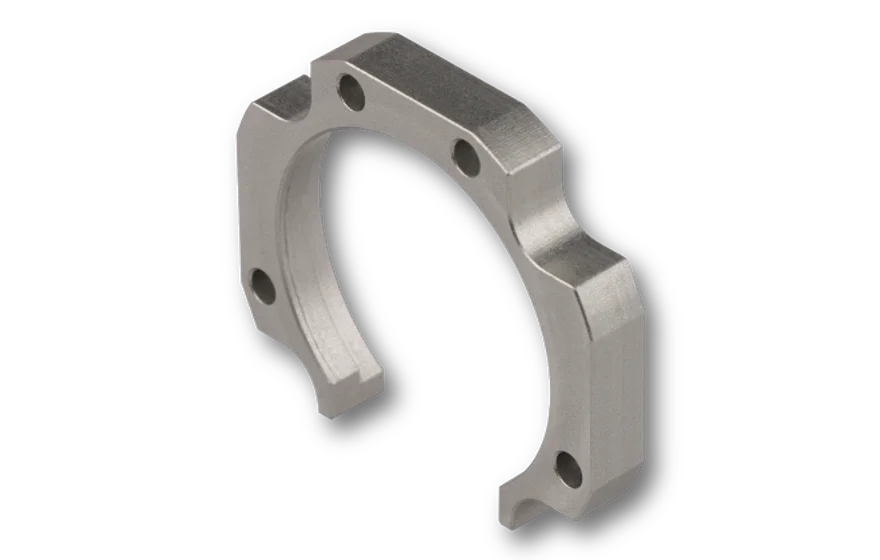

Clamp collar CC-32-MC

Features

Clamp Collar for fiber collimators series 60FC-L/T/Q with diameter Ø 32/34.5 mm
and focal length f' 40 - 100 mm.
Suitable for integration into the multicube system

Description

Clamp Collar for fiber collimators series 60FC-L/T/Q with diameter Ø 32/34.5 mm and focal length f' 40 - 100 mm. Suitable for integration into the multicube system

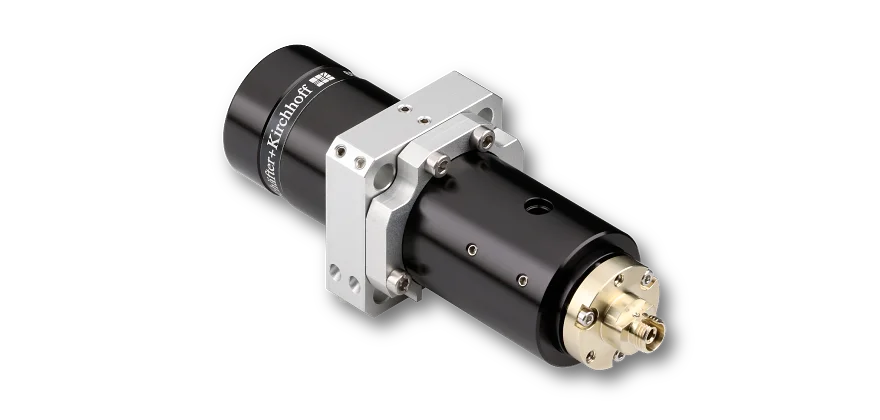

Example of use

Downloads

980241980300.pdf (Dimensional drawing)
980241980300.stp (STEP model)
980241980300.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

Mounting plate for Ø 32 mm.
Mounting plate for the Schäfter+Kirchhoff multicube™ system
