Infrared Machine Vision Laser Focus with a circular beam profile

Series 13MC/13MMC, 5MC, 13MM and 5MM

Low Noise Machine Vision Laser Focus series LNC-13MC+96CM (IR)
Low Noise Machine Vision Laser Focus series LNC-13MC+96CM (IR)

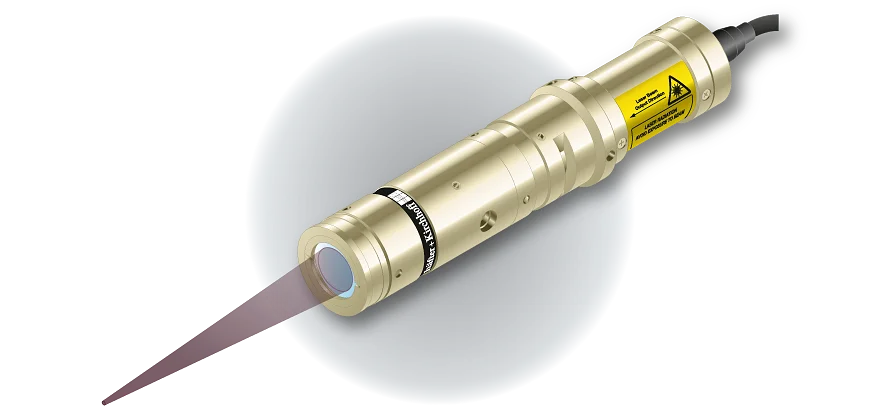

Representative product images. Individual product images are found on the individual product pages.

Features

Infrared machine vision laser focus with approx. circular Gaussian beam profile. This includes lasers of series 13MC/13MMC, 13MM, 5MM and 5MC. The series are available as Micro (smaller line widths) or Macro version (extended depth of focus).
  • Spot with circular beam profile
  • Laser Focus Generator series 13MC/13MMC
    • Rotationally symmetric, Gaussian beam profile
  • Laser Focus Generator series 13MM
    • Circular beam profile
    • Extended depth of focus
  • Laser Focus Generator series 5MM
    • Compact
    • Circular beam profile
    • Extended depth of focus
  • Laser Focus Generator series 5MC
    • Compact
    • Rotationally symmetric, Gaussian beam profile
  • IR Machine Vision Laser
  • Micro Line Generator for small laser line widths and high power density in the focal plane
  • Macro Line Generator for extended depth of focus
IR Machine Vision LaserMicro Line Generator for small laser line widths and high power density in the focal planeMacro Line Generator for extended depth of focus

Description

The laser diode beam sources series 13MC/13MMC, 13MM and 5MC produce a circular laser spot. They have different intensity distributions/beam profiles.

13MC vs. 13MM and 5MC
The laser diode beam source series 13MC produces a rotationally symmetric, circular laser spot with Gaussian intensity distribution. The corresponding series 13MMC produces a rotationally symmetric laser spot with extended depth of focus. The beam profile is rotationally symmetric and approx. Gaussian.

The laser diode beam source series 13MM and 5MM produce a circular laser spot with extended depth of focus. More precisely it has an elliptical intensity distribution clipped by a circular aperture.The beam profile is approx. Gaussian

The compact Laser Focus Generator series 5MC produces a rotationally symmetric, circular laser spot with Gaussian intensity distribution.

Micro and Macro lasers
The lasers of series 13MC and 5MC are Laser Micro Focus Generators designed to produce spots with small spot size. They have a small depth of focus (in this case the depth of focus is the Rayleigh range). Laser Macro Focus Generators like the corresponding lasers of series 13MMC have common basic optical features but are designed to generate laser spots with an extended depth of focus.The lasers of series 13MM and 5MM are also Macro Focus Generators with extended depth of focus.

Electronics
The lasers have integrated electronics for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer. Optionally the lasers can be equipped with RS232 serial interface for laser control and data read-out. Please note that the compact version 5M has different electronic features and is not available with RS232 interface.

Adjusting the working distance
For lasers of series 13MC/13MMC, 13MM, 5MM and 5MC the working distance can be adjusted by adjusting the focus setting. Please note that the spot diameter increases proportionally to the working distance. A fine-adjustment of the distance between laser and target is recommended for fine-focusing in order to achieve minimal spot size.

Optional: Low Noise Version
The laser series 13MC/13MMC and 13MM is also available as a Low Noise version LNC-13MC (Micro), LNC-13MMC (Macro) and LNC-13MM (Macro). These lasers are low noise (typ. < 0.15% of Po (RMS, Bandwidth < 1 MHz)) and operate mode-hopping free. Due to the reduced coherence length the speckle contrast is lowered. However this effect is smaller for smaller lines and spots. (Po is the maximum specified output power.)

These high quality lasers can e.g. be used for machine vision applications.
