Blue Semi-telecentric Machine Vision Laser Line with Gaussian intensity distribution

Series 5LT/5LTM

Laserdiodenstrahlquelle Serie 5LT (blau)
Laserdiodenstrahlquelle Serie 5LT (blau)

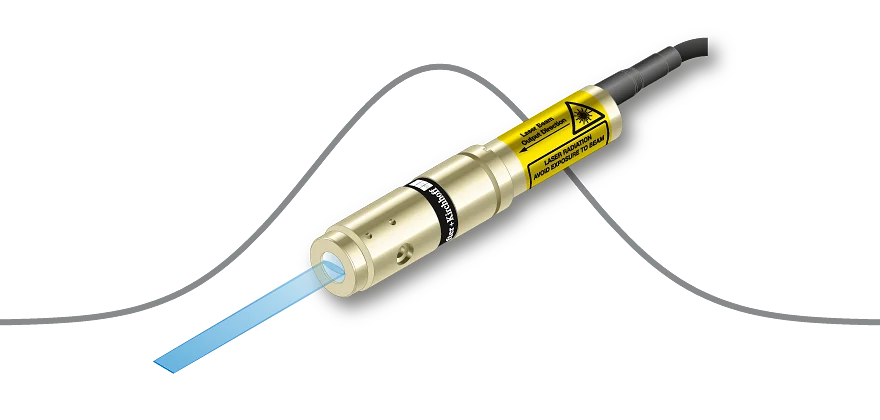

Representative product images. Individual product images are found on the individual product pages.
Blue Machine Vision LaserBlue
Laser
Micro Line Generator for small laser line widths and high power density in the focal planeMicro
Line
Macro Line Generator for extended depth of focusMacro
Line

Features

Blue semi-telecentric machine vision laser line with Gaussian intensity distribution. This includes lasers of series 5LT/5LTM. Both series are available as Micro (smaller line widths) or Macro version (extended depth of focus).
  • Semi-telecentric
  • Gaussian intensity distribution
  • Laser Line Generator series 5LT-1/5LTM-1
    • Line length ca. 4.8 mm
  • Laser Line Generator series 5LT-2/5LTM-2
    • Line length ca. 2 mm

Description

The laser diode beam sources series 5LT-1/5LTM-1 and 5LT-2/5LTM-2 produce semi-telecentric laser lines with a Gaussian intensity distribution along the laser line. They differ in their line length and line width.

5LT-1 vs. 5LT-2
The laser diode beam sources series 5LT-1 produce a semi-telecentric laser line with a line length in the range of 4.8 mm. For most laser diodes the intensity profile is Gaussian in line direction clipped by an aperture at line length 4.8 mm with an edge intensity of typ. <40%. In some cases the line length is slightly smaller. In this case the line length is given on the 13.5%-level and the beam is Gaussian in line direction and truncated at 4.8 mm. The line width is constant along the laser line. Across the laser line the intensity distribution is Gaussian for series 5LT-1 and approx. Gaussian for series 5LTM-1.

The laser diode beam sources series 5LT-2 produce a semi-telecentric laser line in the range of 2 mm line length. The line length is given on the 13.5%-level. The intensity profile is Gaussian in line direction. The line width is constant along the laser line. Across the laser line the intensity distribution is Gaussian for series 5LT-2 and approx. Gaussian for series 5LTM-2.

Micro and Macro lasers
The lasers of series 5LT-1 and 5LT-2  are Laser Micro Line Generators designed to produce lines with small line width. They have a small depth of focus (in this case the depth of focus is the Rayleigh range). Laser Macro Line Generators like the corresponding lasers of series 5LTM-1 and 5LTM-2 have common basic optical features but are designed to generate laser lines with an extended depth of focus.

Electronics
The lasers have integrated electronics for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer. Optionally the lasers can be equipped with RS232 serial interface for laser control and data read-out. Please note that the compact version (more details below) has different electronic features.

Adjusting the working distance
For lasers of series 5LT-1 and 5LT-2 the working distance is fixed. A fine-adjustment of the distance between laser and target is recommended for fine-focusing in order to achieve minimal line width.

Optional: Low Noise Version
The laser series 5LT-1/5LT-2 is also available as a Low Noise version LNC-5LT-1 (Micro) and LNC-5LTM-1 (Macro) Low Noise version LNC-5LT-2 (Micro) and LNC-5LTM-2 (Macro). These lasers are low noise (typ. < 0.15% of Po (RMS, Bandwidth < 1 MHz)) and operate mode-hopping free. Due to the reduced coherence length the speckle contrast is lowered. However this effect is smaller for smaller lines and spots. (Po is the maximum specified output power.)

Compact Version
The laser series 5LT-1/5LTM-1 as well as 5LT-2/5LTM-2 are also available as a compact version 5LT-1+25CM (Micro), 5LTM-1+25CM (Macro), 5LT-2+25CM (Micro) and 5LTM-2+25CM (Macro). Please note that these have a different electronics type and are not available with RS232 interface or as a Low Noise LNC version.

These high quality lasers can e.g. be used for machine vision applications, laser triangulation or laser light sectioning.

Technotes

Downloads

Technote
Article_LaserLines.pdf (Technote)

This downloads section only includes general downloads for the complete series.
Please access the individual product pages (using the product configurator, the product list, order options or the search button if you have a complete order code). Here you will find specific downloads including technical drawings or stepfiles.
