Laser Diode Collimator series LNC-56CM/LNC-56CR

Low Noise Collimator with elliptical Gaussian beam profile

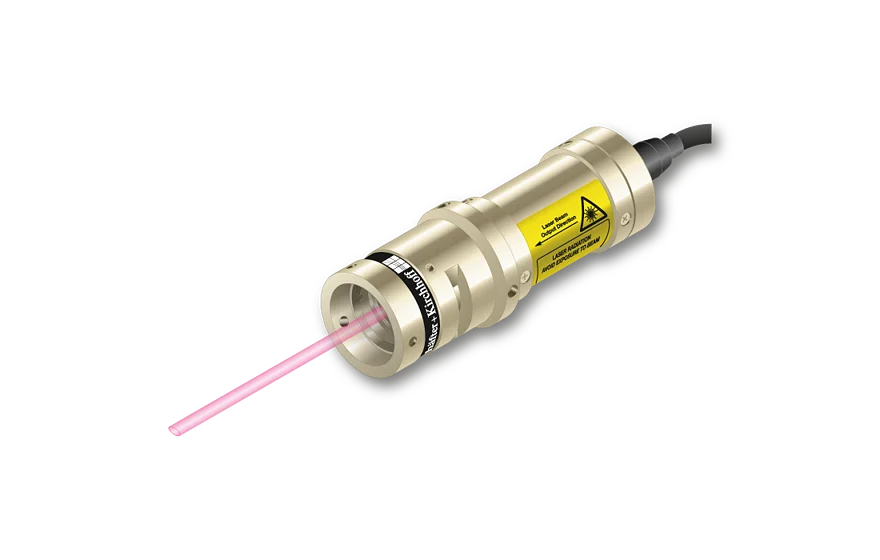

Low Noise Machine Vision Laser Collimator series LNC-56CM

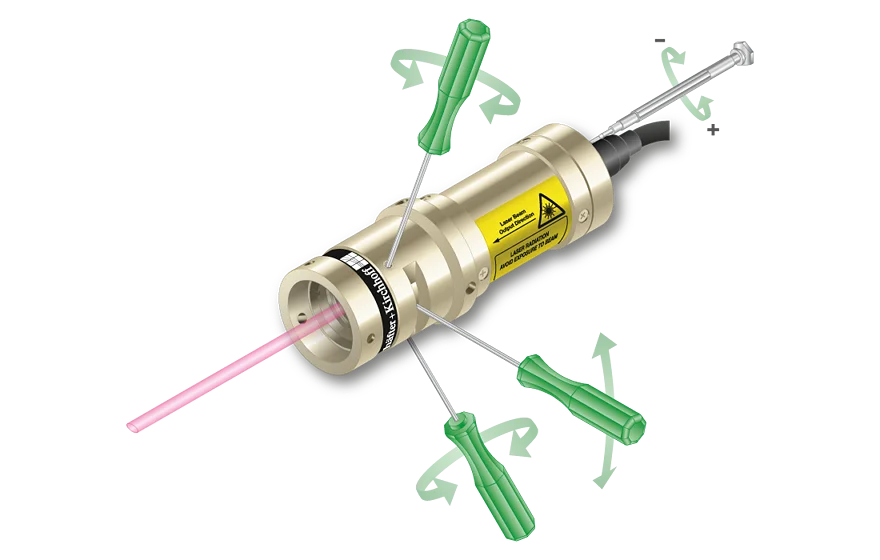

Low Noise Machine Vision Laser Collimator series LNC-56CM with tools

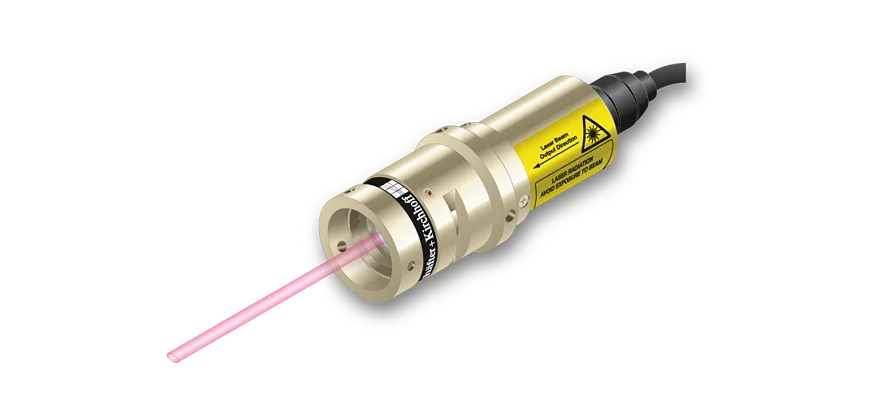

Low Noise Machine Vision Laser Collimator series LNC-56CR

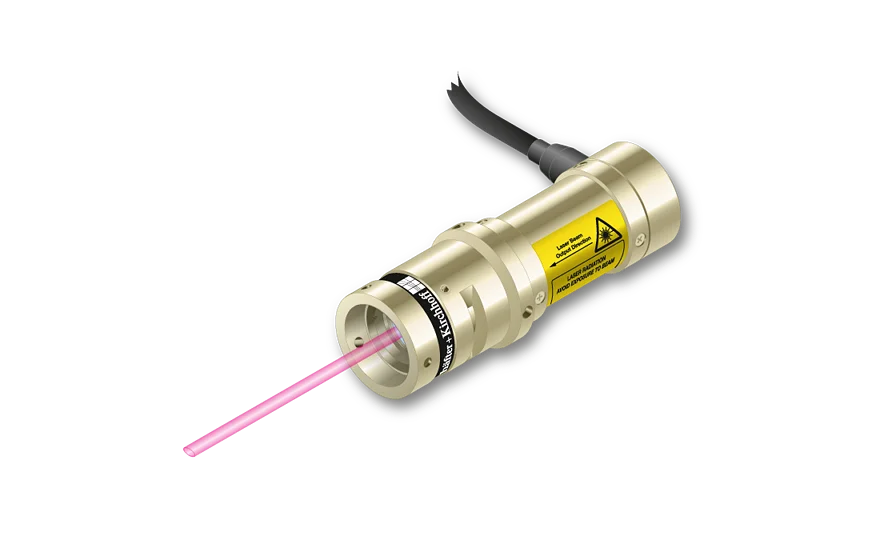

Low Noise Machine Vision Laser Collimator series LNC-56CR
Representative product images. Individual product images are found on the individual product pages.

Features

Low noise collimator with elliptical Gaussian beam profile
  • Collimated beam diameters (truncated below the 13.5%-level) max. 13 mm
  • Wavelengths 405 - 830 nm
  • Laser powers up to 40 mW
  • Angled version 56CR
  • Low noise Laser Module (typ. < 0.15 % of Po (RMS, Bandwidth < 1 MHz))
  • Low noise, low coherence laser module (typ. < 0.15 % of Po (RMS, Bandwidth < 1 MHz))

Description

Laser diode collimators transform the divergent light of a laser ­diode into a collimated beam, while maintaining the Gaussian ­intensity distribution and the elliptical intensity profile.

The lasers are low noise (typ. < 0.15 % of Po* (RMS, Bandwidth < 1 MHz)) and operate mode-hopping free. Due to the reduced coherence length the speckle contrast is lowered. However this effect is smaller for smaller lines and spots. (* Po is the maximum specified output power.)

The laser has integrated electronics for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

The collimation can be adjusted by using an eccentric key. Please note that this affects beam parameters like collimated beam diameter and beam divergence.

These high quality lasers can e.g. be used for machine vision applications.

Technotes

Accessories

Hex key WS 1.5
Screwdriver WS 1.6
Mounting Console with flat base plate
Mounting Console with base plate with Montech® profile
