Machine Vision Laser Focus with a circular beam profile

Series 13MC/13MMC, and 13MM and RS232 interface

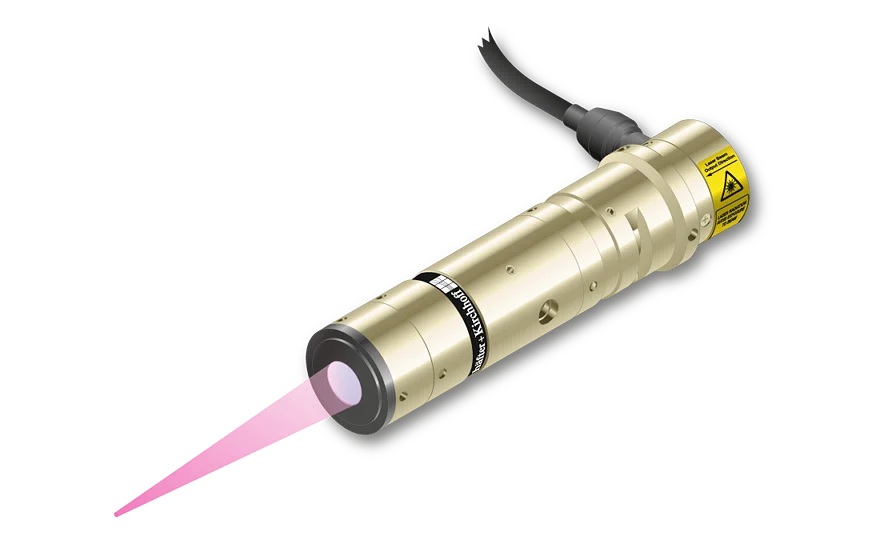

Machine Vision Laser Focus series 13MC

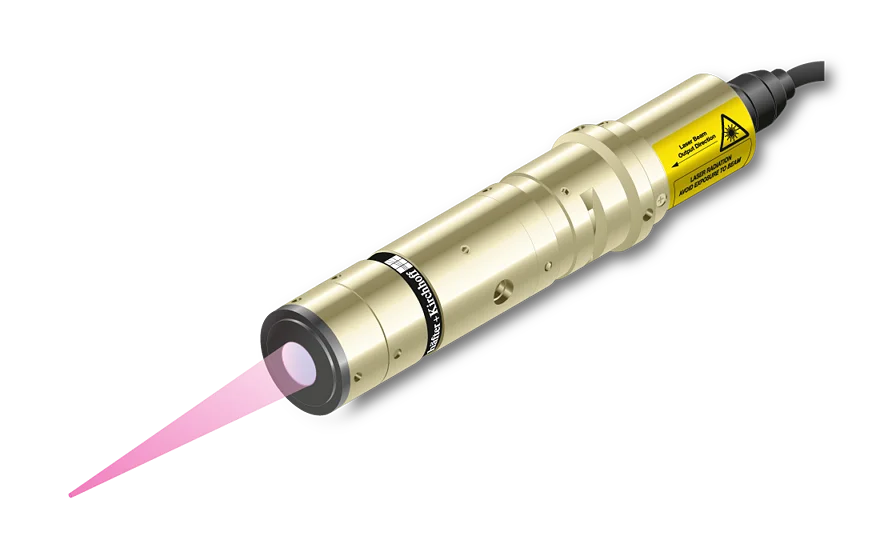

Machine Vision Laser Focus series 13MM
Machine Vision Laser Focus series 13MMC
Machine Vision Laser Focus series 13MC+90CR
13MMC+95CR
Representative product images. Individual product images are found on the individual product pages.

Features

Machine vision laser focus with approx. circular Gaussian beam profile. This includes lasers of series 13MC/13MMC, and 13MM. The series are available as Micro (smaller line widths) or Macro version (extended depth of focus).
  • Spot with circular beam profile
  • RS232 interface
  • Laser Focus Generator series 13MC/13MMC
    • Rotationally symmetric, Gaussian beam profile
  • Laser Focus Generator series 13MM
    • Circular beam profile
    • Extended depth of focus

  • Micro Line Generator for small laser line widths and high power density in the focal plane
  • Macro Line Generator for extended depth of focus
  • With RS232 interface

Description

The laser diode beam sources series 13MC/13MMC, 13MM and 5MC produce a circular laser spot. They have different intensity distributions/beam profiles.

13MC vs. 13MM
The laser diode beam source series 13MC produces a rotationally symmetric, circular laser spot with Gaussian intensity distribution. The corresponding series 13MMC produces a rotationally symmetric laser spot with extended depth of focus. The beam profile is rotationally symmetric and approx. Gaussian.

The laser diode beam source series 13MM produce a circular laser spot with extended depth of focus. More precisely it has an elliptical intensity distribution clipped by a circular aperture.The beam profile is approx. Gaussian

Micro and Macro lasers
The lasers of series 13MC and 5MC are Laser Micro Focus Generators designed to produce spots with small spot size. They have a small depth of focus (in this case the depth of focus is the Rayleigh range). Laser Macro Focus Generators like the corresponding lasers of series 13MMC have common basic optical features but are designed to generate laser spots with an extended depth of focus.The lasers of series 13MM and 5MM are also Macro Focus Generators with extended depth of focus.

Electronics
The lasers have integrated electronics for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

RS232 interface
The lasers are equipped with an RS232 interface for laser control and data read-out. It provides e.g. control of ­laser power or allows to switch the laser ON and OFF and it allows to read and store critical data, like the hours of operation or the laser current for maintenance planning purposes.

Adjusting the working distance
For lasers of series 13MC/13MMC, and 13MM the working distance can be adjusted by adjusting the focus setting. Please note that the spot diameter increases proportionally to the working distance. A fine-adjustment of the distance between laser and target is recommended for fine-focusing in order to achieve minimal spot size.


These high quality lasers can e.g. be used for machine vision applications.
