Fiber Port Cluster 1 ⇾ x

Compact, rugged and highly efficient opto-mechanical unit for splitting multiple ports

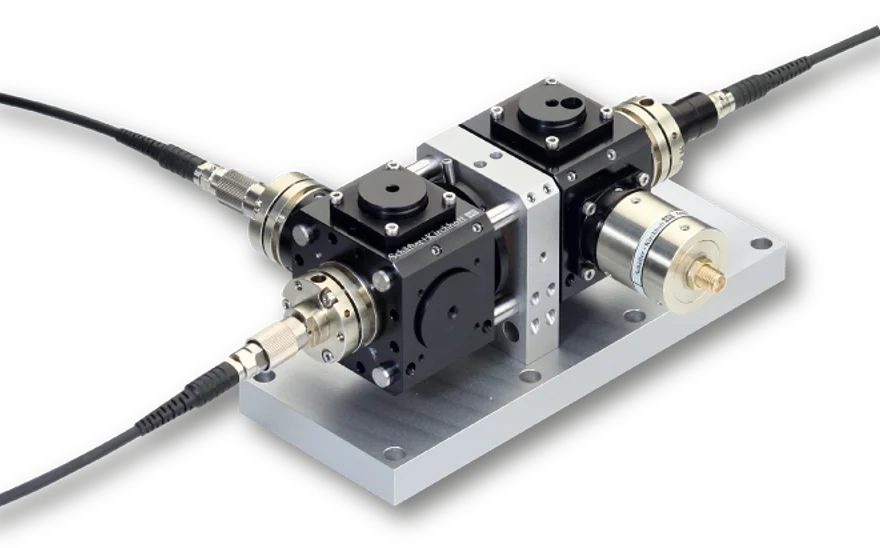

FiberPortCluster_1-2

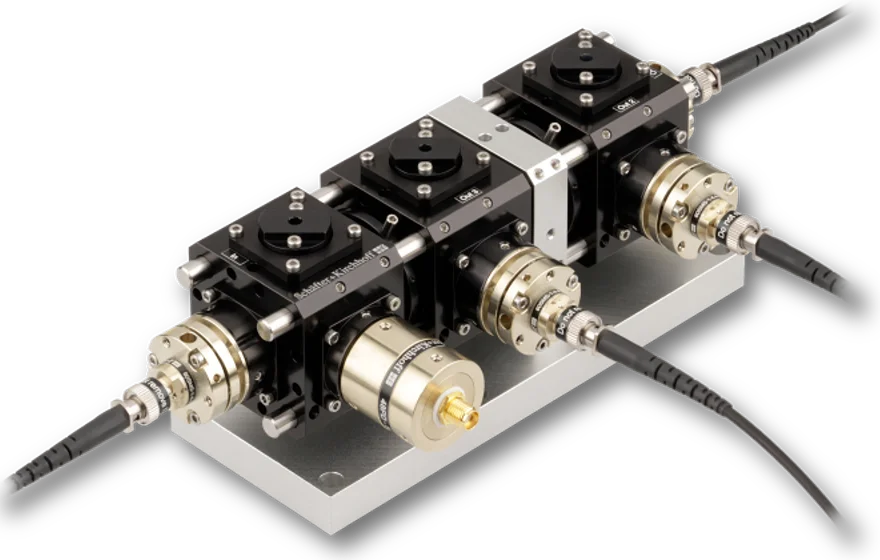

Fiber Port Cluster_1-3

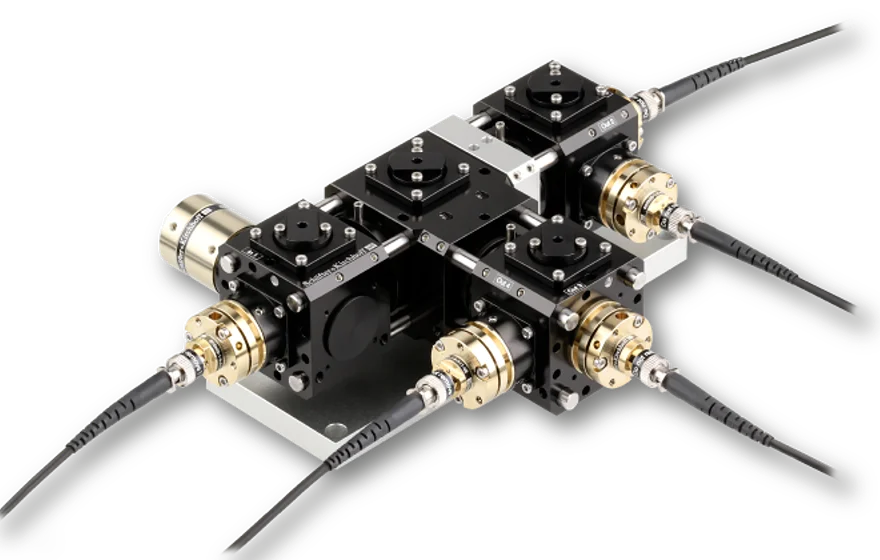

Fiber Port Cluster_1-4

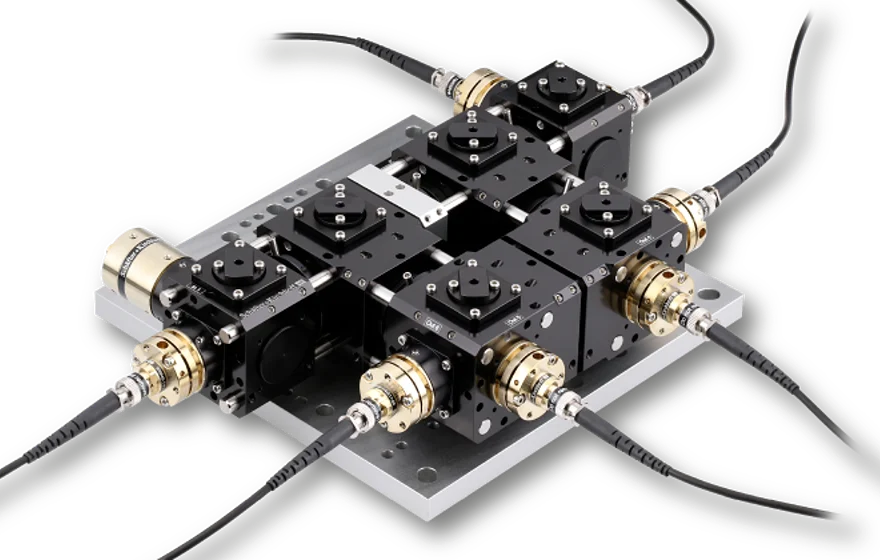

Fiber Port Cluster 1-6

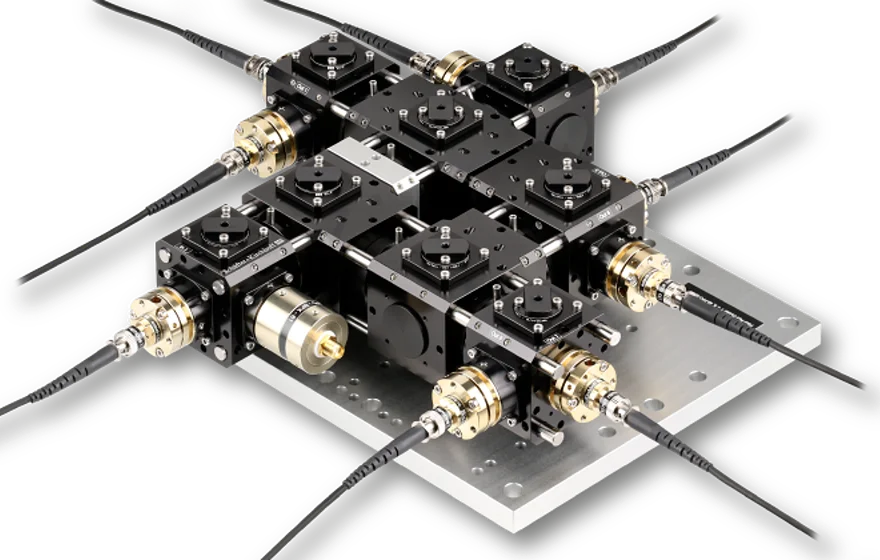

Fiber Port Cluster 1-8

Features

Fiber Port Cluster for one input source

Configuration 1 ⇾ x
Highly efficient coupling into polarization-maintaining fiber cables
Adjustable splitting ratio
Compact, rugged, transportable and sealed opto-mechanical units
Fully fiber-coupled
Very high long-term stability, efficiency and reproducability

Description

These Fiber Port Clusters are compact opto-mechanical units that splits a fiber-coupled source into multiple output fiber cables with high efficiency and variable splitting ratio.

Optical Setup
The input port is fiber-coupled to PM fiber cable. A polarizer defines the input polarization which is necessary for a long term stable splitting ratio.
A photo diode right after the input port allows for a continuous monitoring of the radiation.
Subsequently, the radiation splitting is achieved by using a cascade of rotary half-wave plates in combination with polarization beam splitters. By use of the rotary half-wave plates, almost any desired splitting ratio can be achieved.
At the output ports further polarizers are placed in order to define the polarization at output of the system.

Fiber Couplers
A fundamental component of a Fiber Port Cluster is the Laser Beam Coupler, which is the input into the opto-mechanical unit collimating the input radiation and, finally, couples the radiation back into the polarization-maintaining fiber cables. The stability of the total Fiber Port Cluster is determined by the stability of the laser beam coupler.

Order Options

Order Code	Configuration	Dichroic	Wavelengths	Special Feature
48-FPC-1-2-xxx	1 ⇾ 2	-	523, 767 and 780 nm (others on request)
48-FPC-1-2-xxx-AT	1 ⇾ 2	-	461, 532, 671, 780 and 852 nm (others on request)	Mech. attenuators at the output ports
48-FPC-1-2-xxx_Mod01	1 ⇾ 2	-	523, 767 and 780 nm (others on request)	El. shutters at the output ports
48-FPC-1-3-xxx	1 ⇾ 3	-	461, 689, 767, 780 and 852 nm (others on request)
48-FPC-1-4-xxx	1 ⇾ 4	-	461, 532, 671, 780 and 852 nm (others on request)
48-FPC-1-4-xxx-AT	1 ⇾ 4	-	461, 532, 671, 780 and 852 nm (others on request)	Mech. attenuators at the output ports
48-FPC-1-6-xxx	1 ⇾ 6	-	461, 556, 589, 626, 767, 780 and 852 nm (others on request)
48-FPC-1-8-xxx	1 ⇾ 8	-	461, 556, 589, 626, 767, 780 and 852 nm (others on request)

Technotes

Article - Fiber Port Cluster
Rugged, modular and fiber coupled beam splitting and combining units

Downloads

Article_Cluster.pdf (Technote)

This downloads section only includes general downloads for the complete series.
Please access the individual product pages (using the product configurator, the product list, order options or the search button if you have a complete order code). Here you will find specific downloads including technical drawings or stepfiles.
