48-FPC-1-2-xxx

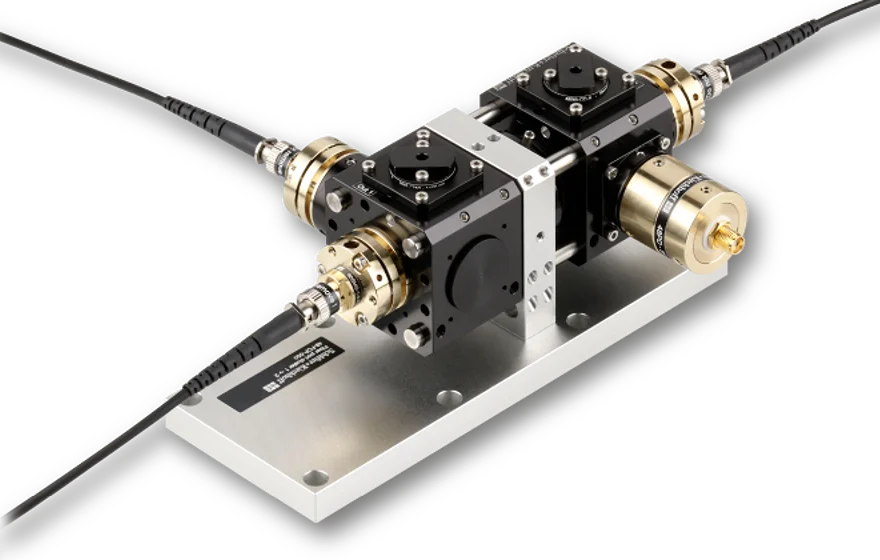

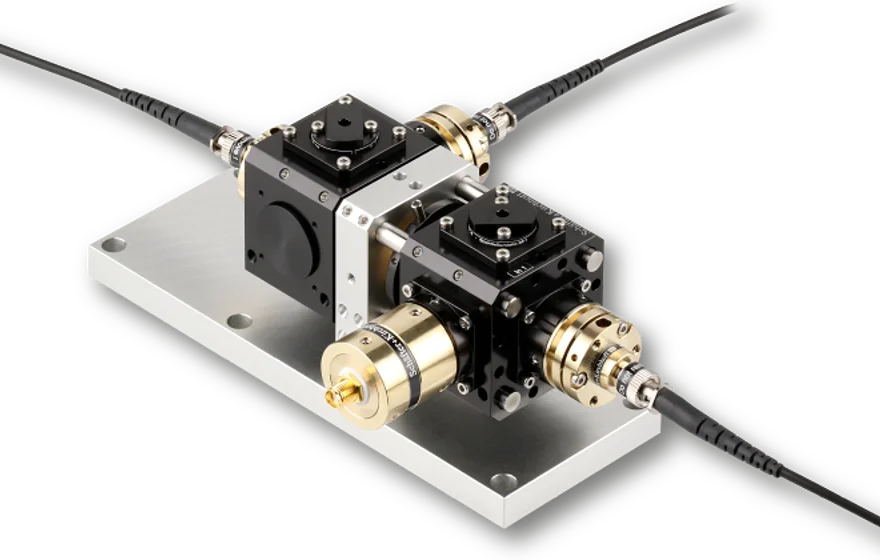

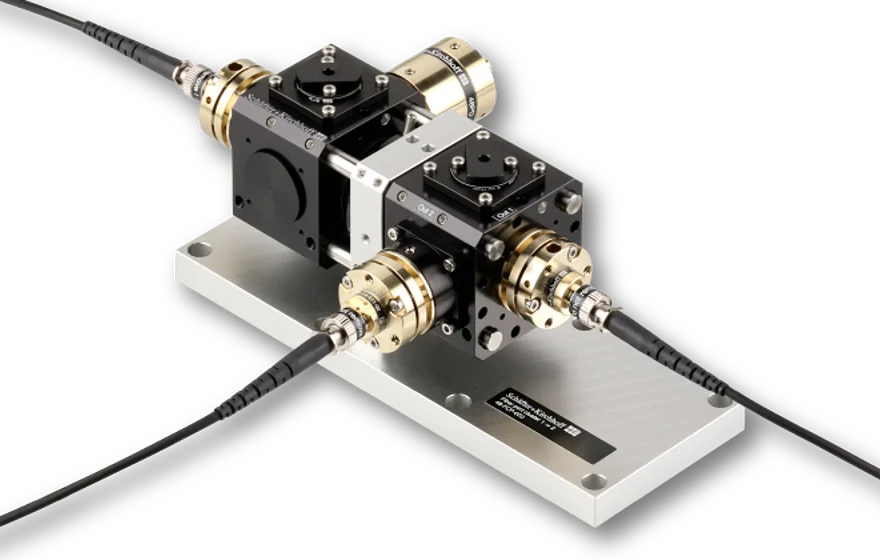

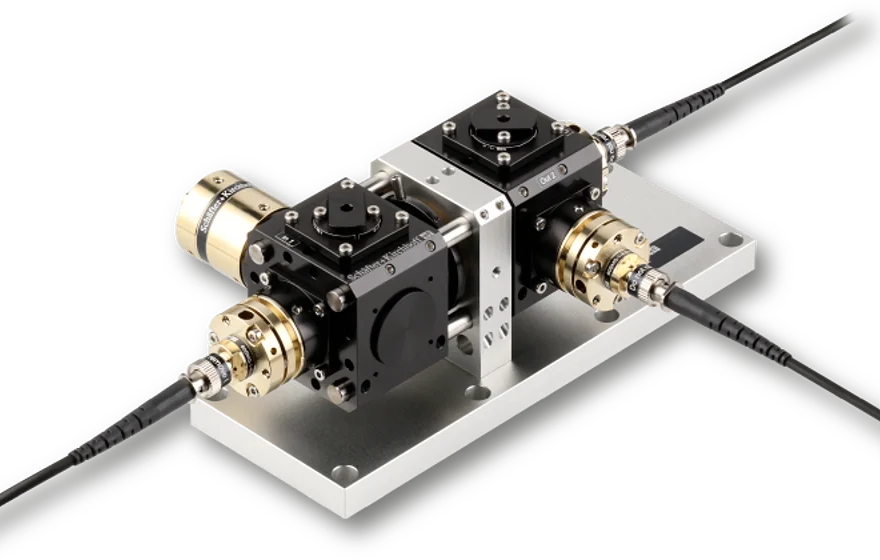

Fiber Port Cluster 1 ⇾ 2

Fiber Port Cluster 1-2
Fiber Port Cluster 1-2
Fiber Port Cluster 1-2
Fiber Port Cluster 1-2

Features

Fiber Port Cluster for one input source
  • Configuration 1 ⇾ 2
  • Highly efficient coupling into polarization-maintaining fiber cables
  • Adjustable splitting ratio
  • Compact, rugged, transportable and sealed opto-mechanical units
  • Fully fiber-coupled
  • Very high long-term stability, efficiency and reproducability

Description

This Fiber Port Clusters 1 ⇾ 2 is a compact opto-mechanical unit that splits a fiber-coupled source into 2 output fiber cables with high efficiency and variable splitting ratio.

Optical Setup
The input port is fiber-coupled to a PM fiber cable. A polarizer defines the input polarization which is necessary for a long term stable splitting ratio.
A photo diode right after the input port allows for a continuous monitoring of the radiation.
Subsequently, the radiation splitting is achieved by using a rotary half-wave plate in combination with a polarization beam splitter. By use of the rotary half-wave plate, almost any desired splitting ratio can be achieved.
At the output ports further polarizers are placed in order to define the polarization at output of the system.

Fiber Couplers
A fundamental component of a Fiber Port Cluster is the Laser Beam Coupler, which is the input into the opto-mechanical unit collimating the input radiation and, finally, couples the radiation back into the polarization-maintaining fiber cables. The stability of the total Fiber Port Cluster is determined by the stability of the laser beam coupler.


48-FPC-1-2

Technical data

48-FPC-1-2-xxx

Order code
48-FPC-1-2-xxx
Configuration
1 ⇾ 2
Wavelengths*
461, 689, 767, 780, 852 nm
Fiber type
polarization-maintaining
Connector type
FC APC (standard)
Cable lengths
Customer-specific
Wave plate type
low order
Power monitor
BPX-61 (SMA)
Transmission
≥ 75 % @ 780 nm
Polarization Extinction Ratio
≥ 23 dB @ 780 nm
Balancing
better 3 %
* Different wavelength combinations on request
Dimensions (w/o fiber cables)
180 x 125 x 70 mm
