48-FPC-1-3-xxx

Fiber Port Cluster 1 ⇾ 3

Fiber Port Cluster_1-3
Fiber Port Cluster_1-3
Fiber Port Cluster_1-3
Fiber Port Cluster_1-3
Fiber Port Cluster_1-3
Fiber Port Cluster_1-3
Fiber Port Cluster_1-3
Fiber Port Cluster_1-3

Features

Fiber Port Cluster for one input source
  • Configuration 1 ⇾ 3
  • Highly efficient coupling into polarization-maintaining fiber cables
  • Adjustable splitting ratio
  • Compact, rugged, transportable and sealed opto-mechanical units
  • Fully fiber-coupled
  • Very high long-term stability, efficiency and reproducability

Description

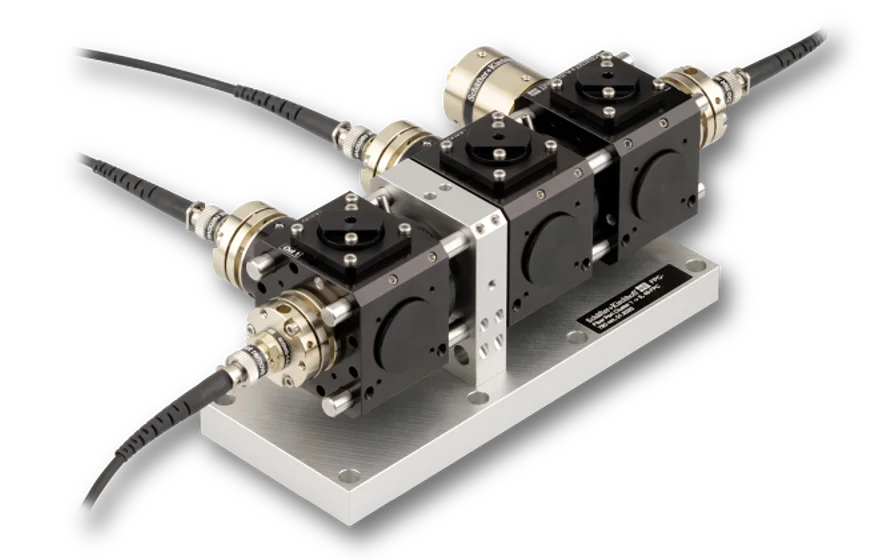

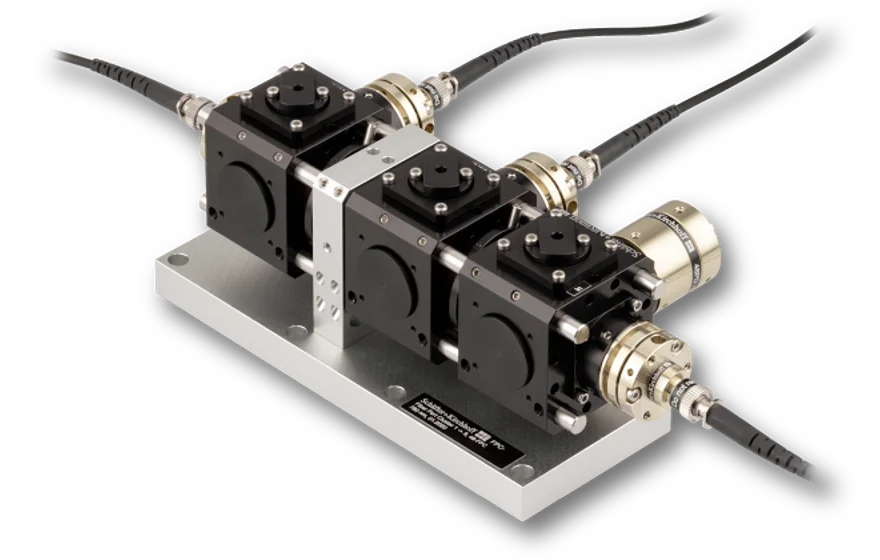

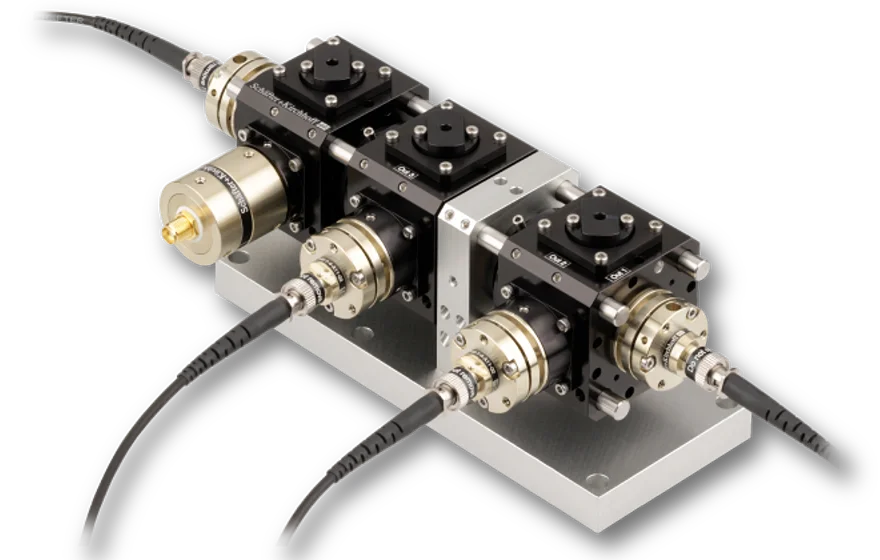

This Fiber Port Clusters 1 ⇾ 3 is a compact opto-mechanical unit that splits a fiber-coupled source into 3 output fiber cables with high efficiency and variable splitting ratio.

Optical Setup
The input port is fiber-coupled to a PM fiber cable. A polarizer defines the input polarization which is necessary for a long term stable splitting ratio.
A photo diode right after the input port allows for a continuous monitoring of the radiation.
Subsequently, the radiation splitting is achieved by using a cascade of rotary half-wave plates in combination with polarization beam splitters. By use of the rotary half-wave plates, almost any desired splitting ratio can be achieved.
At the output ports further polarizers are placed in order to define thepolarization at output of the system.

Fiber Couplers
A fundamental component of a Fiber Port Cluster is the Laser Beam Coupler, which is the input into the opto-mechanical unit collimating the input radiation and, finally, couples the radiation back into the polarization-maintaining fiber cables. The stability of the total Fiber Port Cluster is determined by the stability of the laser beam coupler.

How to order
For a detailed quotation please additionally specify

  • Wavelength
  • Cable lengths
  • Connector types
48-FPC-1-3

Technical data

48-FPC-1-3-xxx

Order code
48-FPC-1-3-xxx
Configuration
1 ⇾ 3
Wavelengths*
461, 689, 767, 780, 852 nm
Fiber type
polarization-maintaining
Connector type
FC APC (standard)
Cable lengths
Customer-specific
Wave plate type
low-order
Power monitor
BPX-61 (SMA)
Transmission
≥ 75 % @ 780 nm
Polarization Extinction Ratio
≥ 23 dB @ 780 nm
Balancing
better 3 %
* Different wavelength combinations on request

Downloads

Dimensional drawing
980129090436.pdf (Dimensional drawing)
STEP model
980129090436.stp (STEP model)
STEP model
980129090436.stp (STEP model, for registered users only)
Manual
48-FPC-1-3-780_Example.pdf (Manual)
Manual
48-FPC-1-3-780_Example.pdf (Manual, for registered users only)
Technote
Article_Cluster.pdf (Technote)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.
