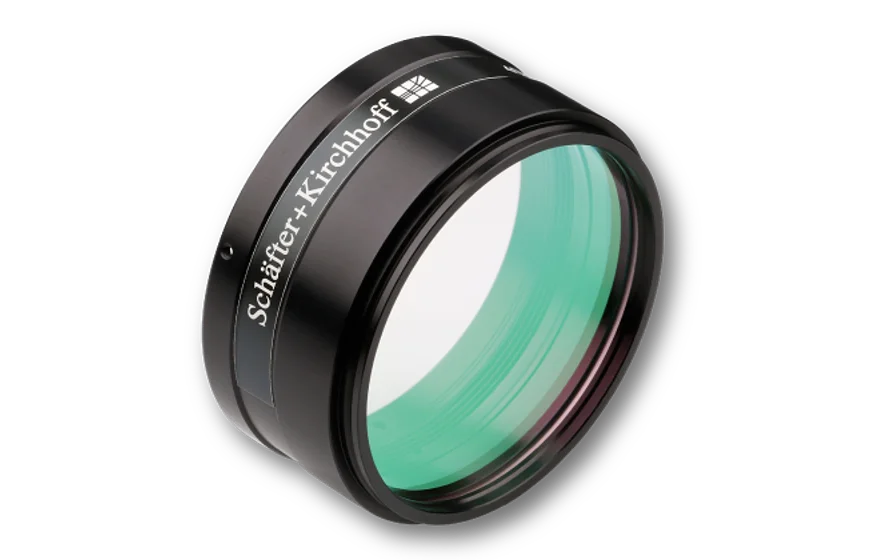

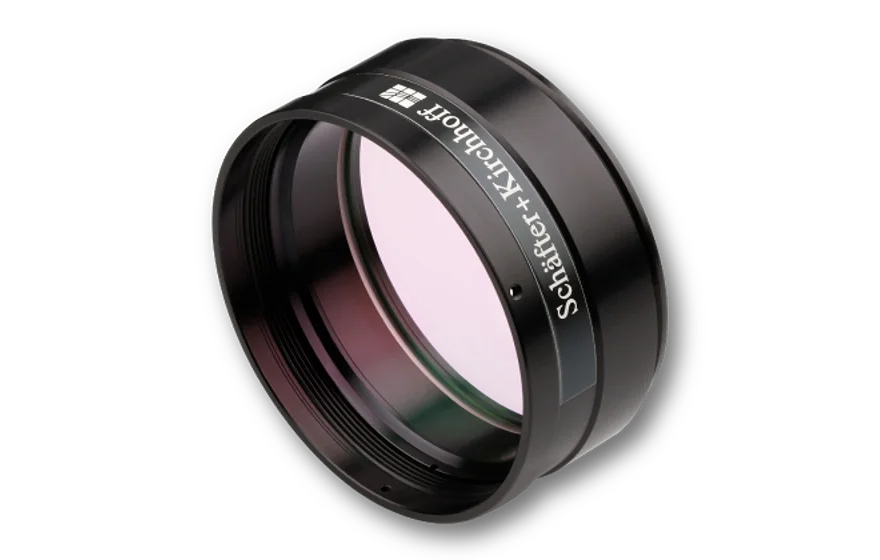

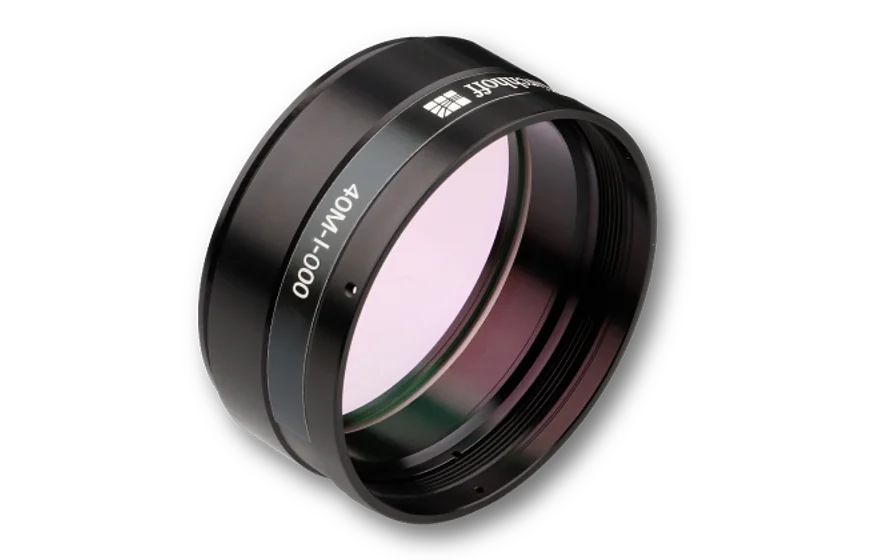

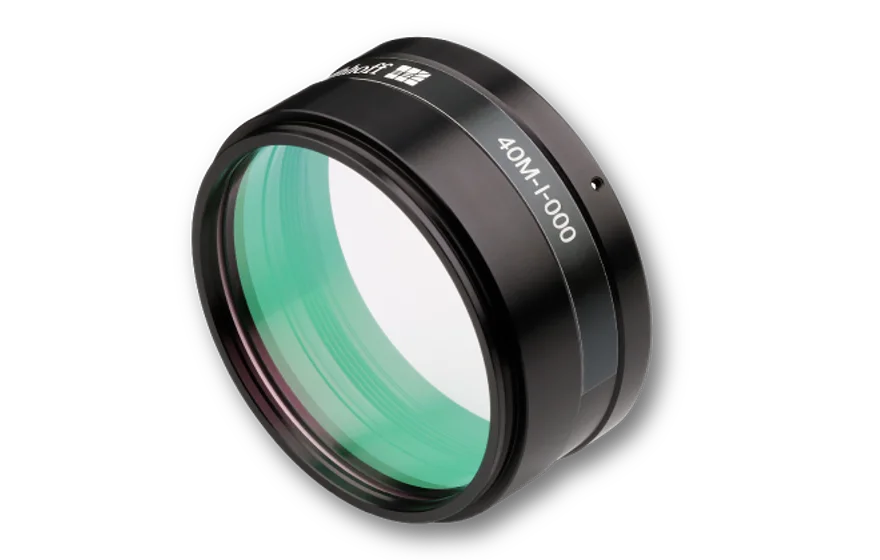

Micro Focus Optics series 40M

for transforming a collimated beam into a micro focus spot

Micro Focus 40M
Micro Focus 40M
Micro Focus 40M
Micro Focus 40M
Micro Focus 40M
Micro Focus 40M
Micro Focus 40M
Micro Focus 40M

Features

Micro focus optics used for focussing the collimated radiation of a fiber collimator.
  • Attachment optics for fiber collimators type 60FC-L or 60FC-T with outer diameter Ø 55 mm
  • Choice of achromats or singlet lenses
  • Various optics for UV - IR
  • Amagnetic housing made from Titanium on request

Description

Micro Focus Optics are used in order to generate small laser spots from the collimated radiation of a fiber collimator.
For spots < 10 times the mode field MFD of the fiber, a good quality spot can no longer be achieved by simply refocusing the collimation optics. Instead, a combination of collimation and focusing optics is needed. The size of the spot and its Rayleigh range is determinded by the fiber properties and by the focal lengths of the fiber collimator and of the micro focus optics. For single-mode fibers the Gaussian intensity distribution and beam shape are maintained.
For the fiber collimators series 60FC-L or 60FC-T with an outer diameter Ø 55 mm Schäfter+Kirchhoff offer Micro Focus Optics with focal lengths in the range f 100 mm - 500 mm.
There is a large variety of duplet or singlet optics with AR coatings from the UV to the IR wavelengths range.

Adjustment:
In order to change the working distance of the Micro Focus Optics the lens position of the adjacent collimator has to be readjusted.

Housing material:
As standard the housing of the Micro Focus Optics is made of nickel silver.
For amagnetic fiber collimators Schäfter+Kirchhoff offers Micro Focus Optics with housings made of titanium.

Micro focus optics 40M

Order options

Wavelength Range   AR CoatingCorrection Focal Length
   100 mm 150 mm200 mm500 mm
420 -   700 nm     26Achromaticxxx
750 - 1000 nm     37Achromaticxxx
420 -   700 nm     26-   x
750 - 1000 nm     37-   x

Downloads

Dimensional drawing
980241290100.pdf (Dimensional drawing)
STEP model
980241290100.stp (STEP model)
STEP model
980241290100.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

This downloads section only includes general downloads for the complete series.
Please access the individual product pages (using the product configurator, the product list, order options or the search button if you have a complete order code). Here you will find specific downloads including technical drawings or stepfiles.
