Micro Focus Optics series 13M

for transforming a collimated beam into a micro focus spot

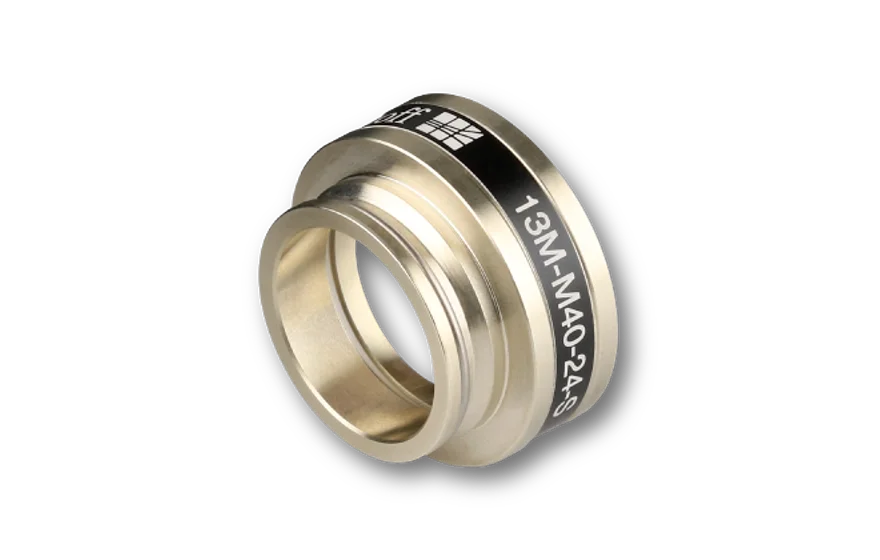

Micro Focus 13M

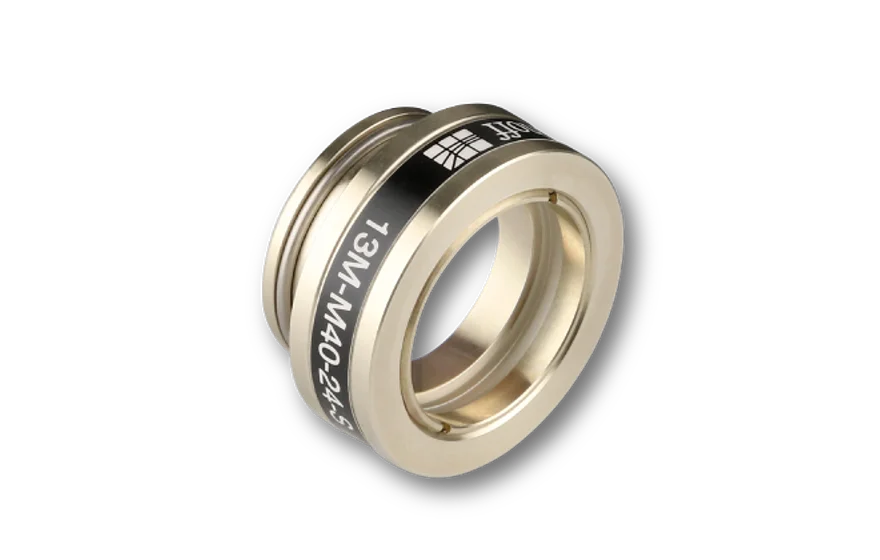

Micro Focus 13M

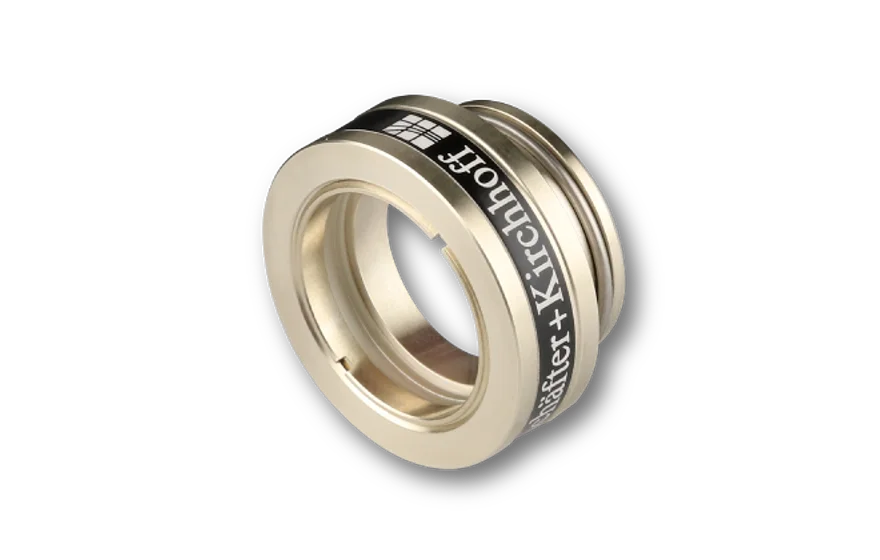

Micro Focus 13M

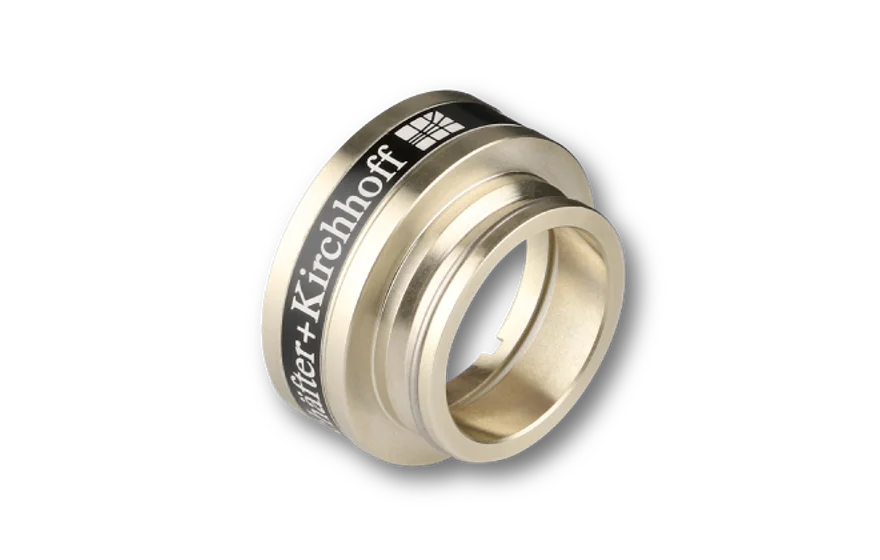

Micro Focus 13M

Features

Micro focus optics used for focussing the collimated radiation of a fiber collimator.
  • Attachment optics for fiber collimators type 60FC-L or 60FC-T with outer diameter Ø 25 mm
  • Choice of achromats or singlet lenses
  • Various optics for UV - IR
  • Amagnetic housing made from Titanium on request

Description

Micro Focus Optics are used in order to generate small laser spots from the collimated radiation of a fiber collimator.
For spots < 10 times the mode field MFD of the fiber, a good quality spot can no longer be achieved by simply refocusing the collimation optics. Instead, a combination of collimation and focusing optics is needed. The size of the spot and its Rayleigh range is determinded by the fiber properties and by the focal lengths of the fiber collimator and of the micro focus optics. For single-mode fibers the Gaussian intensity distribution and beam shape are maintained.
For the fiber collimators series 60FC-L or 60FC-T with an outer diameter Ø 25 mm Schäfter+Kirchhoff offer Micro Focus Optics with focal lengths in the range f 25 mm - 1000 mm.
There is a large variety of duplet or singlet optics with AR coatings from the UV to the IR wavelengths range.

Adjustment:
In order to change the working distance of the Micro Focus Optics the lens position of the adjacent collimator has to be readjusted.

Housing material:
As standard the housing of the Micro Focus Optics is made of nickel silver.
For amagnetic fiber collimators Schäfter+Kirchhoff offers Micro Focus Optics with housings made of titanium.

Order Options

Wavelength Range  AR CoatingCorrectionFocal Length
   25 mm30 mm40 mm50 mm60 mm75 mm100 mm125 mm250 mm500 mm1000 mm
390 -   670 nm    33Monochromatic     x
630 -   980 nm    10Monochromatic     x  x
630 - 1080 nm    54Monochromatic  x
980 - 1550 nm    08Monochromatic     x
400 -   700 nm    01 Achromaticxx
400 - 1000 nm    24Achromatic  xxx x  x
420 -   700 nm    26Achromatic   x x x
450 -   700 nm    04Achromatic  x   x
750 - 1550 nm    37Achromaticxx
390 -   670 nm    33-        xxx
600 - 1060 nm    05-        xxx

Downloads

940130018200.pdf (Dimensional drawing)
940130018200.stp (STEP model)
940130018200.stp (STEP model, for registered users only)
