Semi-telecentric Low Noise Laser Line with uniform intensity distribution

Machine Vision Laser Series LNC-13LT/LNC-13LTM

Low Noise Machine Vision Laser Line series LNC-13LT
Low Noise Machine Vision Laser Line series LNC-13LT
Low Noise Machine Vision Laser Line series LNC-13LTM+91CM
Low Noise Machine Vision Laser Line series LNC-13LTM+91CM
Low Noise Machine Vision Laser Line series LNC-13LT+91CR
Low Noise Machine Vision Laser Line series LNC-13LT+91CR
Low Noise Machine Vision Laser Line series LNC-13LTM+91CR
Low Noise Machine Vision Laser Line series LNC-13LTM+91CR

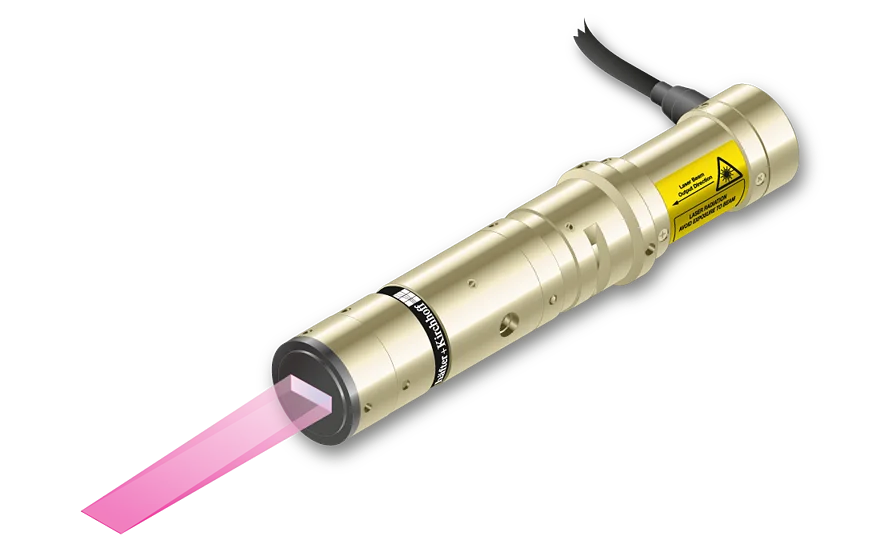

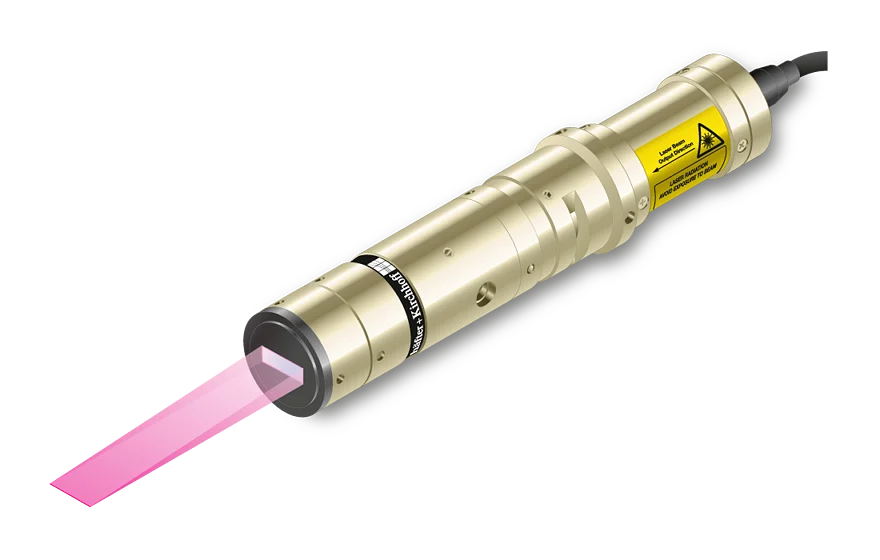

Representative product images. Individual product images are found on the individual product pages.

Features

Semi-telecentric low noise machine vision laser line with uniform intensity distribution. This includes lasers of series LNC-13LT/LNC-13LTM. Both series are available as Micro (smaller line widths) or Macro version (extended depth of focus).
  • Semi-telecentric
  • Uniform intensity distribution
  • Laser Line Generator Series LNC-13LT
    • Line length 15 mm
    • Line widths starting at 12 µm
    • Wavelengths 405 - 940 nm
    • Laser powers up to 24 mW
    • Low noise Laser Module (typ. < 0.15 % of Po (RMS, Bandwidth < 1 MHz))
  • Laser Line Generator Series LNC-13LTM
    • Depth of focus 7 to 35 times larger than for corresponding Micro Focus Generator
    • Line length 15 mm
    • Line widths starting at 39 µm
    • Wavelengths 405 - 940 nm
    • Laser powers up to 11 mW
    • Low noise Laser Module (typ. < 0.15 % of Po (RMS, Bandwidth < 1 MHz))
  • Standard Version:
    • Series 13LT (Micro) and series 13LTM (Macro)

  • Micro Line Generator for small laser line widths and high power density in the focal plane
  • Macro Line Generator for extended depth of focus
  • Low noise, low coherence laser module (typ. < 0.15 % of Po (RMS, Bandwidth < 1 MHz))
Micro Line Generator for small laser line widths and high power density in the focal planeMacro Line Generator for extended depth of focusLow noise, low coherence laser module

Description

The laser diode beam sources series LNC-13LT/LNC-13LTM produce semi-telecentric laser lines with a uniform intensity distribution along the laser line.

LNC-13LT/LNC-13LTM
The laser diode beam sources series LNC-13LT/LNC-13LTM produce a semi-telecentric laser line with 15 mm line length. The intensity profile is approx. uniform in line direction. More precisely, it is Gaussian clipped by an aperture with an edge intensity of typ. 80%. The line width is constant along the laser line. Across the laser line the intensity distribution is Gaussian for lasers of series LNC-13LT and approx. Gaussian for lasers of series LNC-13LTM.

Micro and Macro lasers
The lasers of series LNC-13LT are Laser Micro Line Generators designed to produce lines with small line width. They have a small depth of focus (in this case the depth of focus is the Rayleigh range). Laser Macro Line Generators like the corresponding lasers of series LNC-13LTM have common basic optical features but are designed to generate laser lines with an extended depth of focus.

Low noise
The lasers are low noise (typ. < 0.15 % of Po* (RMS, Bandwidth < 1 MHz)) and operate mode-hopping free. Due to the reduced coherence length the speckle contrast is lowered. However this effect is smaller for smaller lines. (* Po is the maximum specified output power.)

Electronics
The laser has integrated electronics for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

Adjusting the working distance
For lasers of series LNC-13LT/LNC-13LTM the working distance is fixed. A fine-adjustment of the distance between laser and target is recommended for fine-focusing in order to achieve minimal line width.

Standard Version
The laser series LNC-13LT/LNC-13LTM is also available as a standard version 13LT (Micro) and 13LTM (Macro). Please note that these have a different electronics type, but are also available with RS232 interface.

These high quality lasers can e.g. be used for machine vision applications, laser triangulation or laser light sectioning.

Technotes

Downloads

Article_LaserLines.pdf

This downloads section only includes general downloads for the complete series.
Please access the individual product pages (using the product configurator, the product list, order options or the search button if you have a complete order code). Here you will find specific downloads including technical drawings or stepfiles.
