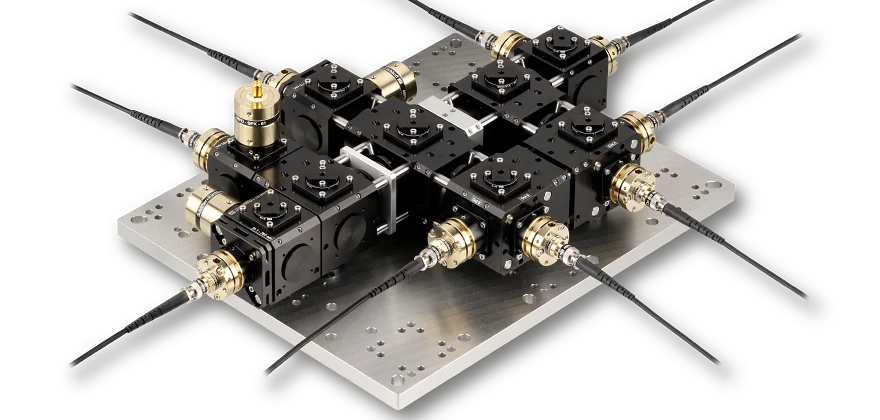

48-FPC-2-6_dc-xxx

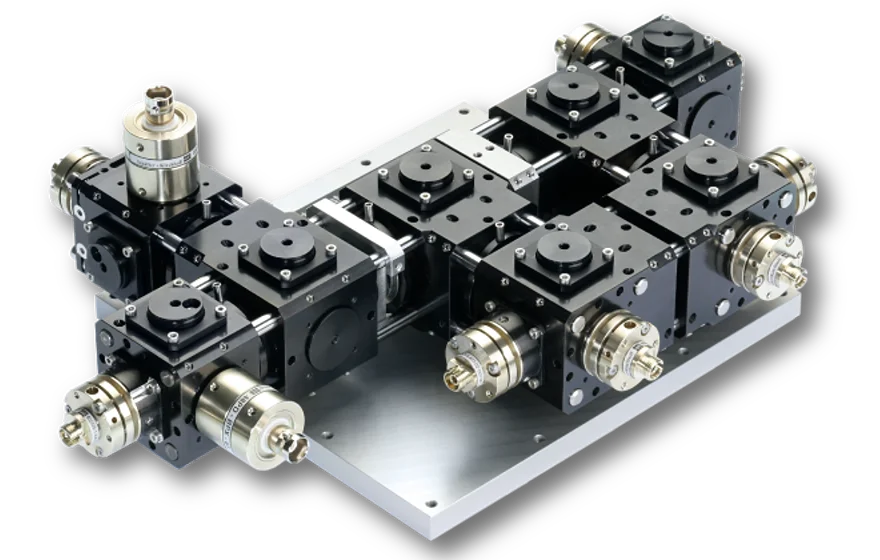

This Fiber Port Cluster 2 ⇾ 6 dichroic is a compact opto-mechanical unit that combines two fiber-coupled sources with differing wavelengths and then splits the combined radiation into 6 output fiber cables with high efficiency and variable splitting ratio.

Optical Setup
The two input ports are fiber-coupled to PM fiber cables. Polarizers define the input polarization which is necessary for a long term stable splitting ratio.
Two photo diodes right after each input port allow for a continuous monitoring of the radiation. The two differing input sources are superimposed by means of polarization beam splitting cube. A dichroic wave plate rotates
the two ortho gonally polarized input beams of different wave lengths into linear polarization states in parallel.
Subsequently, the radiation splitting is achieved by using a cascade of rotary half-wave plates in combination with polarization beam splitters. By use of the rotary half-wave plates, almost any desired splitting ratio can be achieved.
At the output ports further polarizers are placed in order to define the polarization at output of the system.

Fiber Couplers
A fundamental component of a Fiber Port Cluster is the Laser Beam Coupler, which is the input into the opto-mechanical unit collimating the input radiation and, finally, couples the radiation back into the polarization-maintaining fiber cables. The stability of the total Fiber Port Cluster is determined by the stability of the laser beam coupler.

How to order
For a detailed quotation please additionally specify

• Wavelengths In 1 and In 2
• Cable lengths
• Connector types
