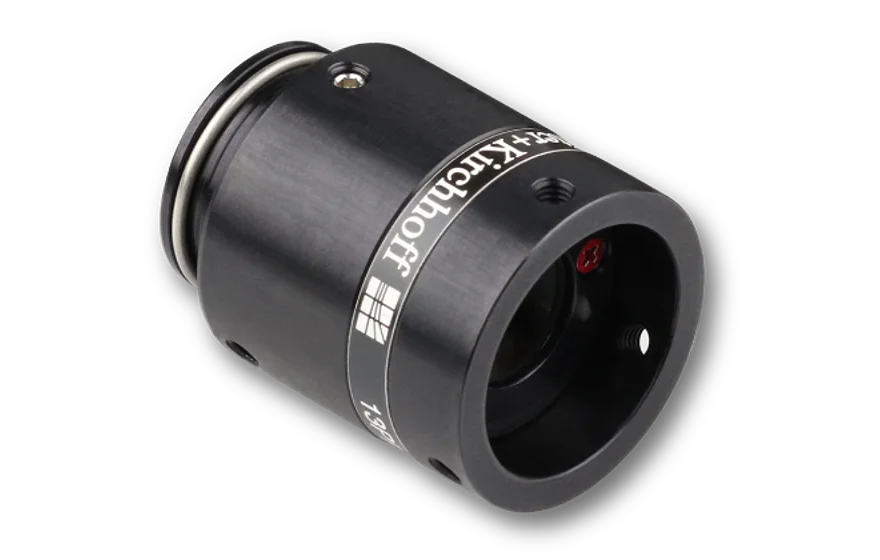

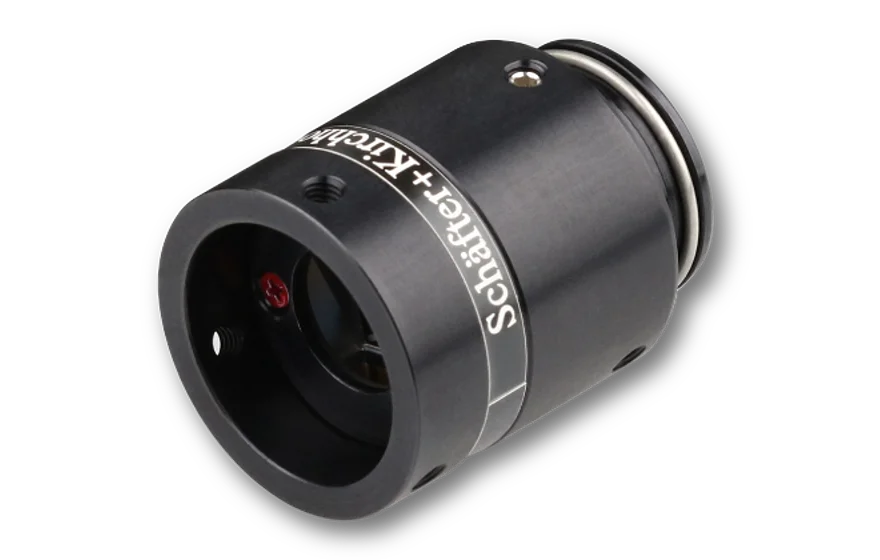

13PF-C-350-L

Polarization beam splitter cube (long version)

Features

Polarization filter with system mount Ø 19.5 mm for attaching to 60FC-L and 60FC-T Fiber Collimators with outer diameter Ø 25 mm.
This filter transmits only the linear polarized component of the radiation.
  • Polarization beam splitter cube with deflection of the unwanted orthogonally polarized radiation
  • Polarization extinction ratio 10.000:1
  • Surface deviation < λ/4
  • Clear aperture: Ø 8 mm
  • System mount: Ø 19.5 mm
  • AR Coating: 340 - 440 nm
  • Long-form housing with system mount Ø 19.5 mm for adding additional attachment optics

Technical data

13PF-C-350-L

Order Code
13PF-C-350-L
Type
Polarizing cube beam splitter
Wavelengths range
340 - 440 nm
Extinction
10.000:1
Transmission
> 98 %
AR Coating
yes
Surface deviation
< λ/4
Clear aperture
8 mm
System mount
Ø 19.5 mm
Front fitting
System mount Ø 19.5 mm
Housing material
Nickel silver
Weight
42 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

Polarization Beam Splitter Cube

Accessories

Polarization Analyzer SK010PA

Measurement tool for coupling into polarization-maintaining fiber cables
