Mounting options for Ø 32/34.5 mm Fiber Collimators (Series 60FC-T, 60FC-Q, and 60FC-L)

Mounting options for Fiber Collimators series 60FC-T, 60FC-Q, and 60FC-L with Ø 32/34.5 mm

Example of use
Example of use

Mounting plate

The fiber collimators with an outer diameter Ø 32/34.5 mm can be mounted using the multicube mounting plate 48MC-MP-32.

This adapter plate is compatible to the multicube system and is compatible with the established 30 mm cage system and the microbench system.

Example of use
Example of use

Mounting plate with clamp collar

The fiber collimators with an outer diameter 32/34.5 mm can also be mounted using the clamp collar type CC-32-MC which is compatible with the mounting plate type 48MC-MP-32.

Example of use
Example of use

Mounting plate for the 60 mm cage system

The mounting plate type 68MC-MP-32 is compatible with the 60 mm cage system. A fiber collimator with an outer diameter Ø 32/34.5 mm is mounted by means of the clamp collar type CC-32.

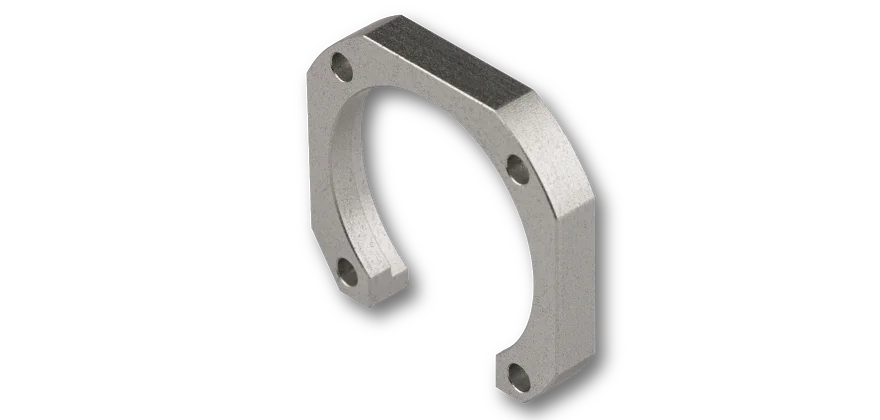

Clamp collar CC-32
Clamp collar CC-32

Mounting using a clamp collar

With the clamp collar type CC-32 or alternatively with the type CC-32-MC the fiber collimators can be mounted to customized mounting plates.
