CameraLink Line Scan Cameras

Camera Link interface

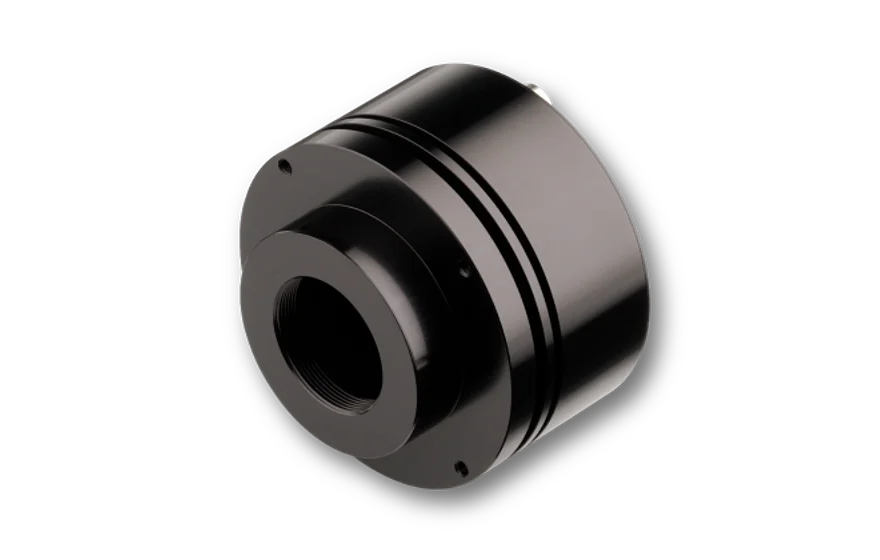

Camera casing Camera Link C-Mount
Camera casing Camera Link C-Mount
Camera casing Camera Link C-Mount
Camera casing Camera Link C-Mount
Camera casing Camera Link M40x075
Camera casing Camera Link M40x075

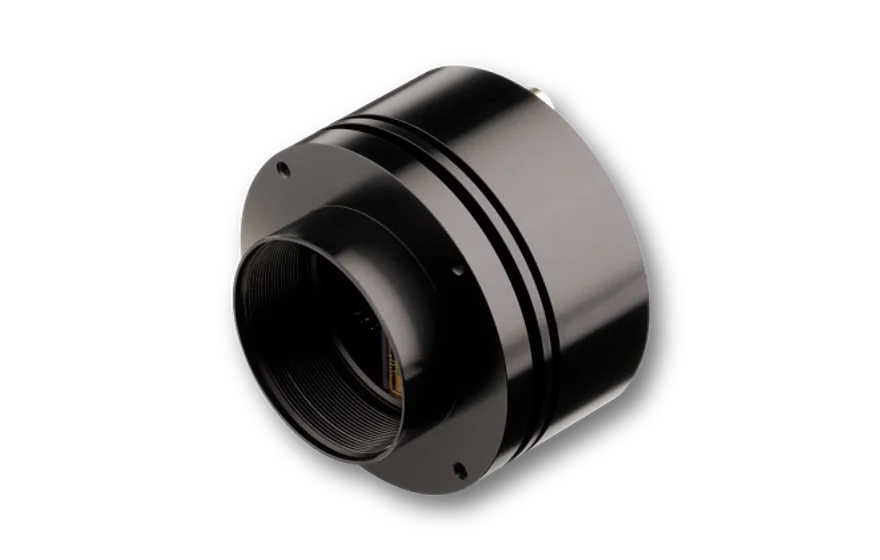

Camera casing Camera Link M45x075
Camera casing Camera Link M45x075
Camera casing Camera Link M45x075, vers. L
Camera casing Camera Link M45x075, vers. L

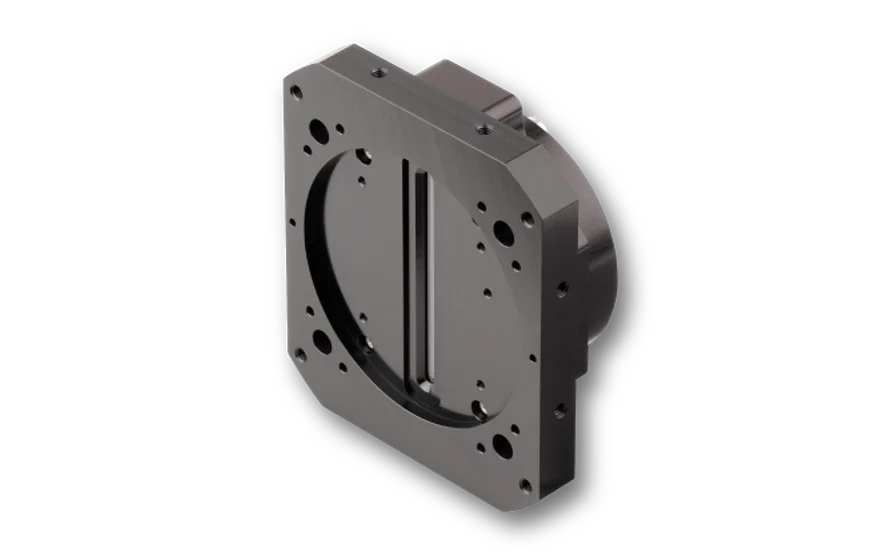

Camera casing Camera Link M72x0.75, vers. C
Camera casing Camera Link M72x0.75, vers. C
Camera casing Camera Link M72x0.75, vers. E
Camera casing Camera Link M72x0.75, vers. E

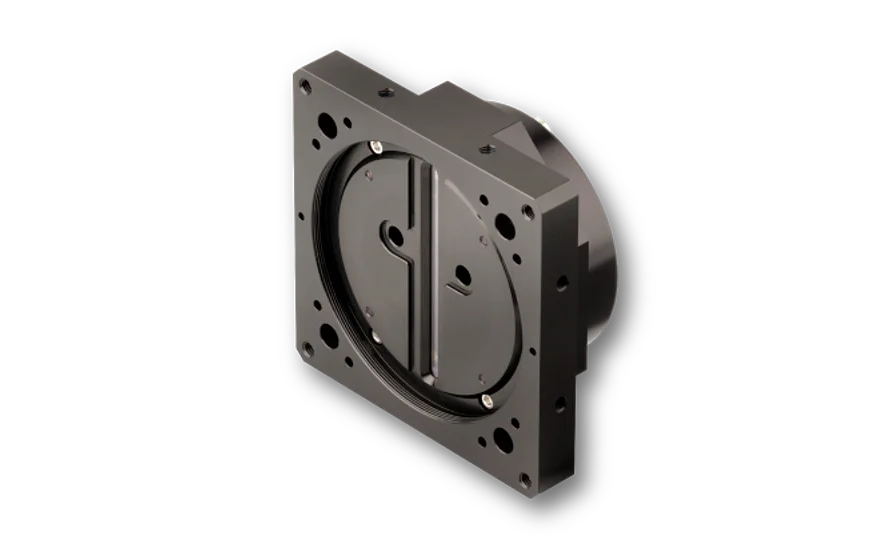

Camera casing Camera Link Ø80-Mount
Camera casing Camera Link Ø80-Mount
Interface: Camera Link

Features

Line Scan Camera with CameraLink interface starting at 1024 pixels up to 7600 pixels
  • Line frequency up to 52.6 kHz
  • Shading correction with permanently stored profiles
  • Window Function (ROI)
  • Line Trigger, Frame Trigger
  • Advanced Synchronization Control
  • Data cable length up to 10m
  • Last Order

This product will be discontinued.

Description

Line scan cameras are semiconductor cameras used in many industrial environments, e.g. in machine vision applications. The single photosensitive line sensor contains – depending on type – up to 22800 picture elements (pixels). Light energy incident on the sensor is transformed into an electric signal for digitization within the camera. At 8-bit resolution, the A/D converter transmits the output voltage of each pixel into one of 256 brightness levels, at 12-bit resolution into 4096 brightness levels. Color line scan cameras provide three separate line signals for Red, Green and Blue with either 3 x 8-bit or 3 x 12-bit per pixel. The digitized output signal is transfered to a computer.

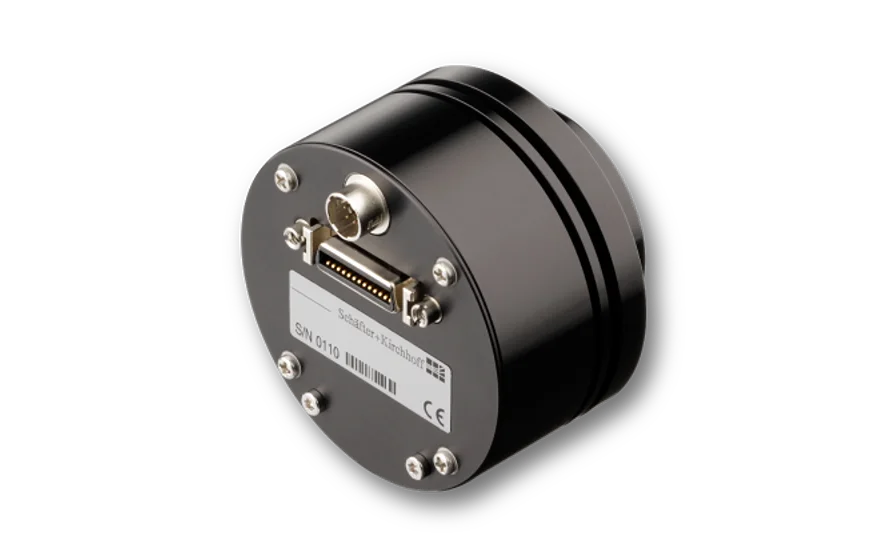

Camera Link is a standardized interface for industrial image acquisition and is designed for fast data transmission. For controlling a Schäfter+Kirchhoff line scan camera, any third party grabber board is suitable when it complies with the Camera Link standard in the base configuration. The camera and grabber board are connected using a standard cable with MDR26 mini-ribbon plug connectors.
Use the software development kits provided from the grabber board manufactuers when developing customized applications. On request, Schäfter + Kirchhoff can provide the Camera Link configuration file of the specified camera type matched to the grabber. The basic camera parameters can also be configured with the SkCLconfig tool from Schäfter + Kirchhoff. This tool can be downloaded from the support area of the Schäfter + Kirchhoff homepage.
Schäfter + Kirchhoff provides a wide range of accessories for the line scan cameras with Camera Link interface, including focus adapters, extension rings, lenses and mounting brackets for industrial use.

A detailed comparison of the advantages and disadvantages of all camera interfaces offered by Schäfter+Kirchhoff can be found here.

This product will be discontinued.

Accessories

Power Supplies
for Line Scan Cameras
Power Cables 5V / 15V
for GigE, GigE Vision, or Camera Link Line Scan Cameras
Power Cables 24V
for Camera Link VT-series Line Scan Cameras
Data Cables
for Camera Link Line Scan Cameras
Synchronization Cables
for Camera Link VT-serie Line Scan Cameras
Extension Rings
for Line Scan Cameras
Mounting Accessories
for Line Scan Cameras

Overview

Bit depth
SK8k-U3DR481923.5 x 3.5 µm28.7 mm43.4 kHzXXXUSB 3.08/10 Bit
SK4k-U3DR7C4096 x 27 x 7 µm28.7 mm43.4 kHzXXXUSB 3.08 Bit
SK22368GTFC-4L7456 x 34.7 x 4.7 µm35.0 mm5.1 kHzXGigE3*8 Bit
SK4096MVHW40967 x 200 µm28.7 mm2.4 kHzXXXGigE Vision8/12 Bit
SK2048MVHW204814 x 200 µm28.7 mm4.6 kHzXXXGigE Vision8/12 Bit
SK1024U3HA10248 x 8 µm8.2 mm52.6 kHzXXXXUSB 3.08/12 Bit
SK1024VJR-4102414 x 14 µm14.3 mm4.7 kHzXXGigE Vision8/12 Bit
SK1024GJR-4102414 x 14 µm14.3 mm4.7 kHzXXXGigE8/12 Bit
SK512U3SH51214 x 14 µm7.2 mm35.7 kHzXXXXUSB 3.08/12 Bit
SK2048VSH-4L204814 x 14 µm28.7 mm14 kHzXXXGigE Vision8/12 Bit
SK2048MVSH204814 x 14 µm28.7 mm14.1 kHzXXXGigE Vision8/12 Bit
SK2048GSH-4L204814 x 14 µm28.7 mm14 kHzXXXXGigE8/12 Bit
SK2048CSH204814 x 14 µm28.7 mm14 kHzXXXCamera Link8/12 Bit
SK1024VSH-4102414 x 14 µm14.3 mm27 kHzXXXGigE Vision8/12 Bit
SK1024U3SH102414 x 14 µm14.3 mm27 kHzXXXXUSB 3.08/12 Bit
SK1024MVSH102414 x 14 µm14.3 mm27 kHzXXXGigE Vision8/12 Bit
SK1024GSH-4102414 x 14 µm14.3 mm27 kHzXXXXGigE8/12 Bit
SK1024CSH102414 x 14 µm14.3 mm27 kHzXXXCamera Link8/12 Bit
SK7500VTF-4XB74967 x 7 µm52.5 mm8.3 kHzXGigE Vision8/12 Bit
SK7500GTF-4XB75007 x 7 µm52.5 mm8.3 kHzXXGigE8/12 Bit
SK7500CTF-XB75007 x 7 µm52.5 mm10.1 kHzXCamera Link8/12 Bit
SK7456U3TO74564.7 x 4.7 µm35.0 mm5.2 kHzXXUSB 3.08/12 Bit
SK512U3HU51225 x 500 µm12.8 mm26.3 kHzXXXXUSB 3.08/12 Bit
SK4096U3HW40967 x 200 µm28.7 mm2.4 kHzXXXXUSB 3.08/12 Bit
SK22800VJRC-4XC7600 x 39.3 x 9.3 µm70.9 mm4.9 kHzGigE Vision3*8 Bit
SK22800U3JRC-XC7600 x 39.3 x 9.3 µm70.9 mm6.2 kHzXUSB 3.03*8 Bit
SK22800GJRC-4XC7600 x 39.3 x 9.3 µm70.9 mm5.0 kHzXGigE3*8 Bit
SK22800CJRC-XC7600 x 39.3 x 9.3 µm70.9 mm6.2 kHzXCamera Link3*8 Bit
SK2048VJR-4L204814 x 14 µm28.7 mm4.7 kHzXXGigE Vision8/12 Bit
SK2048VHA-420488 x 8 µm16.4 mm52.6 kHzXXXGigE Vision8/12 Bit
SK2048U3SH204814 x 14 µm28.7 mm14 kHzXXXXUSB 3.08/12 Bit
SK2048U3JR204814 x 14 µm28.7 mm4.7 kHzXXXUSB 3.08/12 Bit
SK2048U3HW204814 x 200 µm28.7 mm6.9 kHzXXXXUSB 3.08/12 Bit
SK2048U3HU204812.5 x 500 µm25.6 mm7.1 kHzXXXXUSB 3.08/12 Bit
SK2048U3HA20488 x 8 µm16.4 mm52.6 kHzXXXXUSB 3.08/12 Bit
SK2048GJR-4L204814 x 14 µm28.7 mm4.7 kHzXXXGigE8/12 Bit
SK2048GHA-420488 x 8 µm16.4 mm52.6 kHzXXXXGigE8/12 Bit
SK2048CJR204814 x 14 µm28.7 mm4.7 kHzXXCamera Link8/12 Bit
SK2048CHA20488 x 8 µm16.4 mm52.6 kHzXXXCamera Link8/12 Bit
SK1024U3HV102425 x 500 µm25.6 mm13.9 kHzXXXXUSB 3.08/12 Bit
SK1024U3HU102412.5 x 500 µm12.8 mm13.9 kHzXXXXUSB 3.08/12 Bit
