Machine Vision Laser Focus with an elliptical beam profile

Series 13M/13MM and RS232 interface

Machine Vision Laser Focus series 13M
Machine Vision Laser Focus series 13MM
Machine Vision Laser Focus series 13M+55CR

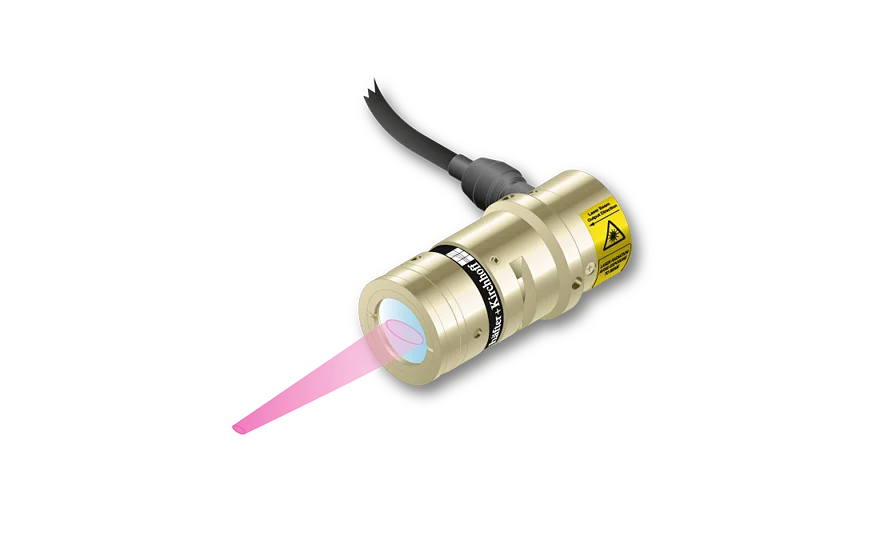

Representative product images. Individual product images are found on the individual product pages.

Features

Machine vision laser focus with elliptical Gaussian beam profile. They are available as Micro (smaller line widths) or Macro version (extended depth of focus).
  • Spot with elliptical beam profile
  • RS232 interface
  • Laser Focus Generator series 13M
    • Also available in blue or green
    • Spot diameter starting at 9 x 21 µm
    • Wavelengths 405 - 940 nm
    • Laser powers up to 114 mW
  • Laser Focus Generator series 13MM
    • Depth of focus 7 to 35 times larger than for corresponding Micro Focus Generator
    • Spot diameter starting at 20 µm
    • Wavelengths 405 - 940 nm
    • Laser powers up to 89 mW


  • Micro Line Generator for small laser line widths and high power density in the focal plane
  • Macro Line Generator for extended depth of focus
  • With RS232 interface

Description

The laser diode beam sources series 13M/13MM produces an elliptical laser spot.

13M/13MM
The laser diode beam source series 13M produces an elliptical laser spot with elliptical Gaussian intensity distribution. The laser diode beam source series 13MM produces an often circular (sometimes slightly elliptical) laser spot with extended depth of focus. The beam profile is approx. Gaussian. More precisely it has an elliptical intensity distribution clipped by a circular aperture.

Micro and Macro lasers
The lasers of series 13M and 5M are Laser Micro Focus Generators designed to produce spots with small spot size. They have a small depth of focus (in this case the depth of focus is the Rayleigh range). Laser Macro Focus Generators like the corresponding lasers of series 13MM have common basic optical features but are designed to generate laser spots with an extended depth of focus.

Electronics
The lasers have integrated electronics for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

RS232 interface
The lasers are equipped with an RS232 interface for laser control and data read-out. It provides e.g. control of ­laser power or allows to switch the laser ON and OFF and it allows to read and store critical data, like the hours of operation or the laser current for maintenance planning purposes.

Adjusting the working distance
For lasers of series 13M/13MM the working distance can be adjusted by adjusting the focus setting. Please note that the spot diameter increases proportionally to the working distance. A fine-adjustment of the distance between laser and target is recommended for fine-focusing in order to achieve minimal spot size.

These high quality lasers can e.g. be used for machine vision applications.
