Flanges for system mount Ø 19.5mm

for incorporation into the multicube™ system

Schäfter+Kirchhoff offers numerous adapters and flanges suitable for incorporation into the multicube™ system. All standard adapters and flanges have Ø 19.5 mm system mount with a 19.5 mm tightly fitting cylinder. Some can be mounted using flange mounting.
48MB-19.5-AC
48MB-19.5AC-D
48MB-19.5-SXY-1

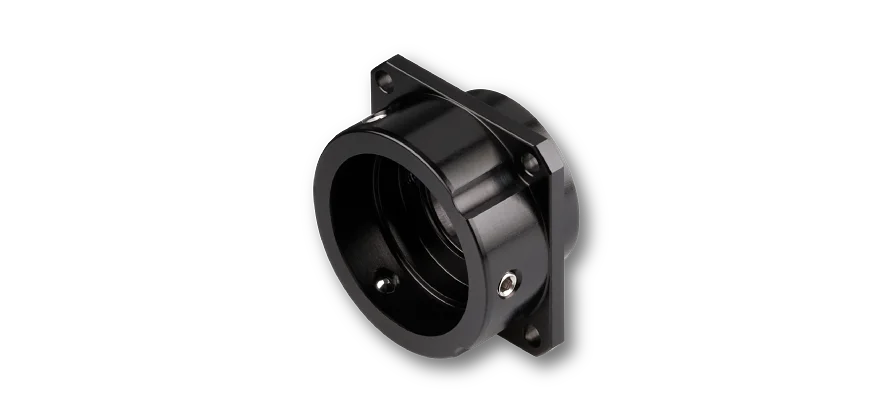

Adapter with system mount Ø 19.5 mm for the multicube™ system
  • Flange mount to muticubes 48MC
  • For attaching components with Ø 19.5 mm system mount

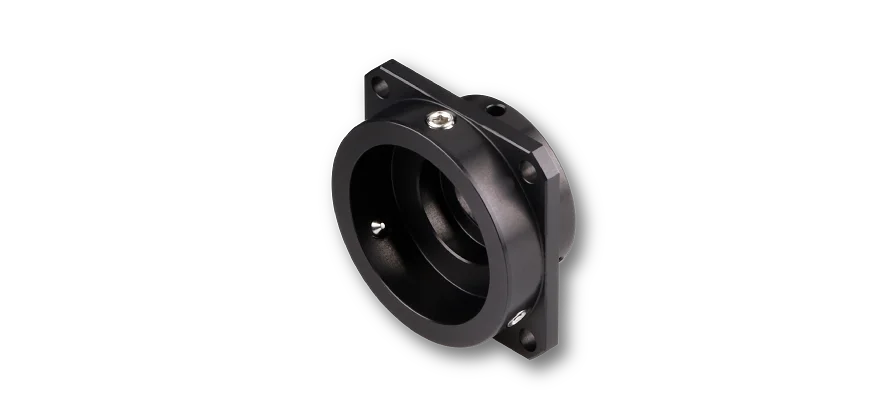

Adapter with system mount Ø 19.5 mm for the multicube™ system
  • Flange mount to muticubes 48MC
  • For attaching components with Ø 19.5 mm system mount
  • Decentered 0.3 mm for use in combination with plate beam splitters
Adapter with system mount Ø 19.5 mm for the multicube™ system
  • Flange mount to muticubes 48MC
  • For attaching components with Ø 19.5 mm system mount
  • Laterally adjustable

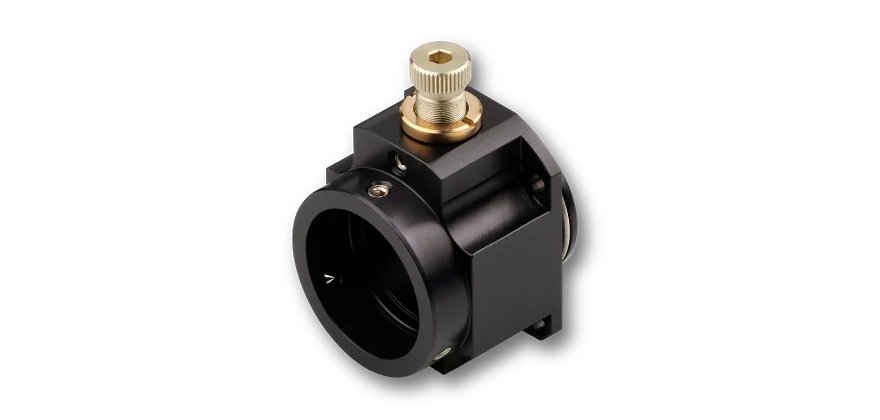

Adapter with system mount Ø 19.5 mm for the multicube™ system with integrated attenuator
  • Flange mount to muticubes 48MC
  • For attaching components with Ø 19.5 mm system mount
  • Attenuator with fine thread screw
  • Clear aperture Ø 4 mm
