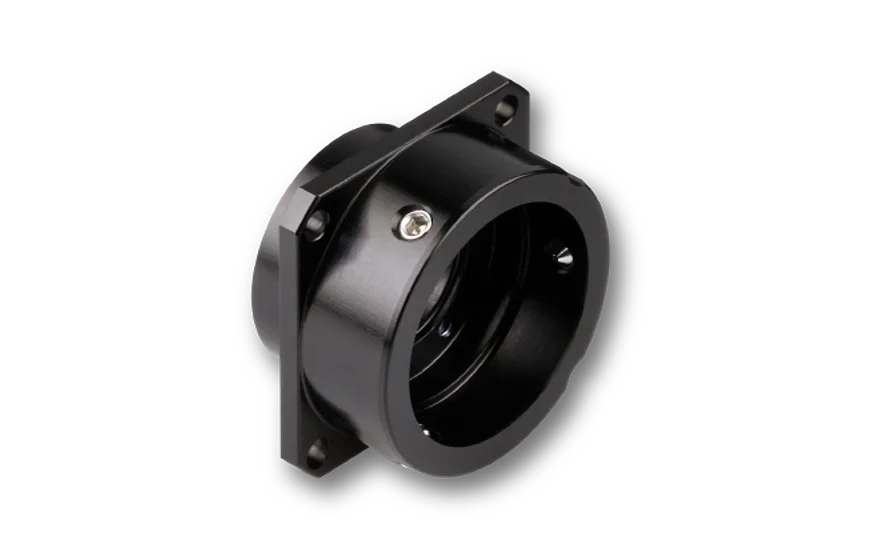

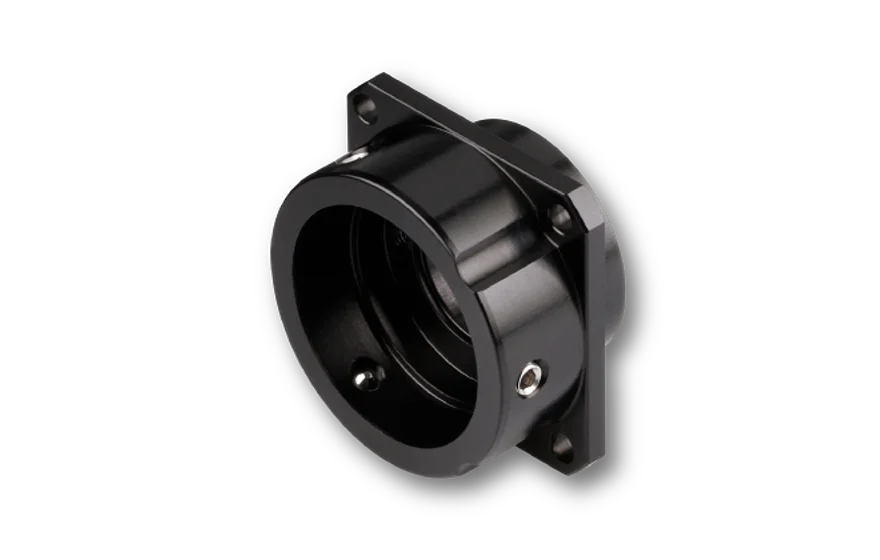

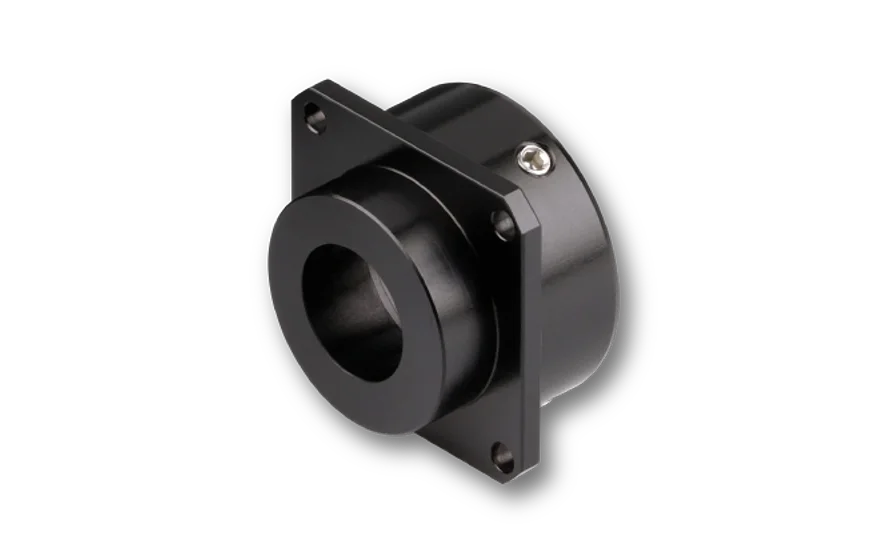

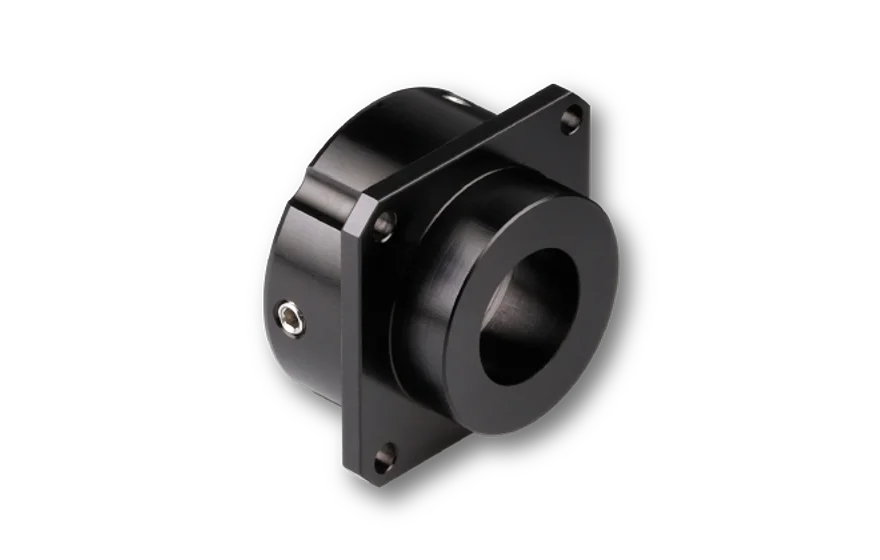

Adapter with system mount Ø 19.5 mm for the multicube™ system

48MB-19.5AC-D
48MB-19.5AC-D
48MB-19.5AC-D
48MB-19.5AC-D
48MB-19.5AC-D
48MB-19.5AC-D
48MB-19.5AC-D
48MB-19.5AC-D

Features

Adapter with system mount Ø 19.5 mm for the multicube™ system
  • Flange mount to muticubes 48MC
  • For attaching components with Ø 19.5 mm system mount
  • Decentered 0.3 mm for use in combination with plate beam splitters

Description

Adapter with system mount Ø 19.5 mm for the multicube™ system.
For attaching components with Ø 19.5 mm system to muticubes 48MC.
Decentered 0.3 mm for use in combination with plate beam splitters

Technical data

48MB-19.5AC-D

Order Code
48MB-19.5AC-D
Flange
25.4 x 25.4 mm
Thooth bore
Ø 19.5 mm

3 clamp screws
Clear aperture
Ø 11 mm
Material
black anodized aluminum
Weight

Dimensions (for a complete dimensional drawing please refer to the downloads section)

48MB-19.5AC-D

Downloads

Dimensional drawing
980120134000.pdf (Dimensional drawing)
STEP model
980120134000_Vereinfachen_1.stp (STEP model)
STEP model
980120134000_Vereinfachen_1.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.
