48AT-19.5-S1

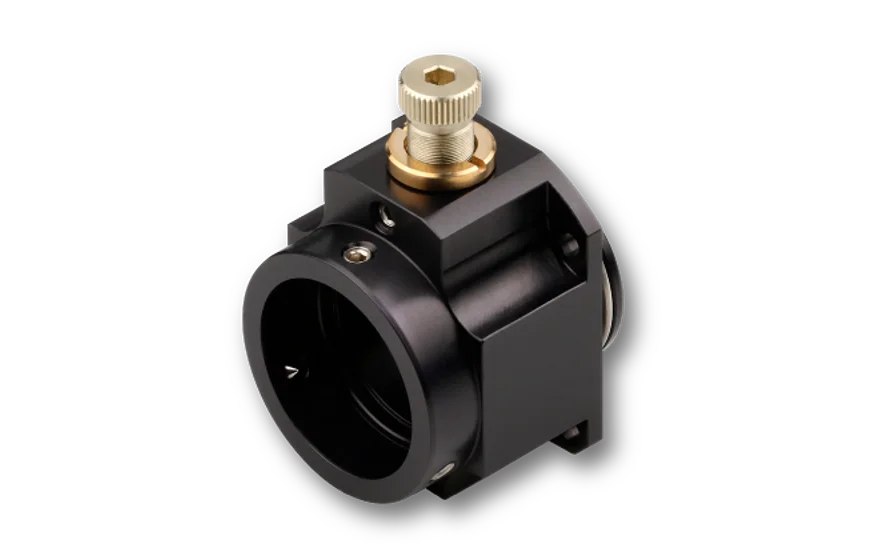

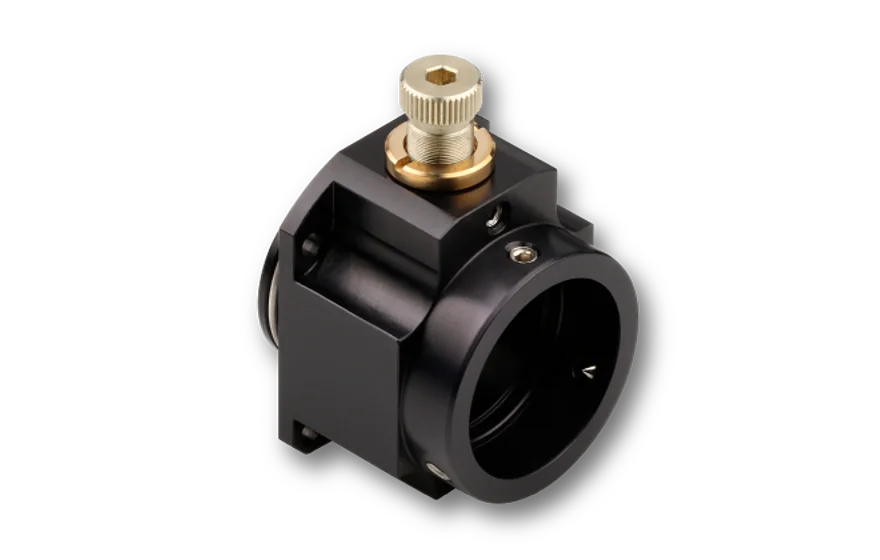

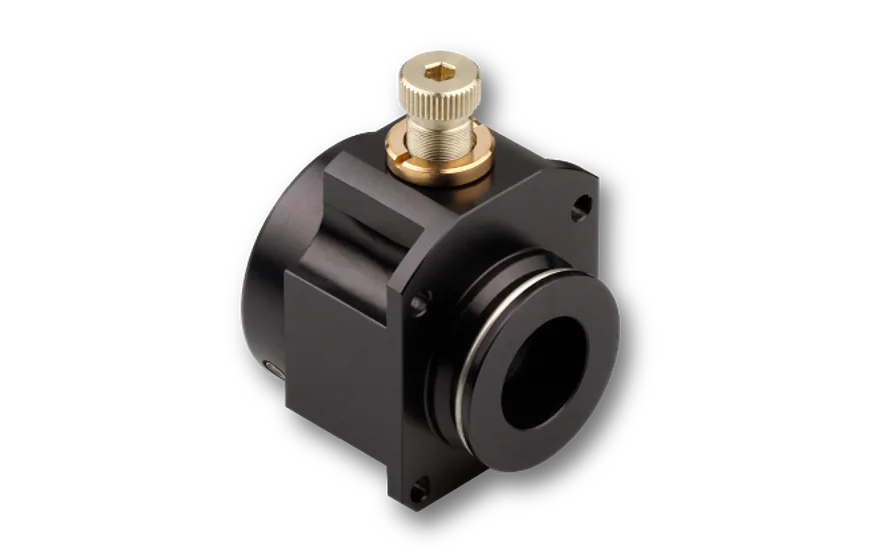

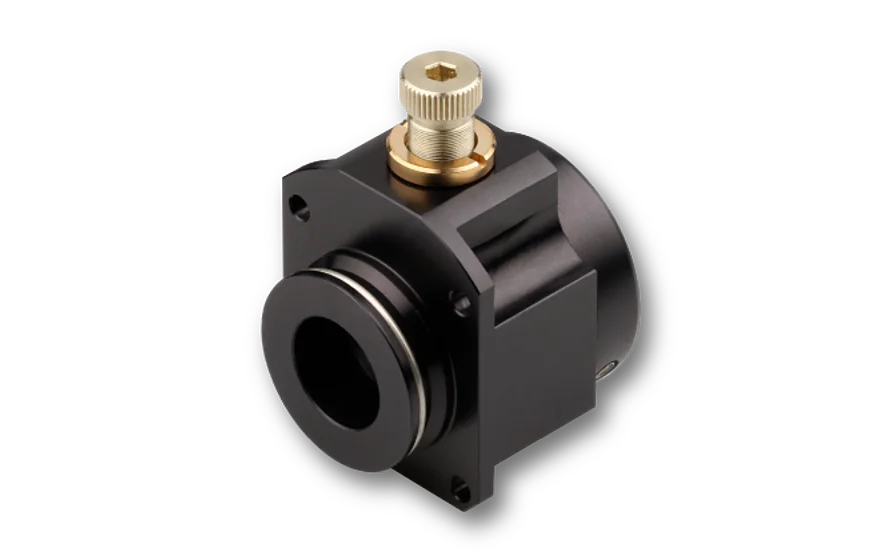

Adapter with system mount Ø 19.5 mm for the multicube™ system with integrated attenuator

48AT-19.5-S1

Features

Adapter with system mount Ø 19.5 mm for the multicube™ system with integrated attenuator

Flange mount to muticubes 48MC
For attaching components with Ø 19.5 mm system mount
Attenuator with fine thread screw
Clear aperture Ø 4 mm

Description

Adapter with system mount Ø 19.5 mm for the multicube™ system for attaching components with Ø 19.5 mm system to muticubes 48MC.
It has an integrated attenuator that can be adjusted by means of a fine thread screw.
This attenuator has to be used in combination with a single-mode fiber coupling. If used with multimode fibers also the beam profile ex fiber is affected.

Technical data

48AT-19.5-S1

Dimensions (for a complete dimensional drawing please refer to the downloads section)

FAQ

48AT
- Can I use the 48AT attenuator with multimode fibers?
  No you should not. If used with single-mode fibers the fibers serve as a mode filter and the exiting beam is still Gaussian with reduced power. In case of a multimode fiber not only the power is attenuated but also the intensity distribution ex fiber is affected.
- Is the attenuator type 48AT suitable for high power applications ?
  Unfortunately, the type 48AT attenuator is not suitable for high power applications.

  In the attenuator, the incoming beam is partially blocked and diffracted by a steel ball. The subsequent coupling into a single-mode fiber (PM fiber) serves as a mode filter.

  The suppressed power is not specifically absorbed in a light trap. Instead, it is partially diffracted and it still reaches the fiber connector, but is no longer coupled.

  When using the 48AT with high optical powers the diffracted portion alone is enough to destroy the fiber end-face as well as the fiber connector.
