Adapters for 60FC-...-XV

for Ø 12 mm fiber collimators, with bore hole and thread for flushing nozzle

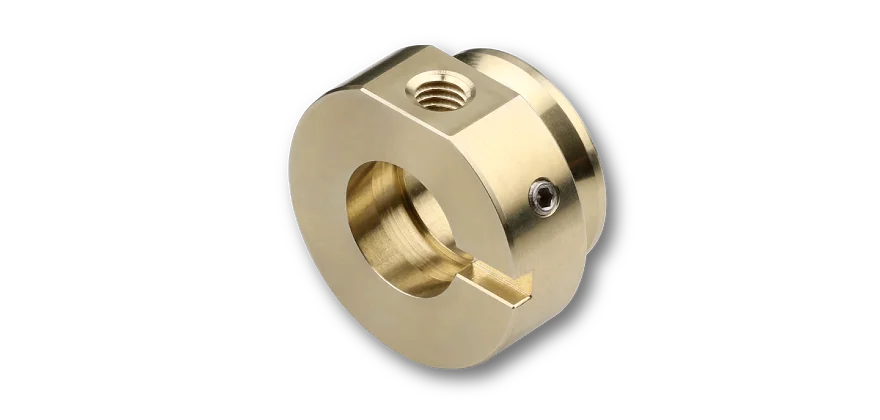

Adapter for fiber collimators type 60FC-...-XV.
Radial bore hole and M3, M4 or M5 thread for flushing the entire fiber collimator e.g. with nitrogen.
Outer diameter Ø 25 mm e.g. for use with standard kinematic mirror mount or with system mount Ø 19.5 mm
12C-AM25-M3
12C-AM25-M4
12C-AM25-M5

Products

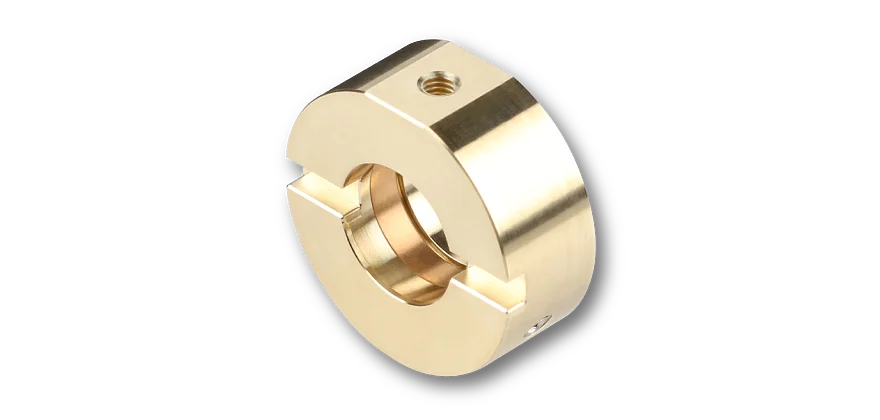

Adapter for fiber collimators type 60FC-...-XV.
Radial bore hole and M3 thread for flushing the entire fiber collimator e.g. with nitrogen.
Outer diameter Ø 25 mm e.g. for use with standard kinematic mirror mounts.

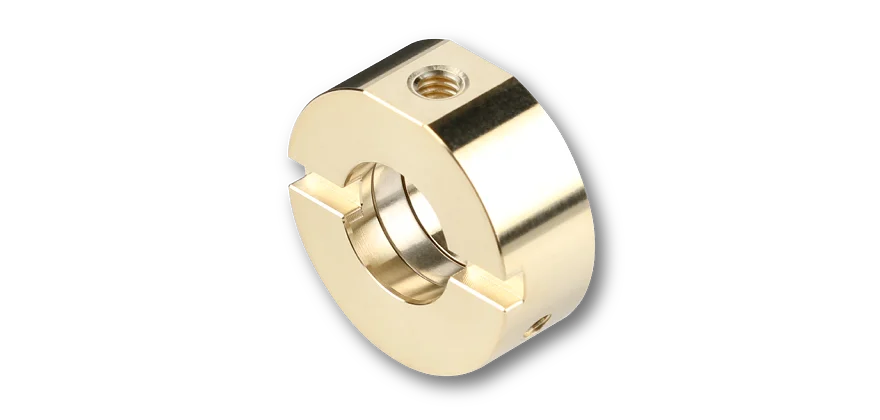

Adapter for fiber collimators type 60FC-...-XV.
Radial bore hole and M4 thread for flushing the entire fiber collimator e.g. with nitrogen.
Outer diameter Ø 25 mm e.g. for use with standard kinematic mirror mounts.
Adapter for fiber collimators type 60FC-...-XV.
Radial bore hole and M5 thread for flushing the entire fiber collimator e.g. with nitrogen.
Outer diameter Ø 25 mm e.g. for use with standard kinematic mirror mounts.
Adapter for fiber collimators type 60FC-...-XV.
Radial bore hole and M3 thread for flushing the entire fiber collimator e.g. with nitrogen.
Outer diameter Ø 25 mm e.g. for use with standard kinematic mirror mounts.
Adapter for fiber collimators type 60FC-...-XV.
Radial bore hole and M4 thread for flushing the entire fiber collimator e.g. with nitrogen.
Outer diameter Ø 25 mm e.g. for use with standard kinematic mirror mounts.

The same adapter aslo can be used for fiber collimators of series 60FC and 60FC-SF in order to mount them on post mounts with a M4 thread.
Adapter for fiber collimators type 60FC-...-XV.
Radial bore hole and M5 thread for flushing the entire fiber collimator e.g. with nitrogen.
Outer diameter Ø 25 mm e.g. for use with standard kinematic mirror mounts.
Adapter for fiber collimators type 60FC-...-XV.
Radial bore hole and M4 thread for flushing the entire fiber collimator e.g. with nitrogen.
System mount Ø 19.5 mm
Adapter for fiber collimators type 60FC-...-XV.
Radial bore hole and M3 thread for flushing the entire fiber collimator e.g. with nitrogen.
System mount Ø 19.5 mm
Adapter for fiber collimators type 60FC-...-XV.
Radial bore hole and M5 thread for flushing the entire fiber collimator e.g. with nitrogen.
System mount Ø 19.5 mm
