12AM25-M5

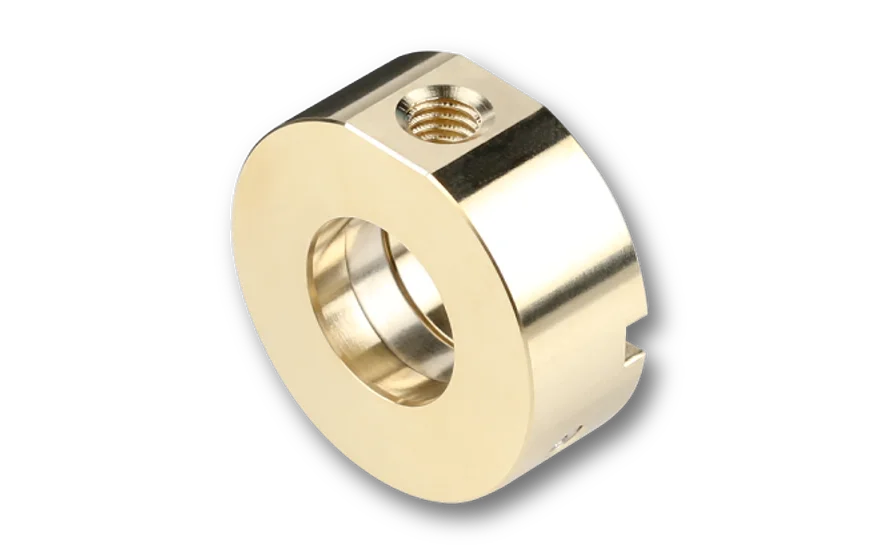

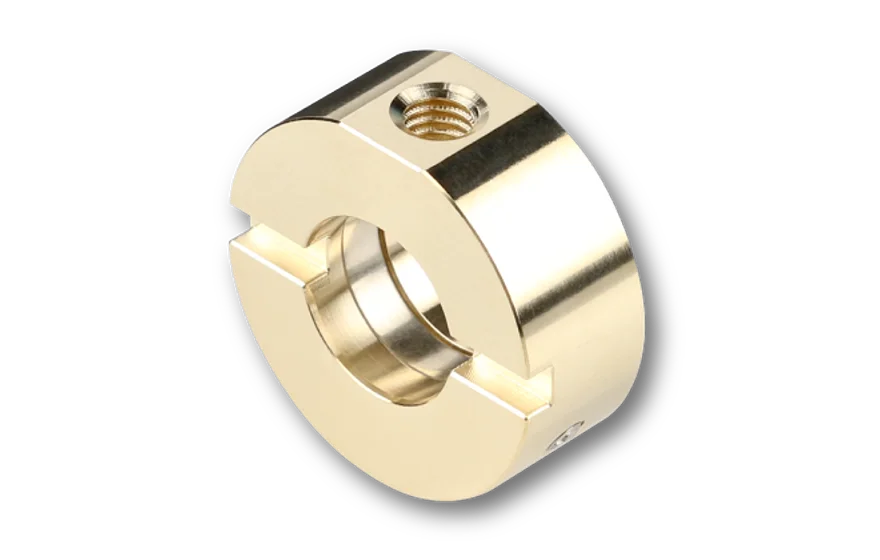

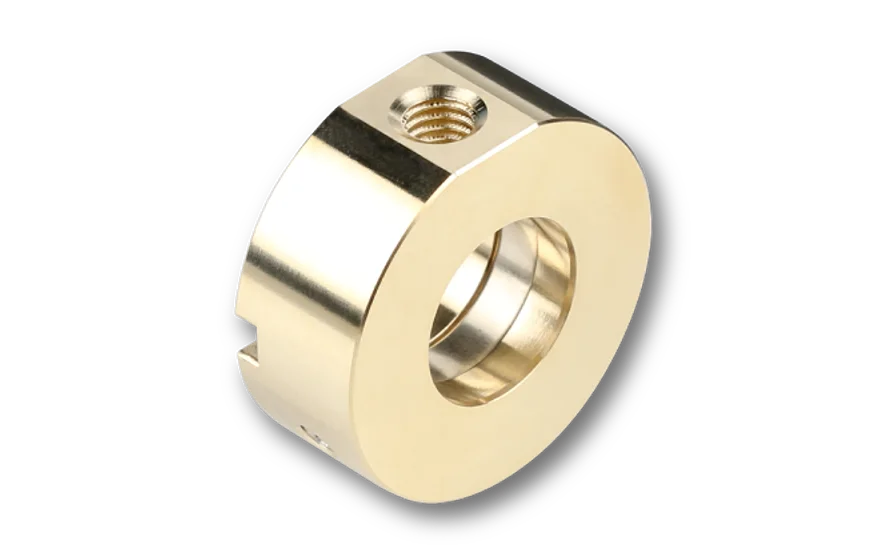

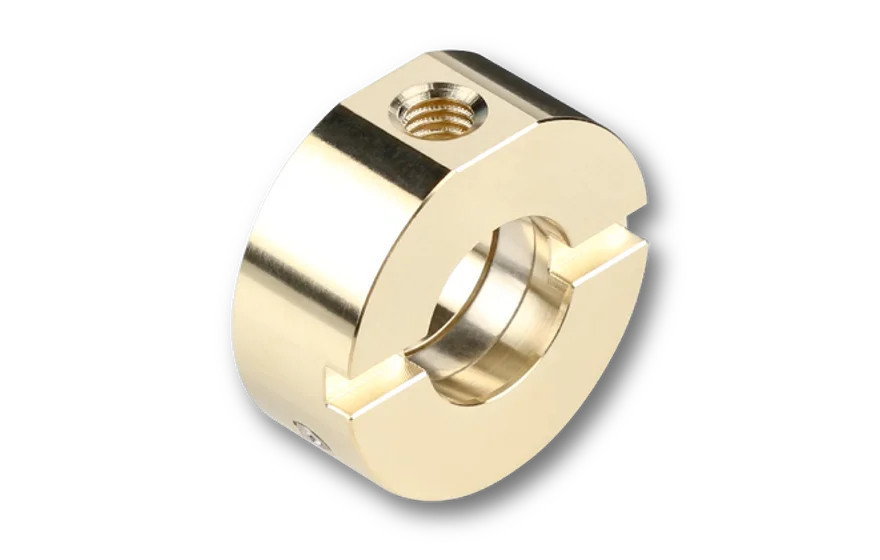

Adapter Ø 12 mm to Ø 25 mm with thread M5 for flushing nozzle

12AM25-M4
12AM25-M4
12AM25-M4
12AM25-M4
12AM25-M4
12AM25-M4
12AM25-M4
12AM25-M4

Features

Adapter for fiber collimators type 60FC-...-XV.
Radial bore hole and M5 thread for flushing the entire fiber collimator e.g. with nitrogen.
Outer diameter Ø 25 mm e.g. for use with standard kinematic mirror mounts.

Description

Adapter for fiber collimators type 60FC-...-XV.
The adapter has a radial bore hole and a M5 thread. The bore hole matches to the radial bore hole of the series 60FC-...-XV fiber collimators. By means of a M5 nozzle you can flush the entire fiber collimators e.g. with nitrogen.

  • Outer diameter Ø 25 mm e.g. for use with standard kinematic mirror mounts.
  • Indirect clamping
  • Nickel silver
  • The nozzle is not included
12AM25-Mx with 60FC fiber collimator

Technical data

12AM25-M5

Order Code
12AM25-M5
Adapter
Fitting bore
Outer diameter

Ø 12 mm
Ø 25 mm
Clear aperture
Ø 12 mm
Thread for nozzle
M5
Material
Nickel silver
Weight
31 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

12AM25-Mxxx

Accessories

50HD-15
Hex key WS 1.5
