12AM19.5-M5

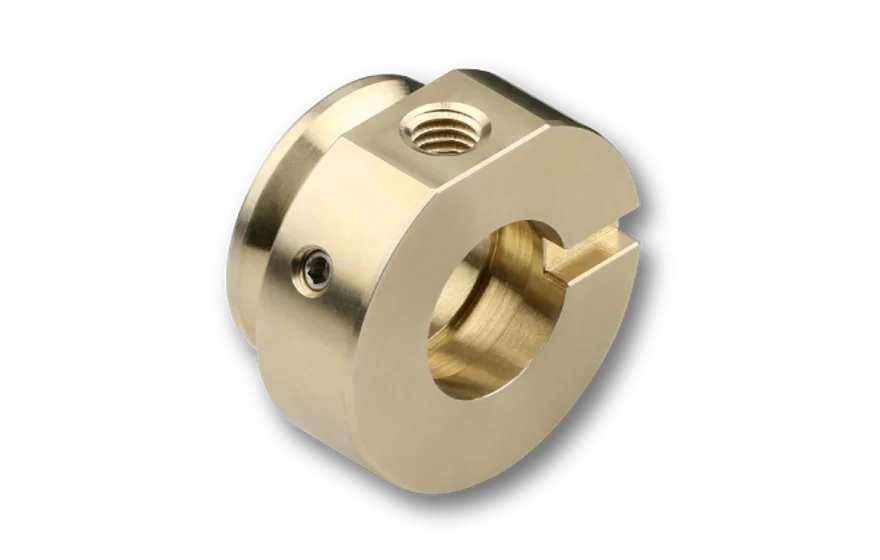

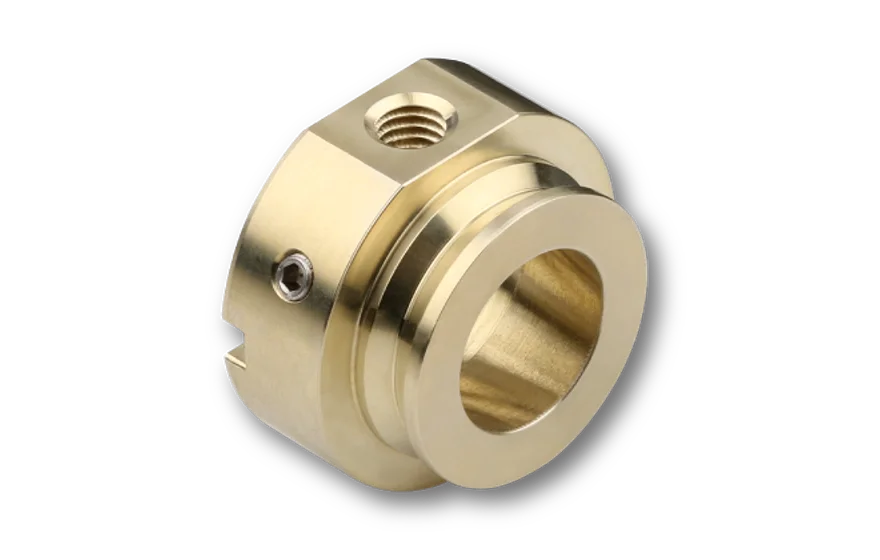

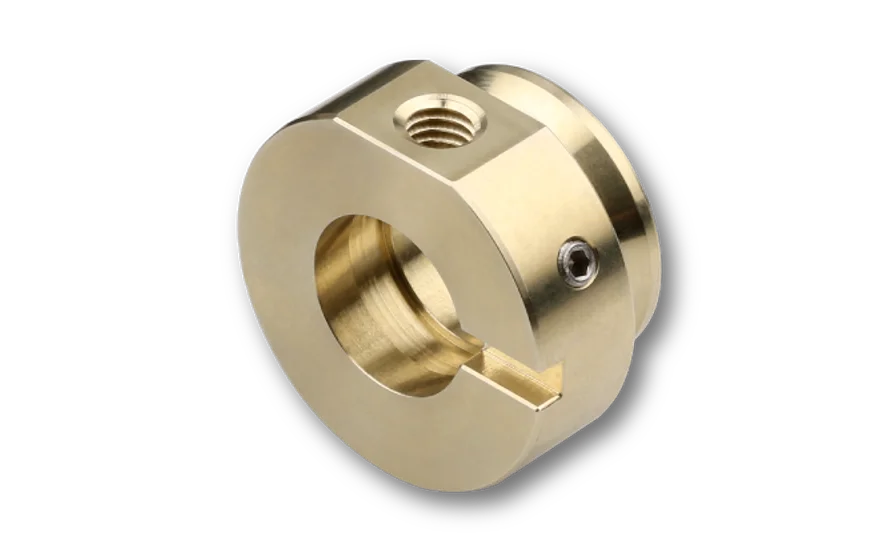

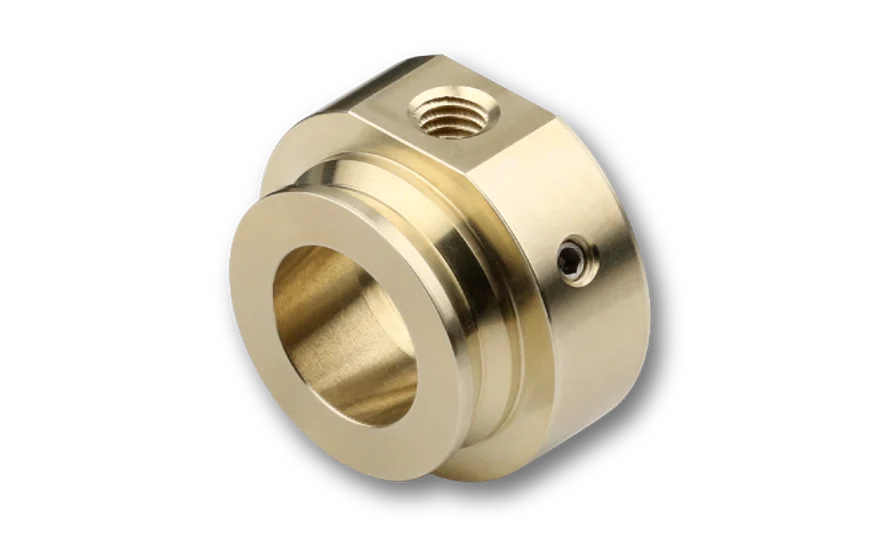

Adapter Ø 12 mm to system mount Ø 19.5 mm with thread M5 for flushing nozzle

12AM19.5-M5
12AM19.5-M5
12AM19.5-M5
12AM19.5-M5

Features

Adapter for fiber collimators type 60FC-...-XV.
Radial bore hole and M5 thread for flushing the entire fiber collimator e.g. with nitrogen.
System mount Ø 19.5 mm

Description

Adapter Ø 12 mm to system mount Ø 19.5 mm for fiber collimators type 60FC-...-XV.
The adapter has a radial bore hole and a M5 thread. The bore hole matches to the radial bore hole of the series 60FC-...-XV fiber collimators. By means of a M5 nozzle you can flush the entire fiber collimators e.g. with nitrogen.
  • System mount Ø 19.5 mm e.g. for integration into the multicube™ system
  • Indirect clamping of  the fiber collimator
  • Nickle silver
  • The nozzle is not included

Technical data

12AM19.5-M5

Order Code
12AM19.5-M5
Adapter
Fitting bore
System mount

Ø 12 mm
Ø 19.5 mm

Indirect clamping

Clear aperture
Ø 12 mm
Thread for nozzle
M5
Material
Nickel silver
Weight
32 g
