Compact Laser Micro Focus Generator with rotationally symmetric beam profile


Compact laser spot with rotationally symmetric, Gaussian beam profile.
  • Spot diameter: 0.003 x 0.003 mm
  • Wavelength: 658 nm
  • Working distance: 7.4 mm
  • Micro Focus Generator for small spot widths and high power density in the focal plane

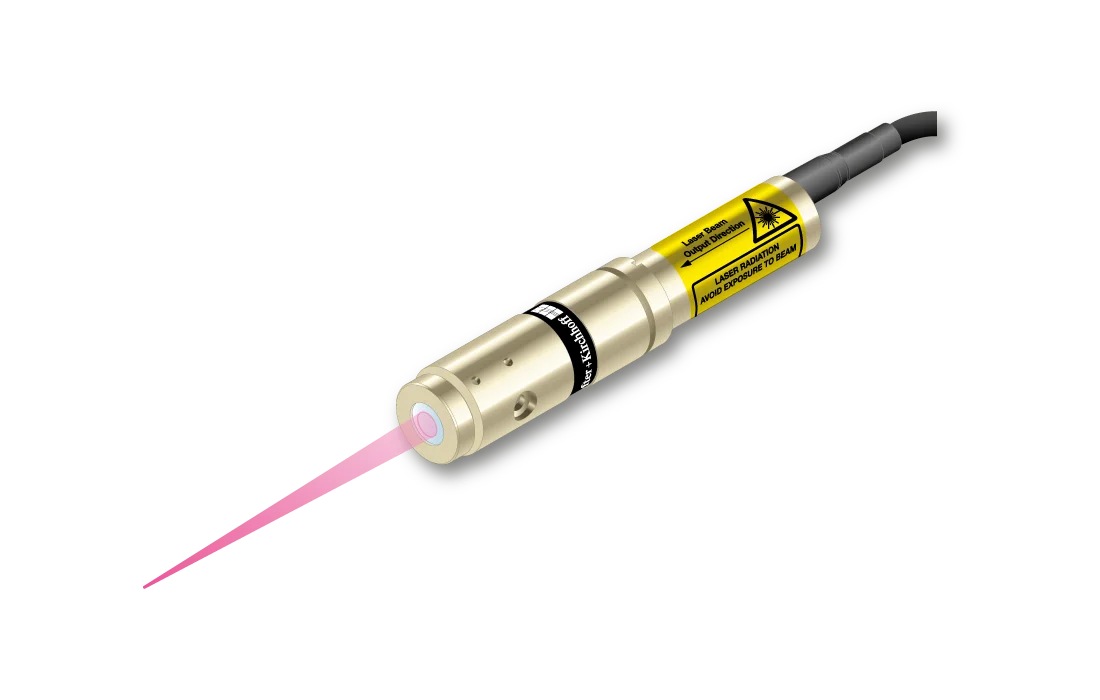

The laser diode beam source type 5MC-A11+29CM-658-24-B09-M12-S-6 produces a rotationally symmetric circular laser spot with Gaussian intensity distribution.

The laser has integrated electronics type S for control of the laser output power. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.

The working distance can be adjusted by adjusting the focus setting. Please note that the spot diameter increases proportionally to the working distance. A fine-adjustment of the distance between laser and target is recommended for fine-focusing.

Technical data


Order Code
Line profile
Gaussian Intensity Distribution
658 +5/-5 nm
Laser output power
24 mW
Laser safety class
Focussing range
6-15 mm
Working distance
7.4 mm
Spot height
0.003 mm
Spot width
0.003 mm
Rayleigh range
0.025 mm
Diameter laser module
12 mm
Module length
68.5 mm
Installation length
105.9 mm
Cable length
1.5 m
Connector type
Lumberg SV50 IEC 61076-2-106
Supply voltage
5 ± 0.25 V
Max. current consumption
0.25 A
Working temperature
0 - 40 °C
Modulation inputs
Input resistance
22 kOhm
22 kOhm
Max. modulation frequency
50 kHz
1000 kHz
Modulation delay ON/OFF
4/0.5 µs
0.05/0.05 µs
Rise / Fall time
5/4 µs
0.1/0.02 µs

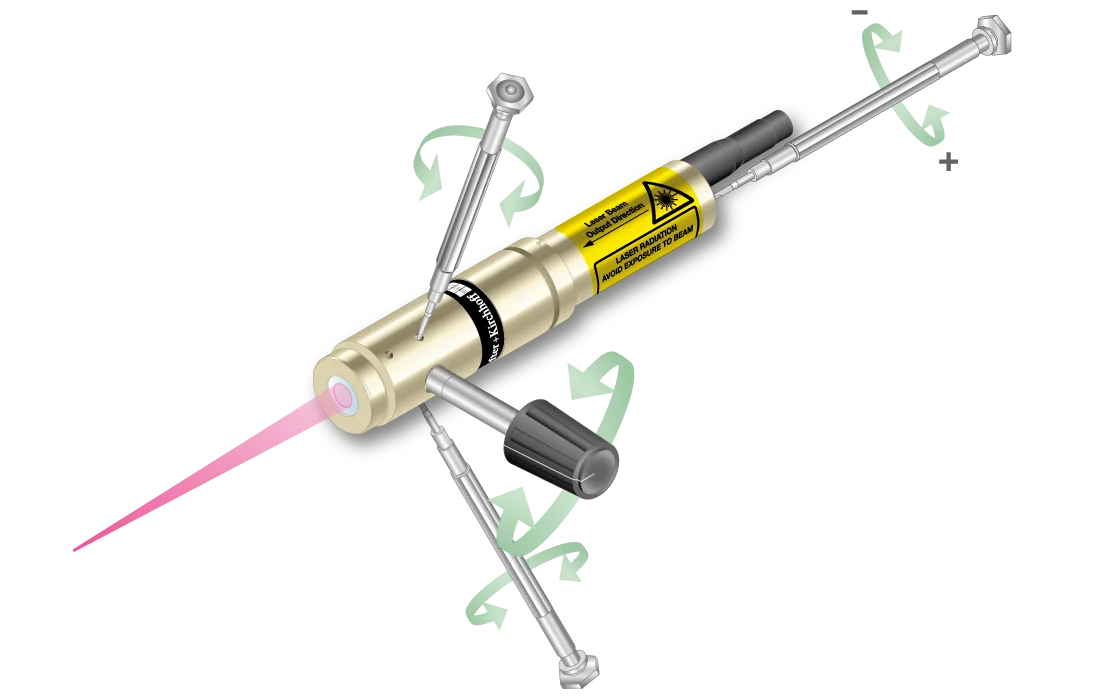

Eccentric key with a stroke of ± 0.5 mm.
Alternative eccentric key with long handle with a stroke of ± 0.5 mm.
Screwdriver WS 1.2
Power Supply 5 V
