Features

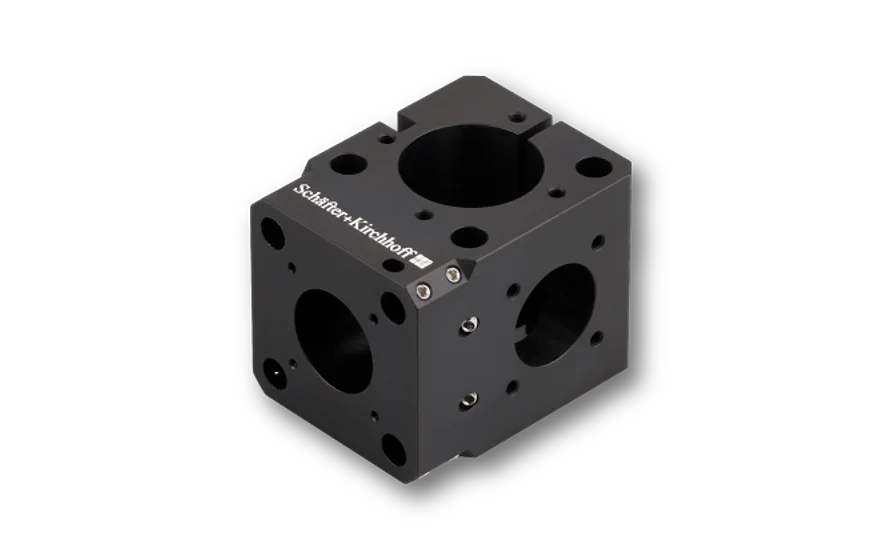

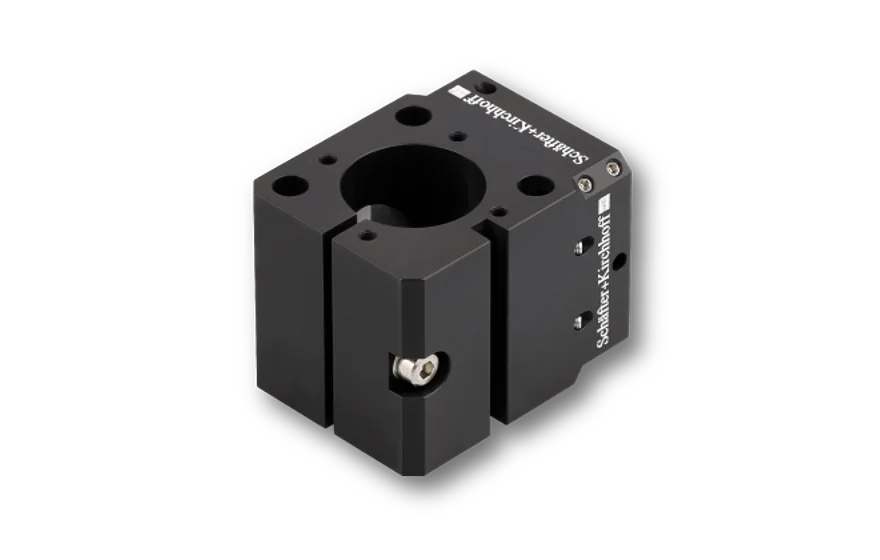

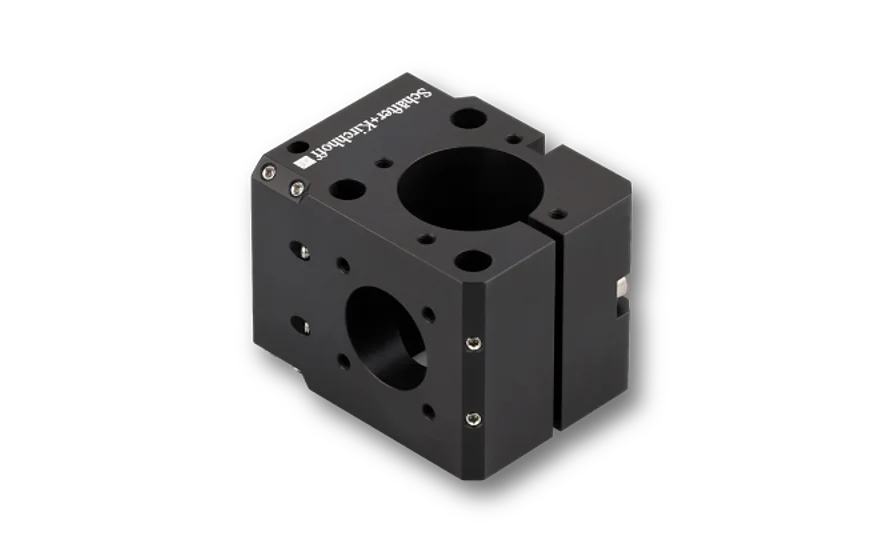

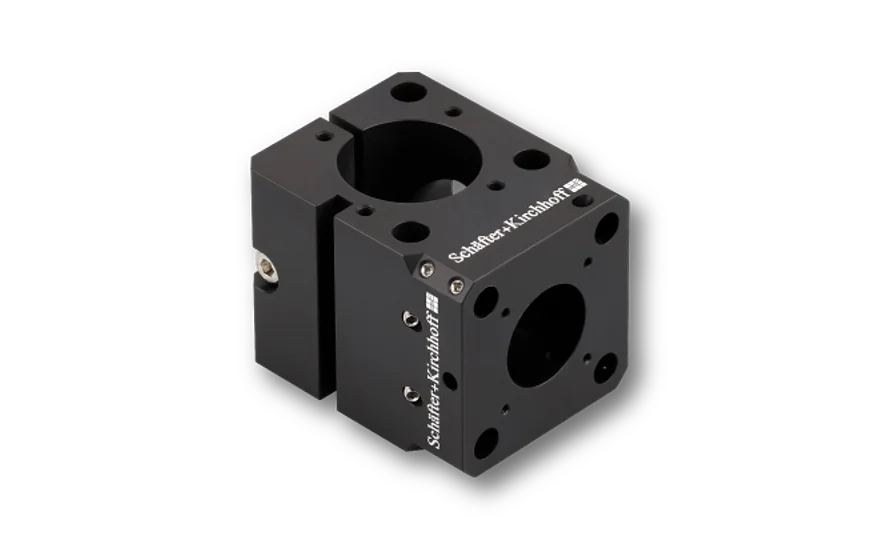

Clamping cube for the Schäfter+Kirchhoff multicube™ system.

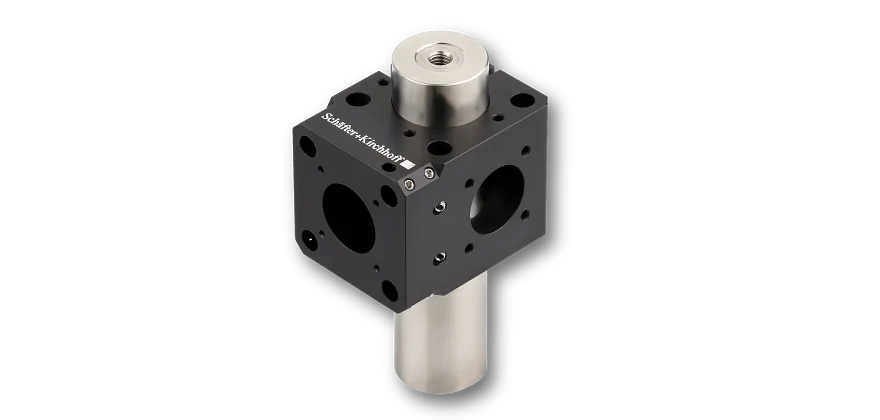

This cube is used for claming a multicube™ system on a Ø 25 mm post
Description
Clamping cube for the Schäfter+Kirchhoff multicube™ system.
This cube is used for claming a multicube™ system on a Ø 25 mm post.
Technical data
48MC-LTS-25AM
Order Code
48MC-LTS-25AM
Type
Single cube
for post mount
Dimensions
42 x 42 x 54 mm
Fitting bore
Ø 25 mm
Material
Black anodized aluminum
Weight
158 g
FAQ
- Compatability of the multicube system
- Is my system compatible to established 30 mm cage systems or microbench systems?The multicube components of series 48 have a rod hole distance of 30 mm. You can attach systems based on those components easily to a 30 mm cage systems or microbench system. More informaion can be found here.If you are working with a system based on series 68, there are adapters available, so that they can be used with 30 mm cage systems as well.
- Is my system compatible to established 60 mm cage systems?
The multicube components of series 68 have a rod hole distance of 60 mm. You can attach systems based on those components easily to a 60 mm cage systems or microbench system. More informaion can be found here.
If you are working with a system based on series 48, there are adapters available, so that they can be used with 60 mm cage systems as well.
