48-FPC-2-6_lp-xxx

Fiber Port Cluster 2 ⇾ 6 long pass

Fiber Port Cluster 2-6_lp
Fiber Port Cluster 2-6_lp
Fiber Port Cluster 2-6_lp
Fiber Port Cluster 2-6_lp
Fiber Port Cluster 2-6_lp
Fiber Port Cluster 2-6_lp
Fiber Port Cluster 2-6_lp
Fiber Port Cluster 2-6_lp

Features

Fiber Port Cluster for two input sources with differing wavelength and with six output ports.
  • Configuration 2 ⇾ 6 long pass
  • Superposition by means of a dichroic mirror
  • Highly efficient coupling into polarization-maintaining fiber cables
  • Adjustable splitting ratio
  • Compact, rugged, transportable and sealed opto-mechanical units
  • Fully fiber-coupled
  • Very high long-term stability, efficiency and reproducability

Description

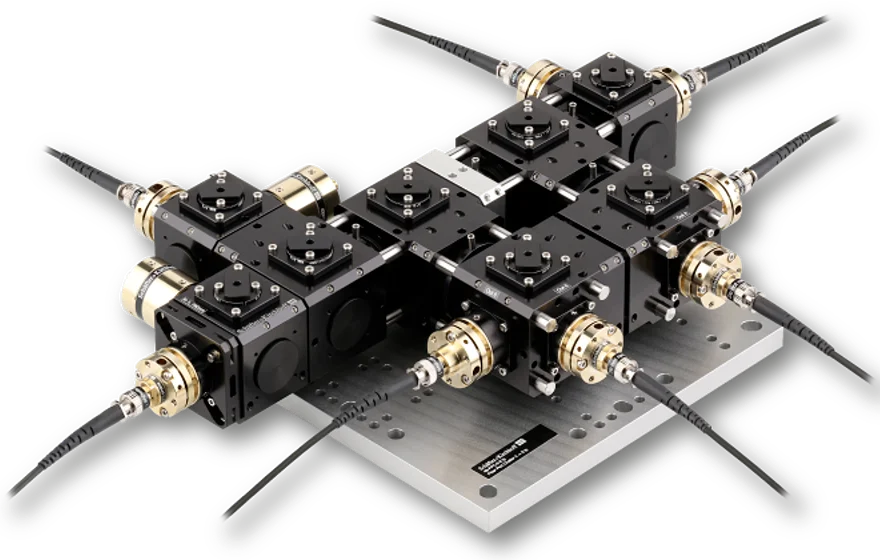

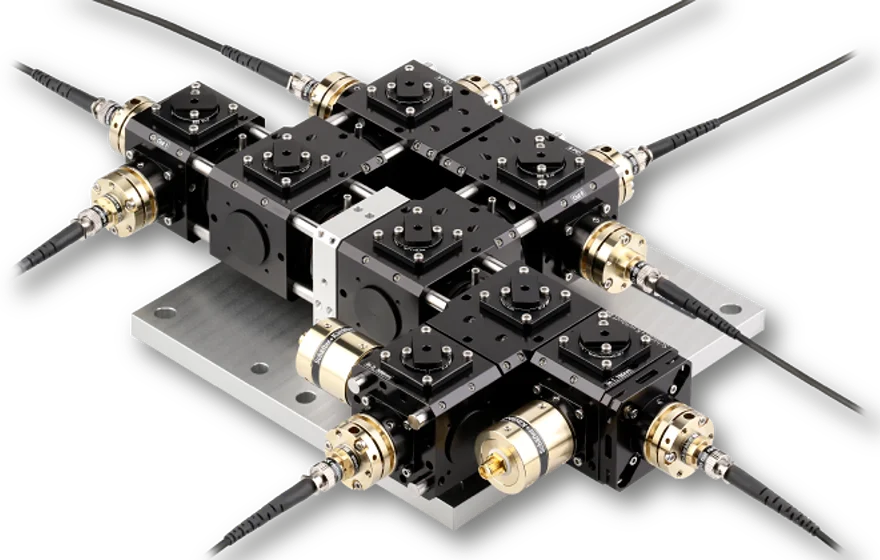

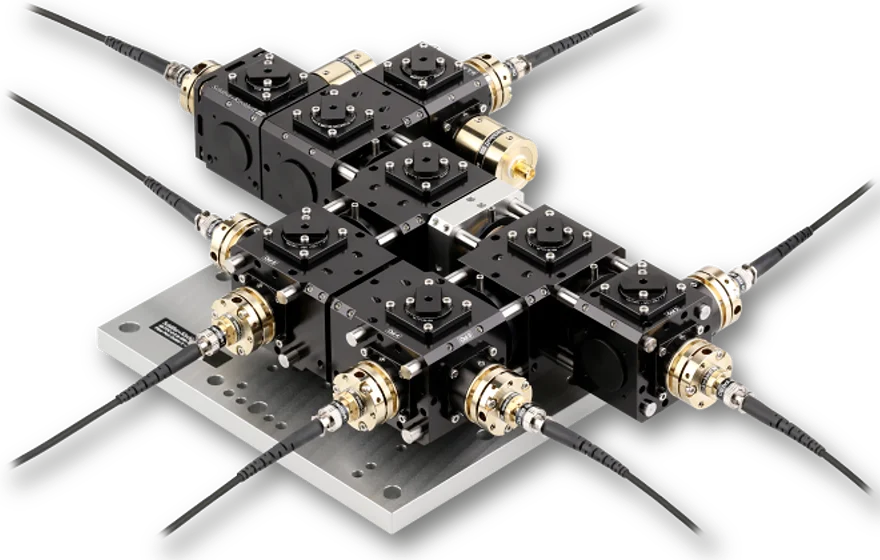

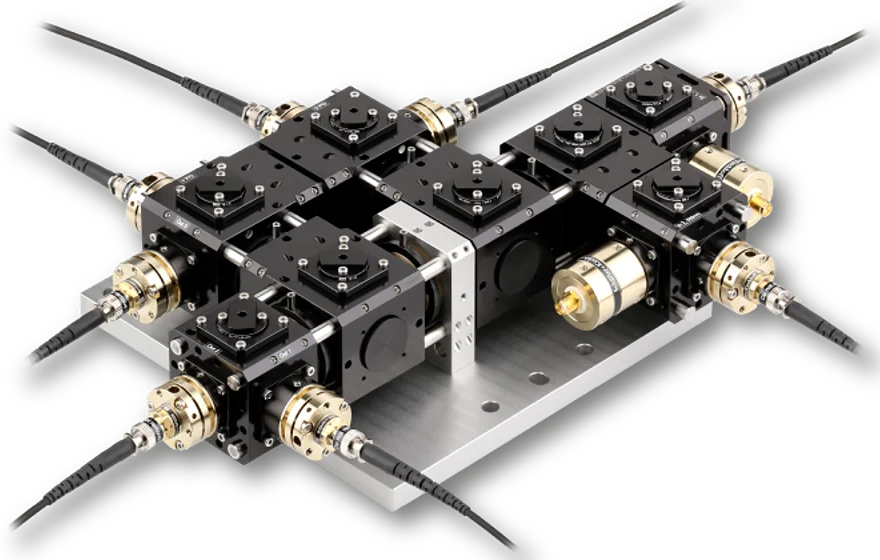

This Fiber Port Cluster 2 ⇾ 6 long pass is a compact opto-mechanical unit that combines two fiber-coupled sources with differing wavelengths and then splits the combined radiation into 6 output fiber cables with high efficiency and variable splitting ratio.

Optical Setup
The two input ports are fiber-coupled to PM fiber cables. Polarizers define the input polarization which is necessary for a long term stable splitting ratio.
Two photo diodes right after each input port allow for a continuous monitoring of the radiation. The two differing input sources are superimposed by means of a dichroic mirror (long pass).
Subsequently, the radiation splitting is achieved by using a cascade of rotary half-wave plates in combination with polarization beam splitters. By use of the rotary half-wave plates, almost any desired splitting ratio can be achieved.
At the output ports further polarizers are placed in order to define the polarization at output of the system.

Fiber Couplers
A fundamental component of a Fiber Port Cluster is the Laser Beam Coupler, which is the input into the opto-mechanical unit collimating the input radiation and, finally, couples the radiation back into the polarization-maintaining fiber cables. The stability of the total Fiber Port Cluster is determined by the stability of the laser beam coupler.

How to order
For a detailed quotation please additionally specify

  • Wavelengths In 1 and In 2
  • Cable lengths
  • Connector types
48-FPC-2-6_lp

Technical data

48-FPC-2-6_lp-xxx

Configuration
2 ⇾ 6 long pass
Wavelengths*
399 + 556 nm, 403 + 461 nm, 461 + 689 nm, 780 + 852 nm
Fiber type
polarization-maintaining
Connector type
FC APC (standard)
Cable lengths
Customer-specific
Wave plate type
dichroic
Power monitor
BPX-61 (SMA)
Transmission
≥ 60 % @ 780 nm
Polarization Extinction Ratio
≥ 23 dB @ 780 nm
Balancing
better 5 %
* Different wavelength combinations on request
