25AM-0-FC

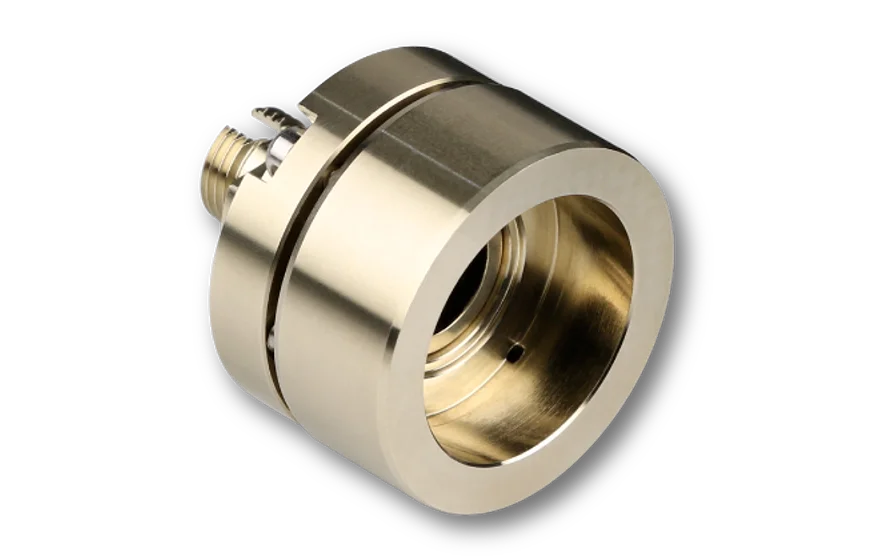

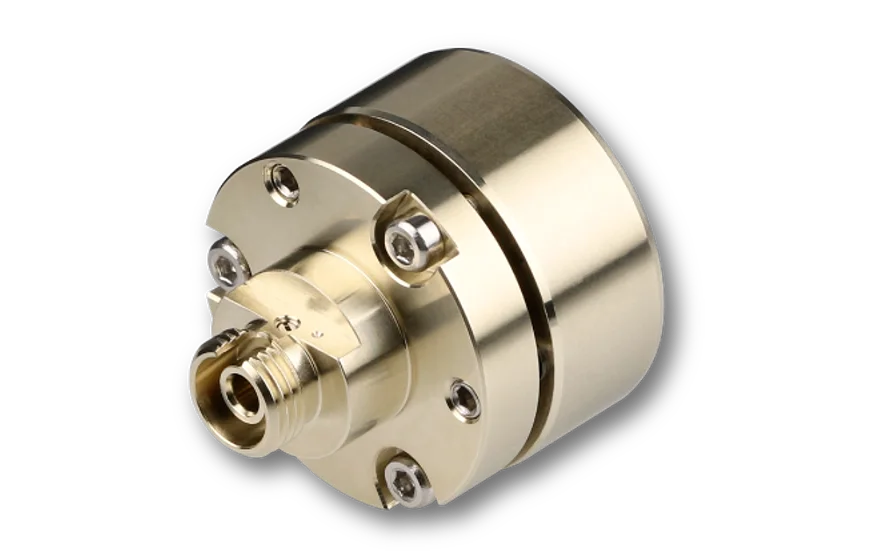

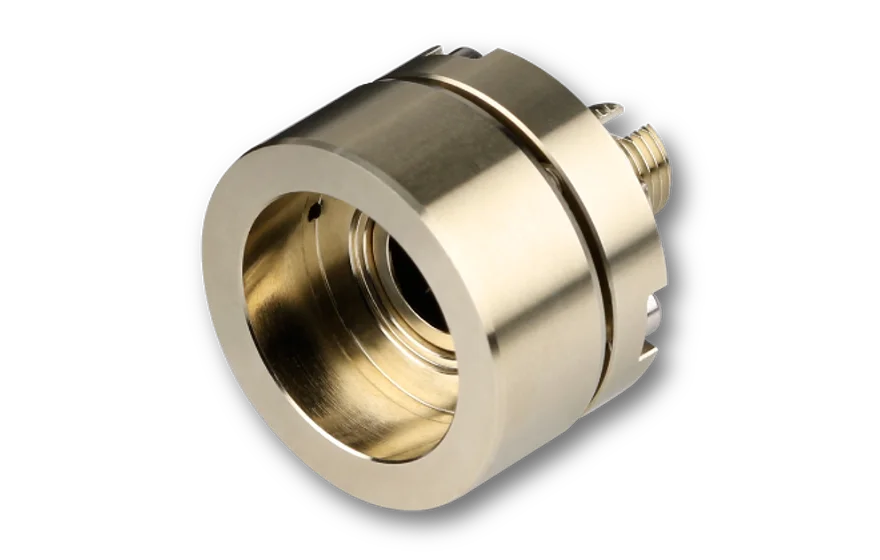

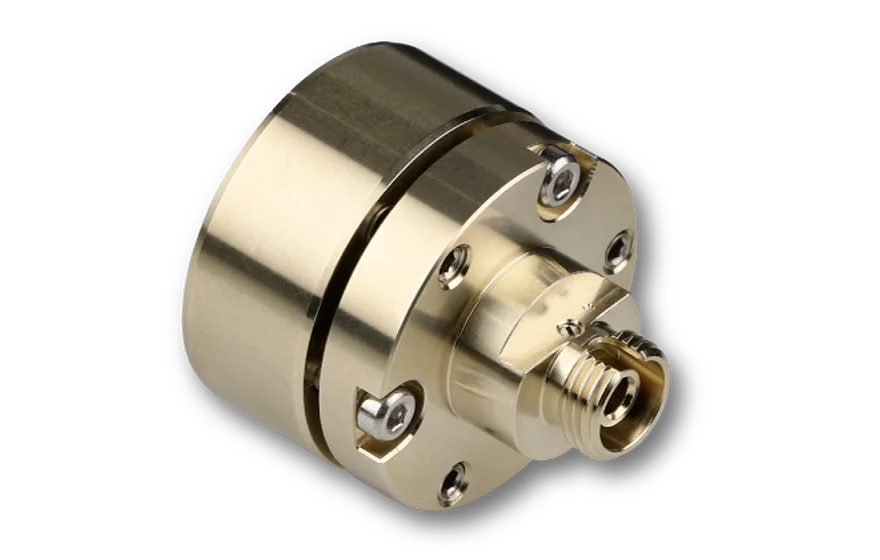

Bulkhead fiber adapter FC PC to Ø 25 mm with Tilt alignment

25AM-0-FC
25AM-0-FC
25AM-0-FC
25AM-0-FC

Features

Bulkhead fiber adapter
  • Receptacle type FC PC
  • Outer diameter Ø 25 mm
  • Paraxial coupling axis
  • TILT alignment
  • With integrated TILT adjustment

Technical data

25AM-0-FC

Order Code
25AM-0-FC
Adapter
Outer diameter
FC PC

Ø 25 mm

Paraxial coupling axis
TILT alignment
± 1.5°
Material
Nickel silver
Weight
45 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

25AM-0-FC

Downloads

970920520621.pdf (Dimensional drawing)
970920520621.stp (STEP model)
970920520621.stp (STEP model, for registered users only)

Benefits of user registration include

  • Extended information for download including stepfiles, software or manuals
  • Direct download of user-specific downloads (e.g. user-specific software)
  • Access to previous online requests and the possibility to add complete previous lists to the "Request for quote" list
  • Stored item list
Click here to register.

Accessories

Screwdriver WS 1.2
Hex key WS 1.5
