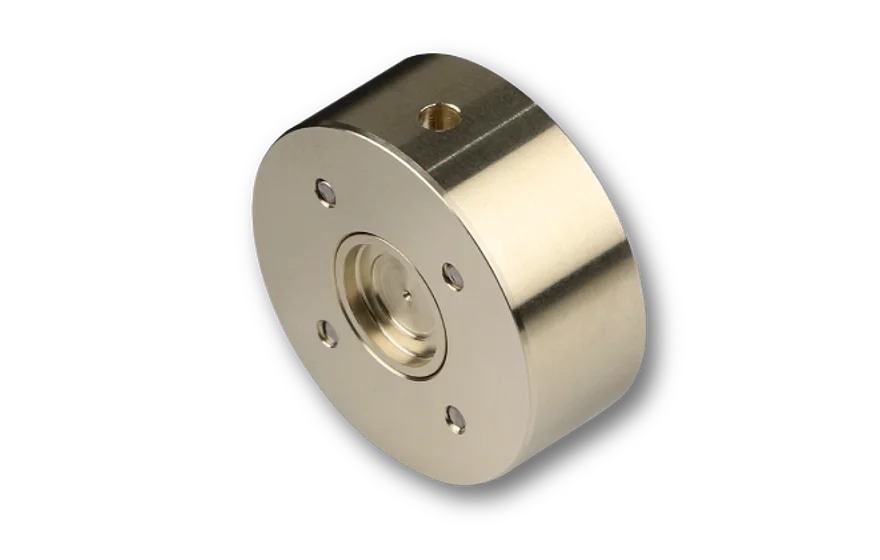

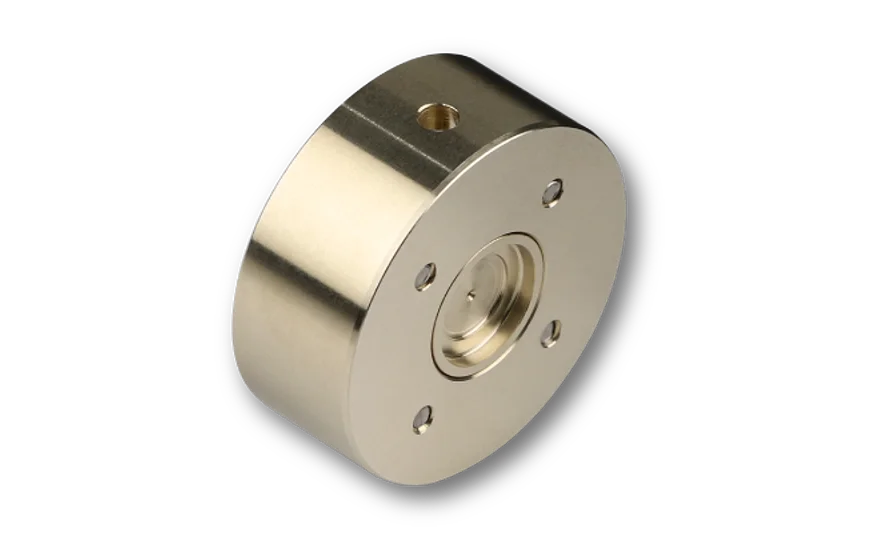

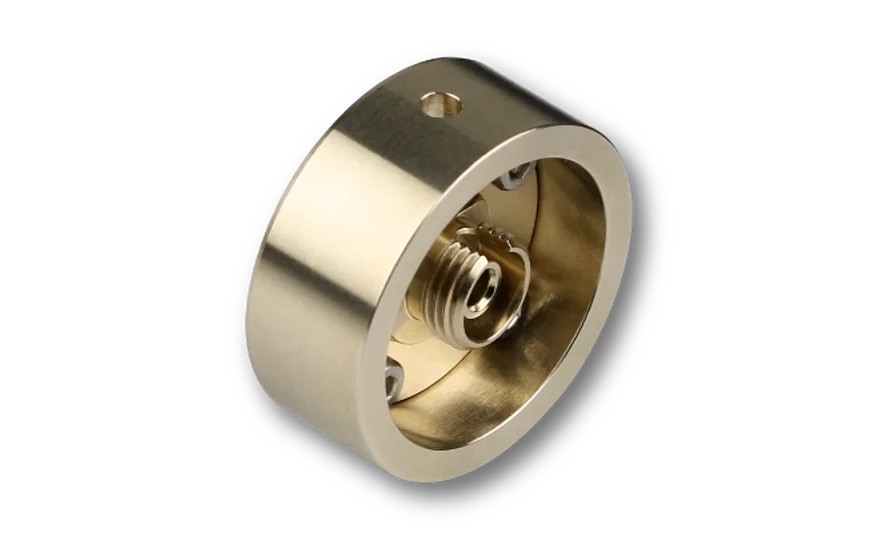

25AF-4-FC

Bulkhead fiber adapter FC APC to Ø 25 mm

25AF-4-FC
25AF-4-FC
25AF-4-FC
25AF-4-FC

Features

Bulkhead fiber adapter
  • Receptacle type FC APC
  • Outer diameter Ø 25 mm
  • Inclined coupling axis

Technical data

25AF-4-FC

Order Code
25AF-4-FC
Adapter
Outer diameter
FC APC

Ø 25 mm

Inclined coupling axis
4° (for 8° polished connectors)
Material
Nickel silver
Weight
26 g

Dimensions (for a complete dimensional drawing please refer to the downloads section)

25AF-4-FC

Downloads

970920520606.pdf (Dimensional drawing)
970920520606.stp (STEP model)
970920520606.stp (STEP model, for registered users only)
