Mounting options for Fiber Collimators series 60FC and 60FC-SF

Mounting options for Fiber Collimators series 60FC and 60FC-SF

Example of use
Example of use

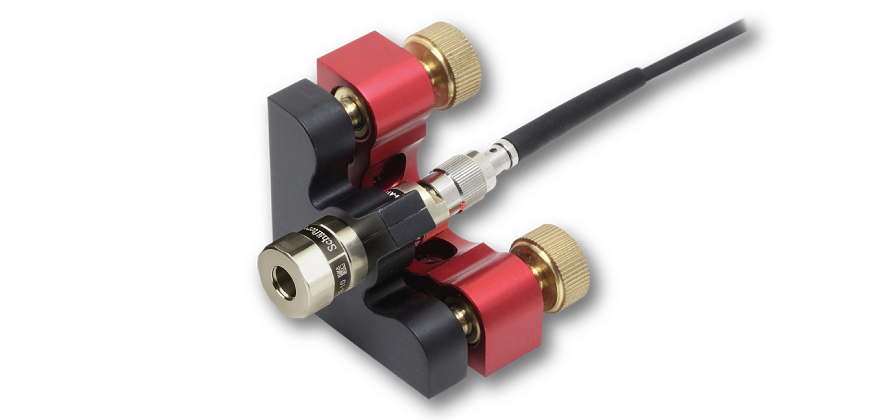

Mounting using a specialized mirror mount

The fiber collimators series 60FC and 60FC-SF can be mounted directly using a special mirror mount by radiant-dyes type MDI-HS-2-3012T.

For more information refer to www.radiant-dyes.com
Adapter 12C-AM25
Adapter 12C-AM25

Mounting using a 1'' mirror mount

The fiber collimators series 60FC and 60FC-SF can be mounted using the adapter 12AM25.4

Using this adapter the collimator can then be placed into a standard 1'' mirror mount.

Example of use
Example of use

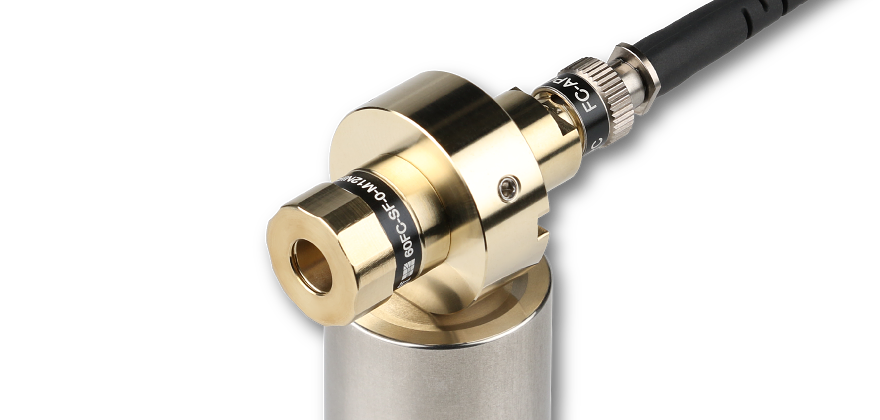

Mounting using a post mount

The fiber collimators series 60FC and 60FC-SF can be mounted using the adapter 12AM25-M4.

Using this adapter the collimator can then be mounted to a post mount with M4 type thread.
