Accessories for M72-Mount Cameras

Various accessories such as lens adapters or focus adaters for tube or lens mount in the dimension M72x0.75 on the camera side

Products

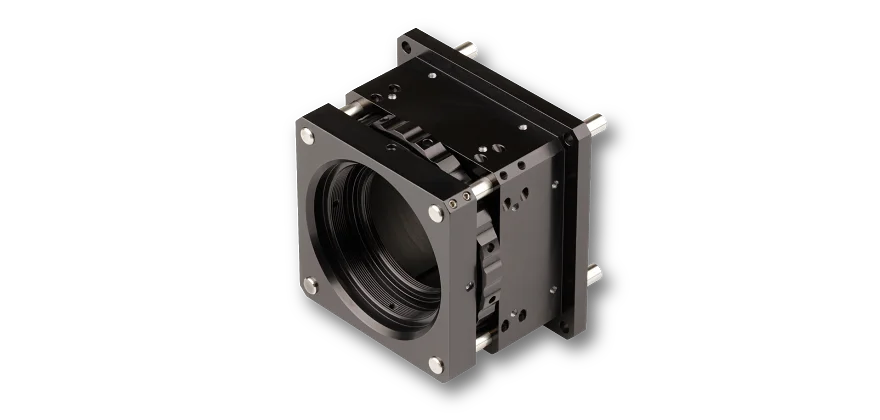

High precision focus adapter from Ø 71.25 mm to M45x0.75 with adjustable length from 41 to 71 mm

Appropriate for Large Format Line Scan Cameras (...-XL/-XB/-XC) with sensor length > 45 mm.

The stable linear tracking rods provide a precise focusing mechanism that can be locked firmly in the final position.
High precision focus adapter from Ø 71.25 mm to M55x0.75 with adjustable length from 51 to 80 mm


In combination with the adapter AOC-XC-72 to be attached to Large Format Line Scan Cameras (...-XC) with 71 mm sensor length.

The stable linear tracking rods provide a precise focusing mechanism that can be locked firmly in the final position.

Order Options

Order CodeMount (Lens side)Mount (Camera side)Length (Optical path)
AOC-F-72F-MountM72x0.7540.5 to 69.5 mm
FA26-S45M45x0.75Ø 71.25 mm50.5 to 79.5 mm
FA26-S55M55x0.75Ø 71.25 mm22.8 mm
