Mounting Consoles Series 13MK

for Laser Modules with housing Ø 25/28 mm

The Mounting Consoles of series 13MK allow a precise and mechanically rugged alignment of Laser Modules with Ø 25/28 mm. The lasers are held by means of a clamp collar in such away that the focussing and focus locking mechanism remain accessible.

The Mounting Consoles series 13MK-25-36-10 are designed for e.g. Laser Line Generators with fan angle and provide 2 degrees of freedom:

Rotation (0 - 360°) around the optical axis
In-plane rotation (0 - 360°)

The Mounting Consoles series 13MK-25-3D are designed for e.g. Semi-telecentric Laser Line Generators or Focus Generators and provide 3 degrees of freedom:

Rotation (0 - 360°) around the optical axis
In-plane rotation (0 - 360°)
Tilt (inclination, ± 5°)

Both series are available with 2 different base plates, respectively:

Flat base plate (-F)
Base plate with 66 mm dovetail (DIN 17615) (-M)

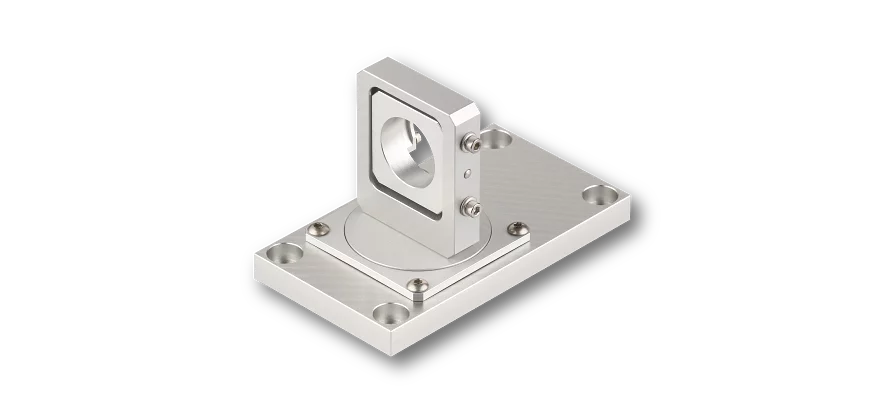

13MK-25-36-F

13MK-25-36-M

13MK-25-3D-F

13MK-25-3D-M

Products

13MK-25-36-10-F

The Mounting Console of type 13MK-25-36-10-F with flat base plate allows a precise and mechanically rugged alignment of Laser Modules with Ø 25/28 mm. The lasers are held by means of a clamp collar in such a way that the focussing and focus locking mechanism remain accessible.

The Mounting Console is designed for lasers line generators with fan angle (e.g. series 13LR or 13LN, 5LM or 5LP (5LM, 5LP with Ø 25/28 mm only)) and provides 2 degrees of freedom:

Rotation (0 - 360°) around the optical axis
In-plane rotation (0 - 360°)

13MK-25-36-10-M6

The Mounting Console of type 13MK-25-36-10-M6 with flat base plate allows a precise and mechanically rugged alignment of Laser Modules with Ø 25/28 mm. The lasers are held by means of a clamp collar in such a way that the focussing and focus locking mechanism remain accessible.

The Mounting Console is designed for lasers line generators with fan angle (e.g. series 13LR or 13LN, 5LM or 5LP (5LM, 5LP with Ø 25/28 mm only)) and provides 2 degrees of freedom:

Drilling pattern 50 x 100 mm, Ø 6.5 mm
Rotation (0 - 360°) around the optical axis
In-plane rotation (0 - 360°)

13MK-25-36-10-M

The Mounting Consoles of type 13MK-25-36-10-M with base plate with dovetail profile allows a precise and mechanically rugged alignment of Laser Modules with Ø 25/28 mm. The lasers are held by means of a clamp collar in such a way that the focussing and focus locking mechanism remain accessible.
The Mounting Console is designed for lasers line generators with fan angle (e.g. series 13LR or 13LN, 5LM or 5LP (5LM, 5LP with Ø 25/28 mm only)) and provides 2 degrees of freedom:

Rotation (0 - 360°) around the optical axis
In-plane rotation (0 - 360°)

The Mounting Console has a base plate with dovetail (compatible to Quick-Set 40 and XT66).

13MK-25-3D-F

The Mounting Console of type 13MK-25-3D-F with flat base plate allows a precise and mechanically rugged alignment of Laser Modules with Ø 25/28 mm. The lasers are held by means of a clamp collar in such a way that the focussing and focus locking mechanism remain accessible.
The Mounting Console is designed for all lasers with Ø 25/28 mm and provide 3 degrees of freedom:

Rotation (0 - 360°) around the optical axis
In-plane rotation (0 - 360°)
Tilt (inclination, ± 5°)

13MK-25-3D-M6

The Mounting Console of type 13MK-25-3D-M6 with flat base plate allows a precise and mechanically rugged alignment of Laser Modules with Ø 25/28 mm. The lasers are held by means of a clamp collar in such a way that the focussing and focus locking mechanism remain accessible.
The Mounting Console is designed for all lasers with Ø 25/28 mm and provide 3 degrees of freedom:

Drilling pattern 50 x 100 mm, Ø 6.5 mm
Rotation (0 - 360°) around the optical axis
In-plane rotation (0 - 360°)
Tilt (inclination, ± 5°)

13MK-25-3D-M

The Mounting Consoles of type 13MK-25-3D-M with base plate with dovetail profile allow a precise and mechanically rugged alignment of Laser Modules with Ø 25/28 mm. The lasers are held by means of a clamp collar and the focussing and focus locking mechanism remain accessible.
The Mounting Console is designed for all lasers with Ø 25/28 mm and provide 3 degrees of freedom:

Rotation (0 - 360°) around the optical axis
In-plane rotation (0 - 360°)
Tilt (inclination, ± 5°)

The Mounting Console has a base plate with (compatible to Quick-Set 40 and XT66)

Order Options

Order Code	Degrees of Freedom	Description	Designed for Lasers Series
13MK-25-36-10-F	2	flat base plate	13LR, 13LN, 5LM, 5LP (5LM, 5LP with Ø 25/28 mm only)
13MK-25-36-10-M	2	base plate with dovetail profile	13LR, 13LN, 5LM, 5LP (5LM, 5LP with Ø 25/28 mm only)
13MK-25-3D-F	3	flat base plate	All with Ø 25/28 mm
13MK-25-3D-M	3	base plate with dovetail profile	All with Ø 25/28 mm
