Features

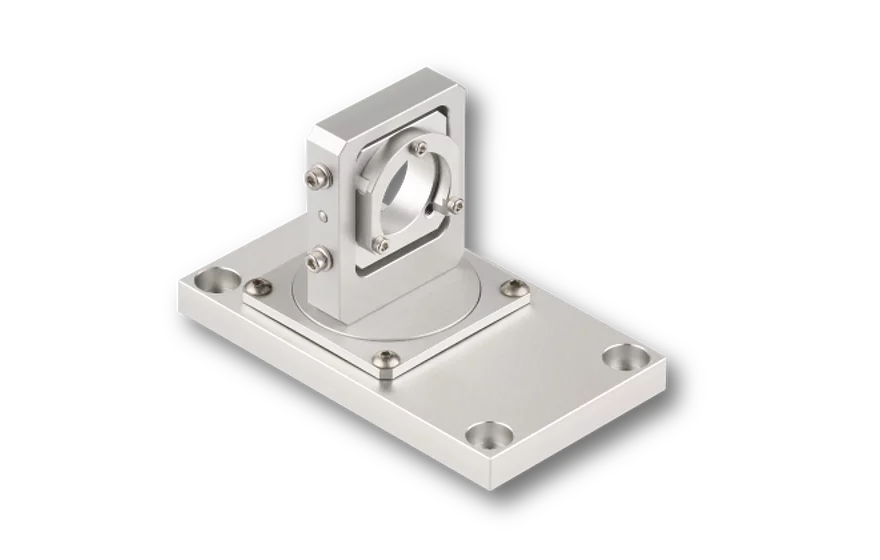

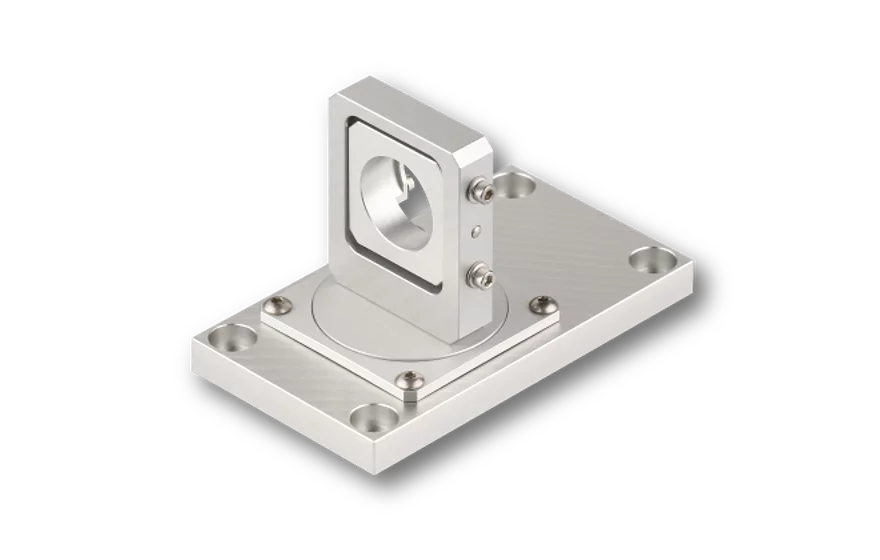

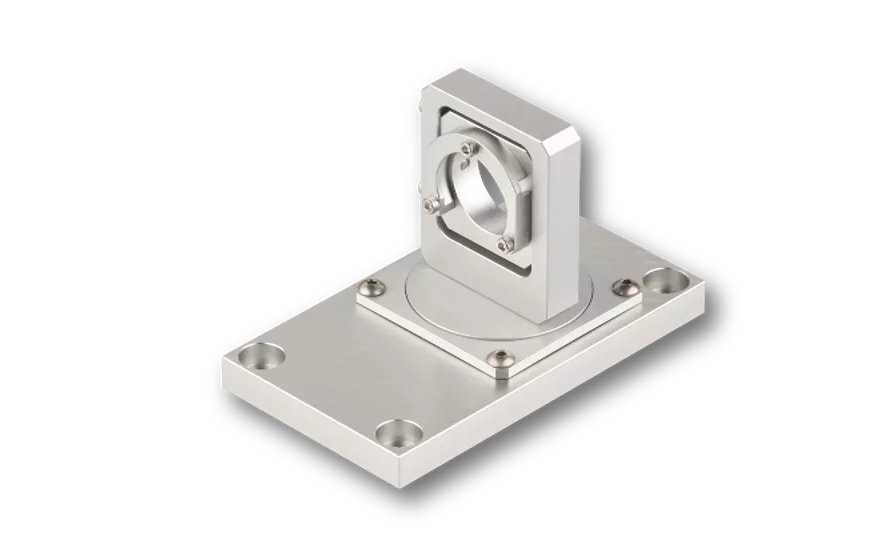

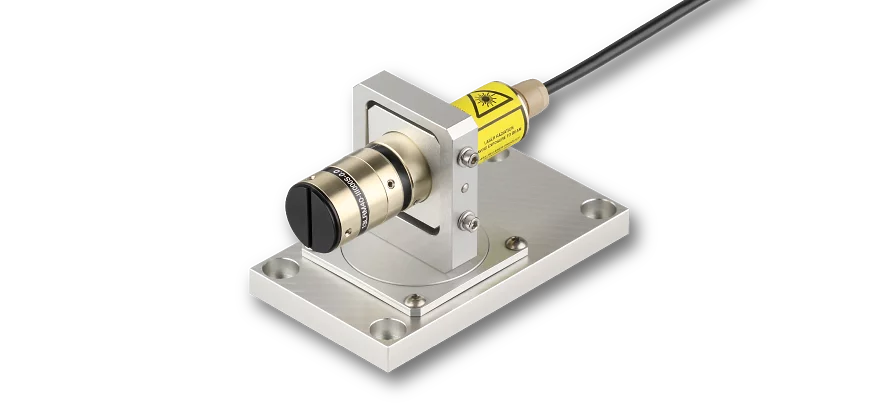

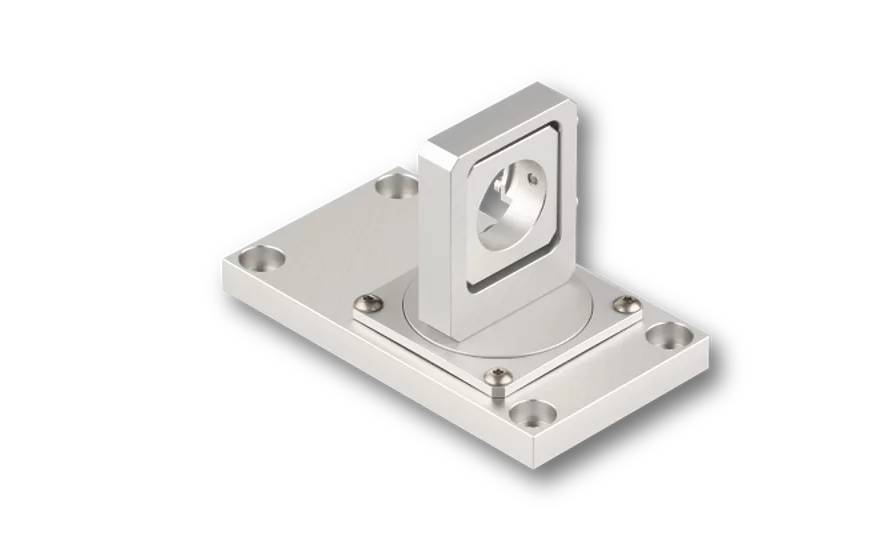

The Mounting Console of type 13MK-25-3D-M6 with flat base plate allows a precise and mechanically rugged alignment of Laser Modules with Ø 25/28 mm. The lasers are held by means of a clamp collar in such a way that the focussing and focus locking mechanism remain accessible.The Mounting Console is designed for all lasers with Ø 25/28 mm and provide 3 degrees of freedom:
- Drilling pattern 50 x 100 mm, Ø 6.5 mm
- Rotation (0 - 360°) around the optical axis
- In-plane rotation (0 - 360°)
- Tilt (inclination, ± 5°)
