FeaturesSemi-telecentric laser line with constant line length of 2.4 mm.
- Line length: 2.4 mm
- Line width: 64 µm
- Wavelength: 450 nm
- Working distance: 491 mm
- Low noise laser module (0.1 % RMS, @<1 MHz)

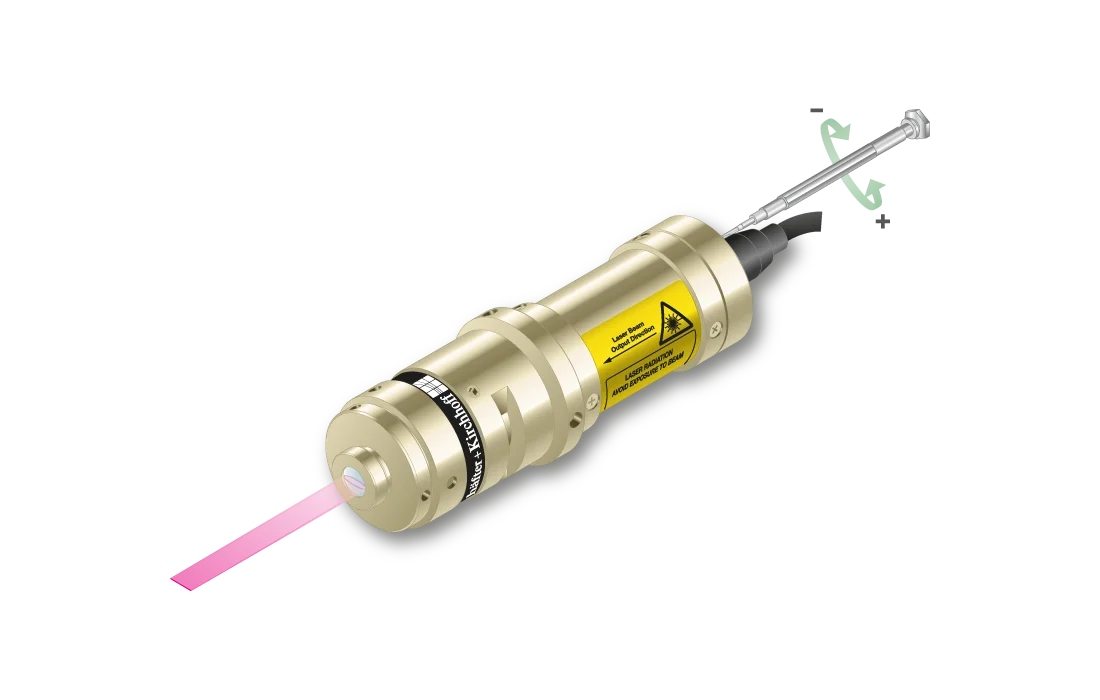

Semi-telecentric Micro Line Generator
The laser diode beam source type LNC-5LT-500-2+56CM-450-25-O06-A7.5-HP-4 produces a semi-telecentric laser line with 2.4 mm line length. In this case the line length is given on the 13.5%-level. The intensity profile is Gaussian in line direction and the line is truncated at 4.8 mm. The line width is constant along the laser line. Across the laser line the intensity distribution is Gaussian.
The laser has integrated electronics type HP with micro-controller for control of the laser output power. It is a low noise laser source (0.1 % RMS,@<1 MHz) with reduced coherence length and operates mode-hopping free. Due to the reduced coherence length the speckle contrast might be lowered. Please note that this effect is smaller for smaller lines and spots. The output power can be controlled using the modulation input ports (TTL and analog) or manually using the potentiometer.
For this laser type the working distance is fixed. A fine-adjustment of the distance between laser and target is recommended for fine-focusing in order to achieve minimal line width.
